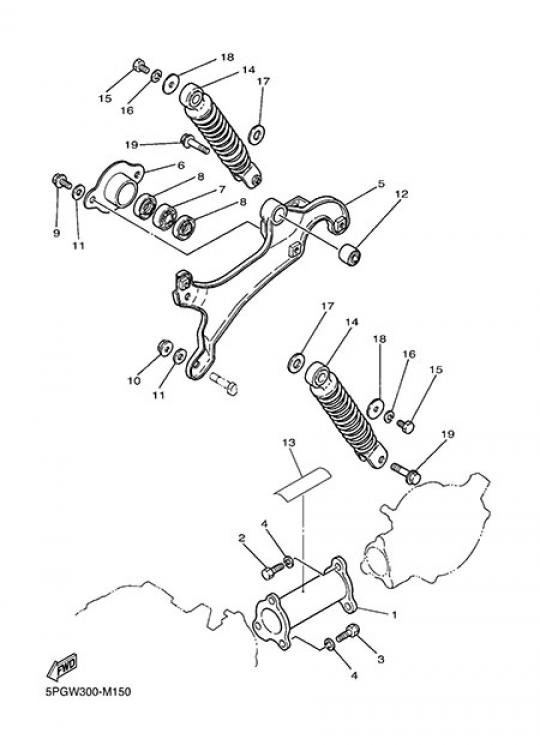

REAR ARM & SUSPENSION

Volver al despiece completo

#	Ref.	unds.	Precio/unidad
1	3L7221100098 REAR ARM COMP.	1	54,99 €	+
2	901010846100 BOLT	1	1,65 €	+
4	929070810000 WASHER, SPRING	1	0,42 €	+
5	4X4221101000 REAR ARM COMP.	1	93,10 €	+
6	4J2221740100 END 1	1	26,91 €	+
7	933062011700 BEARING	1	26,37 €	+
8	931062401800 OIL SEAL	1	5,63 €	+
9	901050806600 BOLT, FLANGE	1	1,28 €	+
10	957070850000 NUT, FLANGE	1	2,05 €	+
11	902010832600 WASHER, PLATE	1	2,30 €	+
12	164222160000 BUSH, REAR SHOCK ABSORBER	1	6,71 €	+
13	3RV21668A000 ETIQUETA DE FRANJA	1	1,97 €	+
14	3PT222101000 AMORTIGUADOR TRASERO COMPLETO	1	132,06 €	+
15	970270601600 BOLT, HEXAGON	1	0,49 €	+
16	929070610000 WASHER, SPRING	1	0,49 €	+
17	90201126A700 WASHER, PLATE	1	2,05 €	+
18	90201067A000 WASHER, PLATE	1	3,43 €	+
19	901050812100 BOLT, FLANGE	1	1,50 €	+
