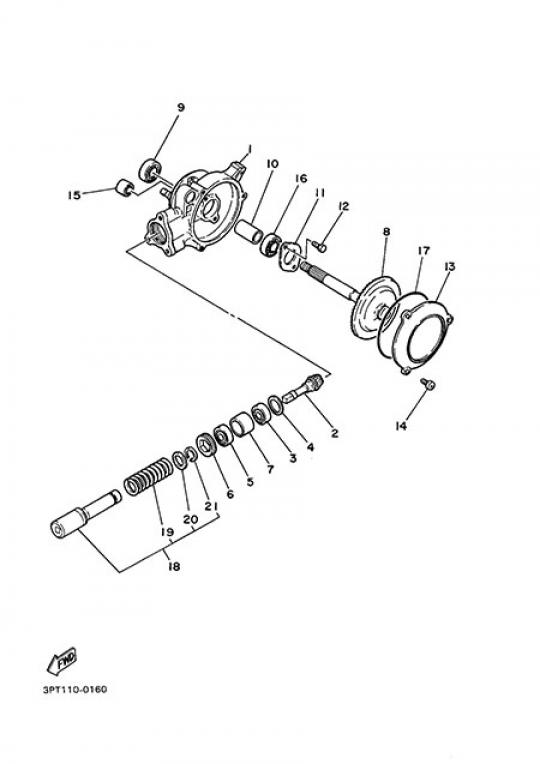

# | Ref. | unds. | Precio/unidad | |
---|---|---|---|---|
1 |
4J2461510100 ENCAJE EJE IMPULSOR |
1 | 190,02 € | + |
2 |
59M461210000 GEAR, DRIVE PINION |
1 | 93,70 € | + |
3 |
933062011100 BEARING |
1 | 22,70 € | + |
4 |
3L5461270000 SHIM, DRIVE PINION |
1 | 3,93 € | + |
5 |
933062011100 BEARING |
1 | 22,70 € | + |
6 |
901493513300 SCREW |
1 | 6,34 € | + |
7 |
905602518500 SPACER |
1 | 4,35 € | + |
8 |
4J2461100100 RING GEAR COMP. |
1 | 203,59 € | + |
9 |
933062020300 BEARING |
1 | 37,87 € | + |
10 |
905601531500 SPACER |
1 | 9,13 € | + |
11 |
3L5461140000 PLATE, COVER |
1 | 7,62 € | + |
12 |
970170601600 BOLT |
1 | 0,49 € | + |
13 |
4J2461540200 COVER, HOUSING |
1 | 44,90 € | + |
14 |
950270601600 BOLT, FLANGE |
1 | 1,97 € | + |
15 |
164222160000 BUSH, REAR SHOCK ABSORBER |
1 | 6,71 € | + |
16 |
933062020500 BEARING |
1 | 12,73 € | + |
17 |
93211066A900 O-RING |
1 | 5,80 € | + |
18 |
3L7461710000 SHAFT DRIVE ASSY |
1 | 69,50 € | + |
19 |
905016055600 .SPRING, COMPRESSION |
1 | 15,35 € | + |
20 |
15L184730000 .RETAINER, SPRING |
1 | 5,10 € | + |
21 |
934401713800 .CIRCLIP |
1 | 1,55 € | + |
