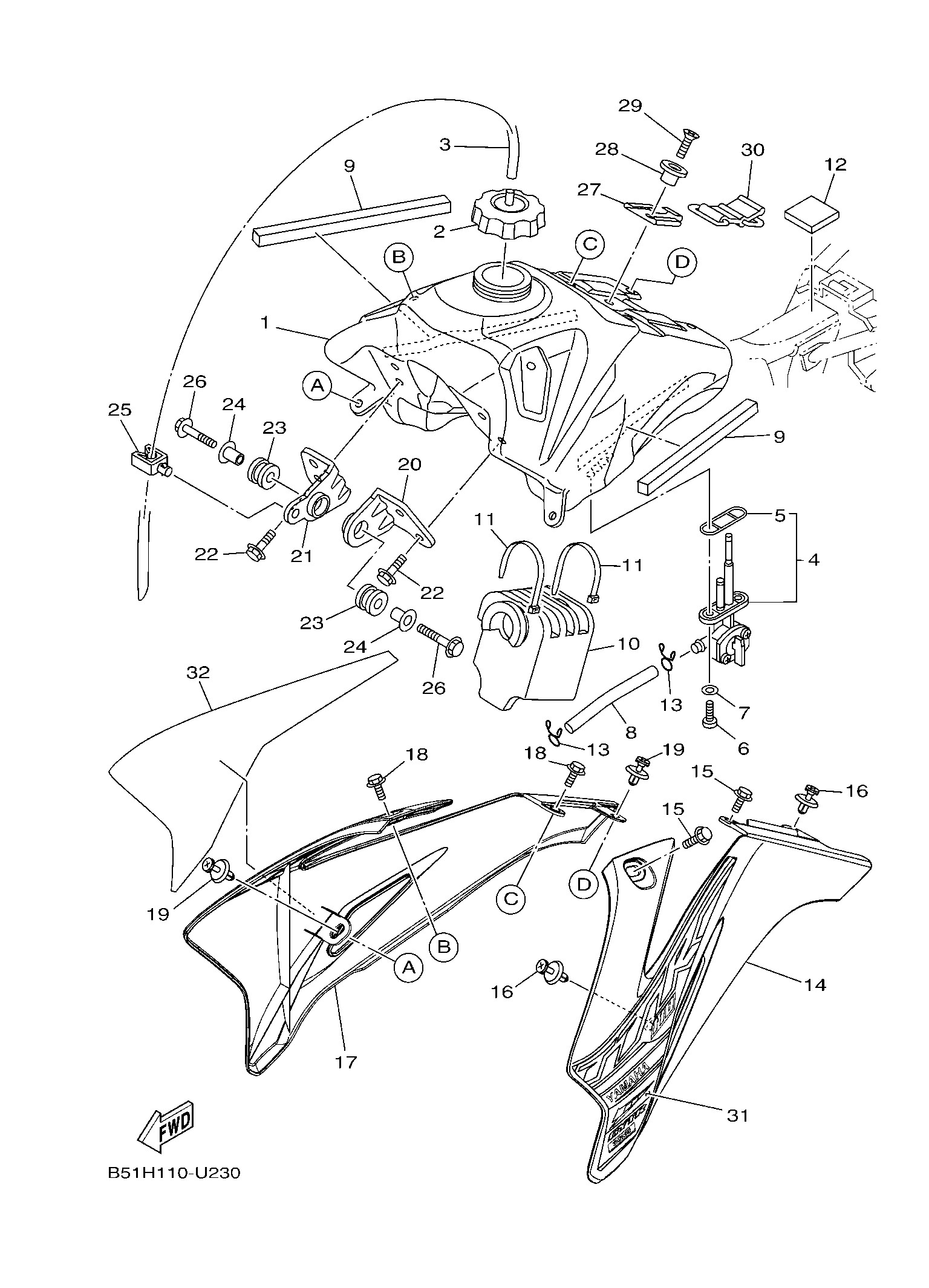

FUEL TANK

Volver al despiece completo

#	Ref.	unds.	Precio/unidad
1	5B6241101000 FUEL TANK COMP.	1	254,00 €	+
2	2FJ246101000 TAPA COMPLETA	1	57,34 €	+
3	5B6218261000 PIPE, BREATHER	1	7,50 €	+
4	1P6245001000 FUEL COCK ASSY 1	1	222,41 €	+
5	1P6245121000 .GASKET	1	8,21 €	+
6	985070601400 SCREW, PAN HEAD	1	0,49 €	+
7	929070660000 WASHER, PLATE	1	0,49 €	+
8	5B6243111000 PIPE, FUEL 1	1	1,65 €	+
9	5B62411J0000 DAMPER, SIDE COVER	1	3,16 €	+
10	5B6241810000 DAMPER, LOCATING 1	1	21,29 €	+
11	904651315200 CLAMP	1	1,73 €	+
12	2X6241830000 DAMPER, LOCATING 3	1	3,16 €	+
13	904670900600 CLIP	1	0,59 €	+
14	5B62137A0000 SCOOP AIR ASSY. 1	1	72,95 €	+
15	901050606400 BOLT, FLANGE	1	0,59 €	+
16	902690707600 RIVET	1	1,24 €	+
17	5B62137B0000 SCOOP AIR ASSY. 2	1	72,95 €	+
18	901050606400 BOLT, FLANGE	1	0,59 €	+
19	902690707600 RIVET	1	1,24 €	+
20	5B6241570000 STAY, FUEL TANK 1	1	16,91 €	+
21	5B6241580000 STAY, FUEL TANK 2	1	16,91 €	+
22	958020601000 BOLT, FLANGE	1	Obsoleta
23	904801829000 GROMMET	1	5,10 €	+
24	90387066J100 COLLAR	1	6,07 €	+
25	904641300300 CLAMP	1	1,73 €	+
26	958020603000 BOLT, FLANGE	1	0,75 €	+
27	5B6241160000 STAY, FUEL TANK 2	1	14,26 €	+
28	4EW2412F0000 BRACKET, SEAT	1	1,88 €	+
29	987020602500 SCREW, FLAT HEAD	1	0,42 €	+
30	5B6241730000 BAND, TANK FITTING 1	1	13,29 €	+
31	B51242444000 CALCOMANIA DEPOSITO COMBUST.1	1	28,39 €	+
32	B51242454000 CALCOMANIA DEPOSITO COMBUST.2	1	28,39 €	+
