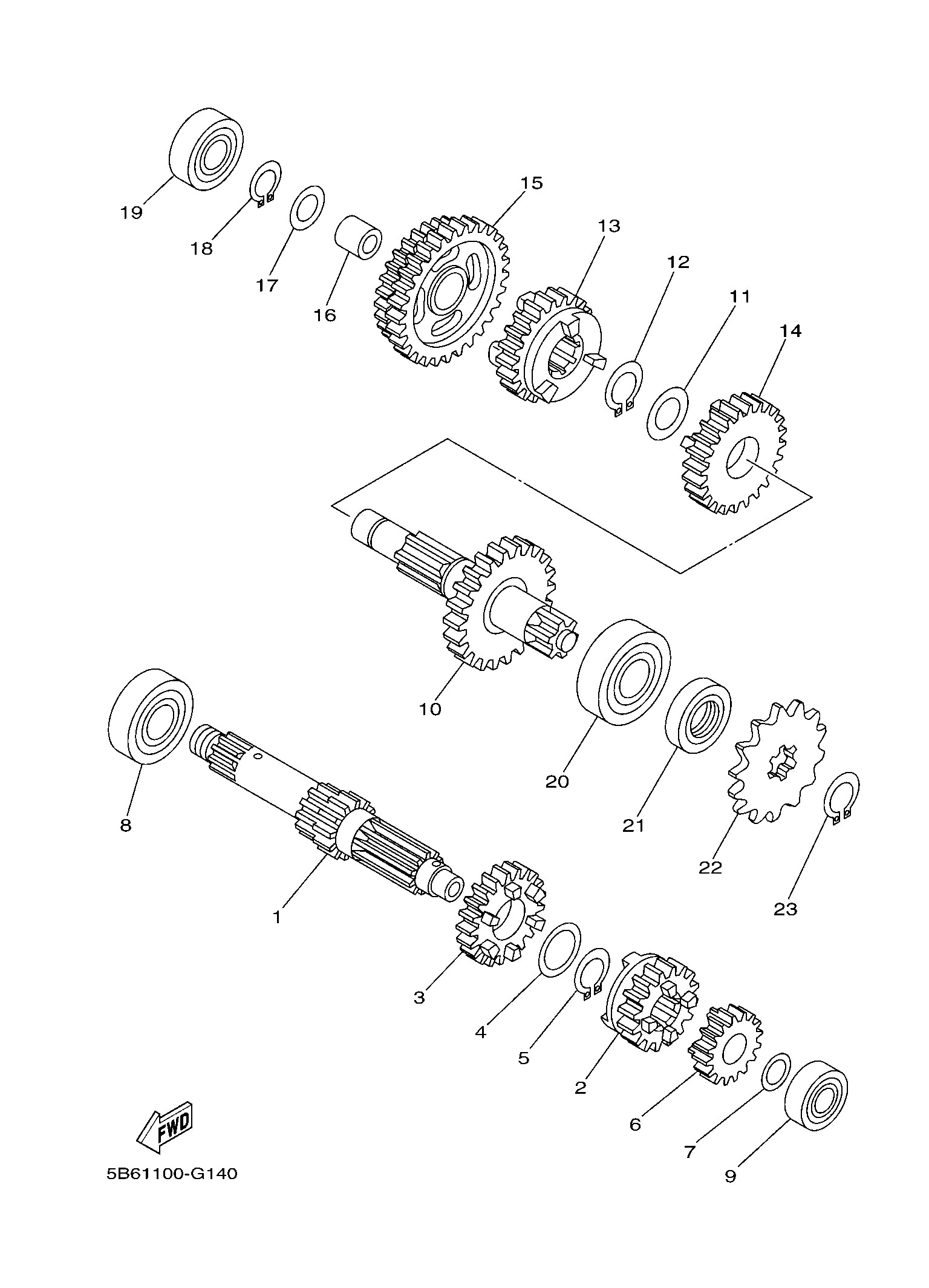

TRANSMISSION

Volver al despiece completo

#	Ref.	unds.	Precio/unidad
1	4STE74110000 AXLE, MAIN (12T)	1	309,90 €	+
2	5TPE71310000 GEAR, 3RD PINION (21T)	1	72,19 €	+
3	5TPE71410000 GEAR, 4TH PINION (21T)	1	54,28 €	+
4	902012026600 WASHER, PLATE (T=1.0)	1	3,97 €	+
5	934102003800 CIRCLIP	1	1,06 €	+
6	5TPE71210000 GEAR, 2ND PINION (17T)	1	59,85 €	+
7	902011216600 WASHER, PLATE	1	2,30 €	+
8	93306203YR00 BEARING	1	12,63 €	+
9	93306001Y700 BEARING	1	12,63 €	+
10	5TPE74020000 DRIVE AXLE ASSY (33T)	1	84,16 €	+
11	902012026600 WASHER, PLATE (T=1.0)	1	3,97 €	+
12	934102003800 CIRCLIP	1	1,06 €	+
13	5TPE72410000 GEAR, 4TH WHEEL (23T)	1	76,70 €	+
14	5TPE72310000 GEAR, 3RD WHEEL (29T)	1	60,03 €	+
15	5TPE72110000 GEAR, 1ST WHEEL (30T/38T)	1	62,37 €	+
16	903871503D00 COLLAR	1	Obsoleta
17	902011570000 WASHER, PLATE	1	3,38 €	+
18	990091540000 CIRCLIP	1	2,47 €	+
19	93306202YW00 BEARING	1	15,22 €	+
20	93306204YC00 BEARING	1	15,04 €	+
21	931022089200 OIL SEAL	1	2,79 €	+
22	938121481400 SPROCKET, DRIVE (14T)	1	37,58 €	+
23	934102003800 CIRCLIP	1	1,06 €	+
