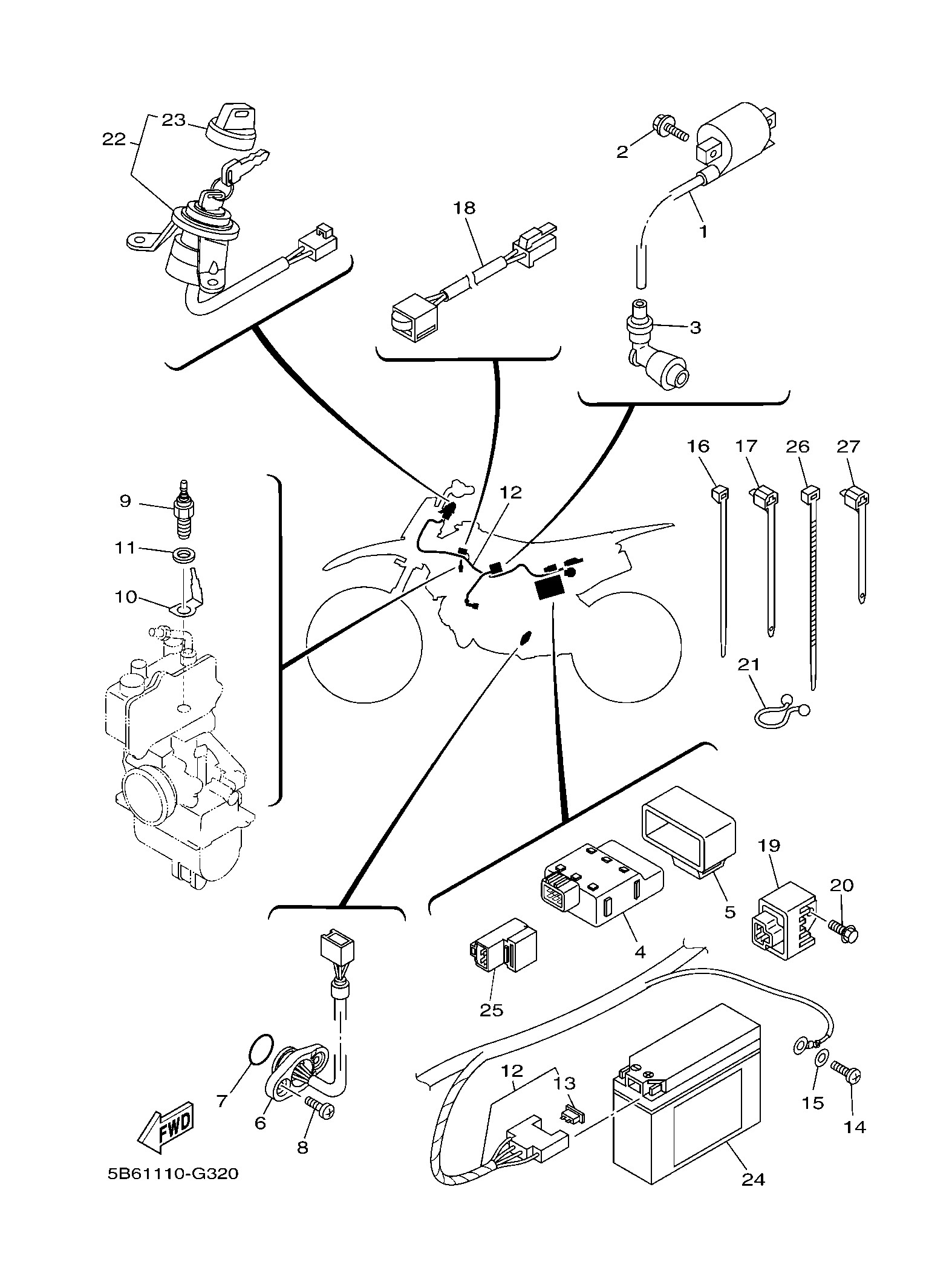

ELECTRICAL 1

Volver al despiece completo

#	Ref.	unds.	Precio/unidad
1	4KJ823101000 BOBINA DE ENCENDIDO COMPLETA	1	62,39 €	+
2	950220601600 BOLT, FLANGE	1	0,49 €	+
3	4BP823700000 TAPON DE BUJIA COMPLT	1	32,52 €	+
4	5B6855400000 C.D.I. UNIT ASSY	1	297,06 €	+
5	3MB855460000 BAND	1	11,15 €	+
6	3S0H25400000 NEUTRAL SWITCH ASSY	1	27,56 €	+
7	93210228G100 O-RING	1	4,35 €	+
8	985070501000 SCREW, PAN HEAD	1	0,49 €	+
9	5FU837902000 HEATER ASSY (30W)	1	42,12 €	+
10	5FU821030000 .TERMINAL 1	1	2,89 €	+
11	902010801600 WASHER, PLATE	1	2,05 €	+
12	5B6825900100 WIRE HARNESS ASSY	1	172,43 €	+
13	42X821510000 .FUSE (10A-BL)	1	4,77 €	+
14	978800601200 SCREW, PAN HEAD	1	1,24 €	+
15	929900660000 WASHER, PLATE	1	0,49 €	+
16	904651315200 CLAMP	1	1,73 €	+
17	9046513M2400 CLAMP	1	3,75 €	+
18	B51825600000 THERMO SWITCH ASSY	1	27,36 €	+
19	3LA819600100 RECTIFIER & REGULATOR ASSY	1	134,67 €	+
20	950220601200 BOLT, FLANGE	1	0,37 €	+
21	904641603900 CLAMP	1	0,37 €	+
22	5B6825100100 MAIN SWITCH ASSY	1	146,76 €	+
23	3HN825790000 .CAP, KEY	1	9,55 €	+
24	4JS821001000 BATTERY ASSY (GS YUASA GT4B-5)	1	72,92 €	+
25	29U819509300 RELAY ASSY (ACA12115-1)	1	79,27 €	+
26	1UA825910000 BAND	1	1,73 €	+
27	9046513M3900 CLAMP	1	2,30 €	+
