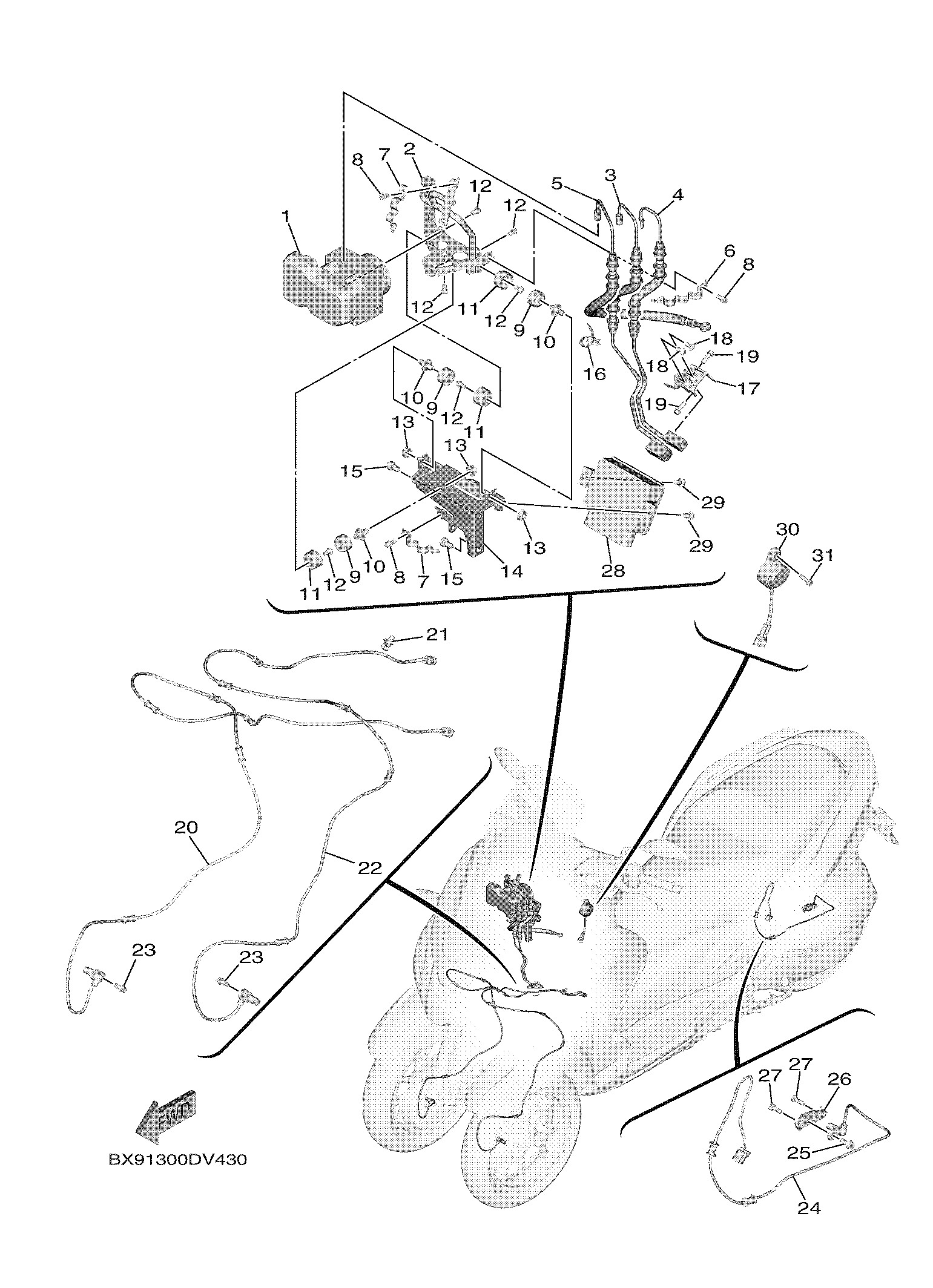

Inicio > Modelos Yamaha > MAXI SCOOTERS > TRICITY 300 > 2022 > Electrical 3
Volver al despiece completo

# Ref. unds. Precio/unidad
1 BX9859300900
HYDRAULIC UNIT ASSY 		1 1.193,96 € +
2 BX9F175T0000
BRACKET 1 		1 15,81 € +
3 BX9F584B0000
HOSE, BRAKE 		1 61,47 € +
4 BX9F584C0000
HOSE, BRAKE 		1 61,47 € +
5 BX9F584E0000
BRAKE HOSE ASSY 5 		1 61,47 € +
6 2CMF58750000
HOLDER, BRAKE HOSE 1 		1 3,48 € +
7 2CMF58760000
HOLDER, BRAKE HOSE 2 		1 2,69 € +
8 95E320601200
BOLT, FLANGE DEEP RECESS 		1 0,17 € +
9 5CG851130000
DAMPER 		1 7,04 € +
10 5CG2535E0000
BOLT 		1 4,39 € +
11 3P6859160000
CAP, DAMPER 		1 6,12 € +
12 920120601000
BOLT, BUTTON HEAD 		1 0,69 € +
13 957020850000
NUT, FLANGE 		1 1,33 € +
14 BX9F131L0000
BRACKET 12 		1 2,69 € +
15 913120801200
BOLT, HEXAGON SOCKET HEAD 		1 1,92 € +
16 904643000900
CLAMP 		1 3,01 € +
17 BX9H55250000
COVER 		1 9,13 € +
18 920120601000
BOLT, BUTTON HEAD 		1 0,69 € +
19 95E320601600
BOLT, FLANGE DEEP RECESS 		1 0,33 € +
20 BX9859700100
WHEEL SENSOR ASSY, FRONT 		1 102,33 € +
21 904643001000
CLAMP 		1 1,06 € +
22 BX9859701100
WHEEL SENSOR ASSY, FRONT 		1 102,33 € +
23 95E320601400
BOLT, FLANGE DEEP RECESS 		1 10,19 € +
24 B74H59800100
WHEEL SENSOR ASSY, REAR 		1 102,33 € +
25 95D020601600
BOLT, FLANGE DEEP RECESS 		1 0,22 € +
26 B74H51120000
BRACKET, REFLECTOR 1 		1 3,43 € +
27 913120601600
BOLT, HEXAGON SOCKET HEAD 		1 0,22 € +
28 BEDH59400000
ELECTRONIC CONTROL UNIT ASSY 		1 590,43 € +
29 95D320601200
BOLT, FLANGE DEEP RECESS 		1 1,28 € +
30 BX9H33830000
BUZZER 		1 22,10 € +
31 901190580400
BOLT, WITH WASHER 		1 0,59 € +
