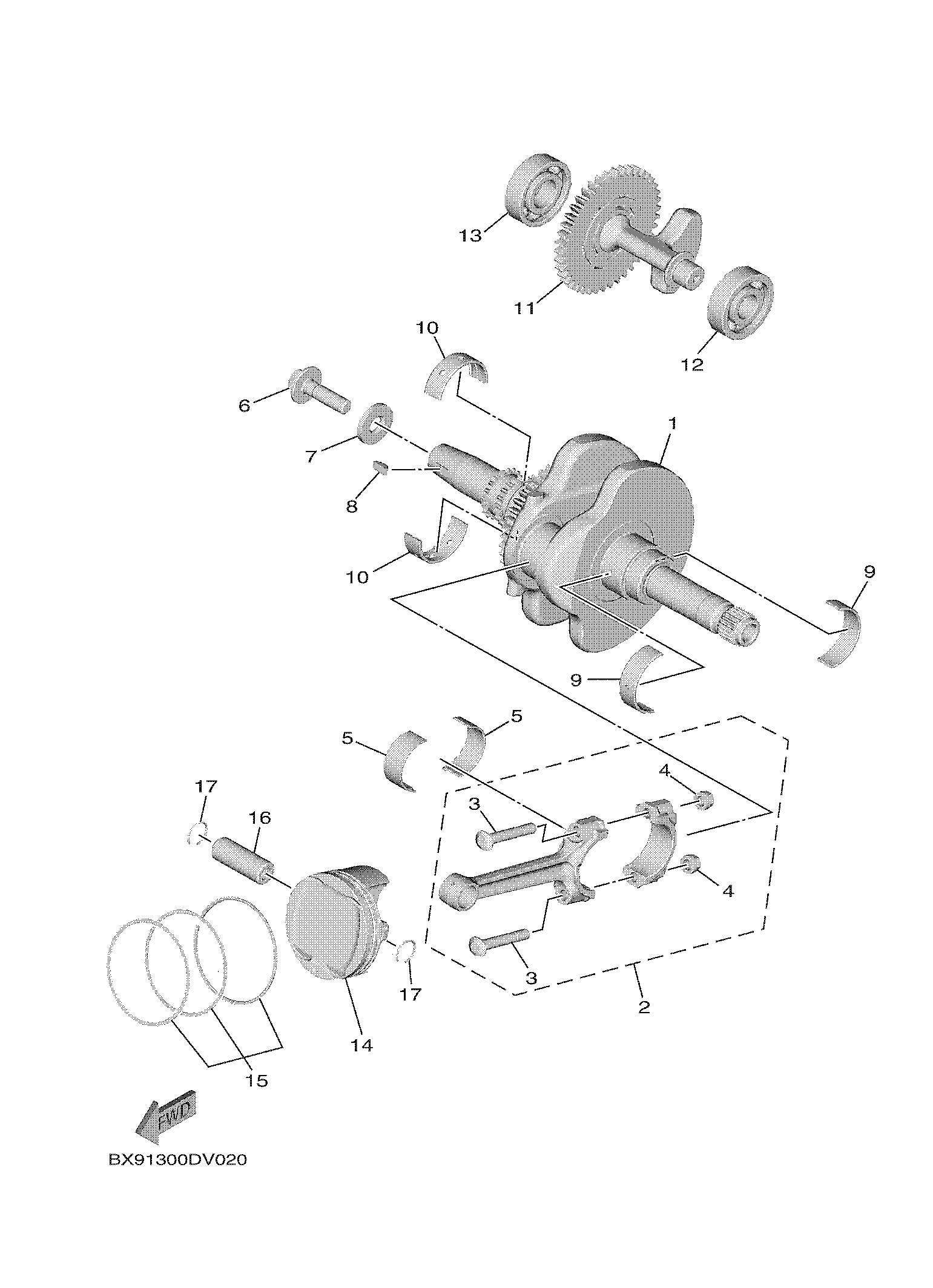

Inicio > Modelos Yamaha > MAXI SCOOTERS > TRICITY 300 > 2022 > Crankshaft & piston
Volver al despiece completo

# Ref. unds. Precio/unidad
1 B74E14001000
CRANKSHAFT ASSY 		1 346,32 € +
2 B74116500000
CONNECTING ROD ASSY 		1 132,04 € +
3 2C0116540000
.BOLT, CONNECTING ROD 		1 5,56 € +
4 901790700100
.NUT 		1 4,14 € +
5 B74116563000
PLANE BEARING, CONNECTING ROD 		1 15,87 € +
5 B74116562000
PLANE BEARING, CONNECTING ROD 		1 15,87 € +
5 B74116561000
PLANE BEARING, CONNECTING ROD 		1 15,87 € +
5 B74116560000
PLANE BEARING, CONNECTING ROD 		1 15,87 € +
6 901051088300
BOLT, FLANGE 		1 9,52 € +
7 902011084800
WASHER, PLATE 		1 3,48 € +
8 902800501300
KEY, WOODRUFF 		1 9,10 € +
9 B74114165000
PLANE BEARING, CRANKSHAFT 1 		1 23,81 € +
9 B74114164000
PLANE BEARING, CRANKSHAFT 1 		1 23,81 € +
9 B74114163000
PLANE BEARING, CRANKSHAFT 1 		1 23,81 € +
9 B74114162000
PLANE BEARING, CRANKSHAFT 1 		1 23,81 € +
9 B74114161000
PLANE BEARING, CRANKSHAFT 1 		1 23,81 € +
9 B74114160000
PLANE BEARING, CRANKSHAFT 1 		1 23,81 € +
9 B7411416A000
PLANE BEARING, CRANKSHAFT 1 		1 23,81 € +
10 B74114175000
PLANE BEARING, CRANKSHAFT 2 		1 23,81 € +
10 B74114174000
PLANE BEARING, CRANKSHAFT 2 		1 23,81 € +
10 B74114173000
PLANE BEARING, CRANKSHAFT 2 		1 23,81 € +
10 B74114172000
PLANE BEARING, CRANKSHAFT 2 		1 23,81 € +
10 B74114171000
PLANE BEARING, CRANKSHAFT 2 		1 23,81 € +
10 B74114170000
PLANE BEARING, CRANKSHAFT 2 		1 23,81 € +
10 B7411417A000
PLANE BEARING, CRANKSHAFT 2 		1 23,81 € +
11 B74E15000000
BALANCER ASSY 		1 207,80 € +
12 93306303YT00
BEARING 		1 10,95 € +
13 93306204XV00
BEARING 		1 10,95 € +
14 B74E16310100
PISTON (STD) 		1 131,47 € +
15 B74E16030100
PISTON RING SET (STD) 		1 60,84 € +
16 B74E16330000
PIN, PISTON 		1 15,87 € +
17 934501712900
CIRCLIP 		5 1,26 € +
