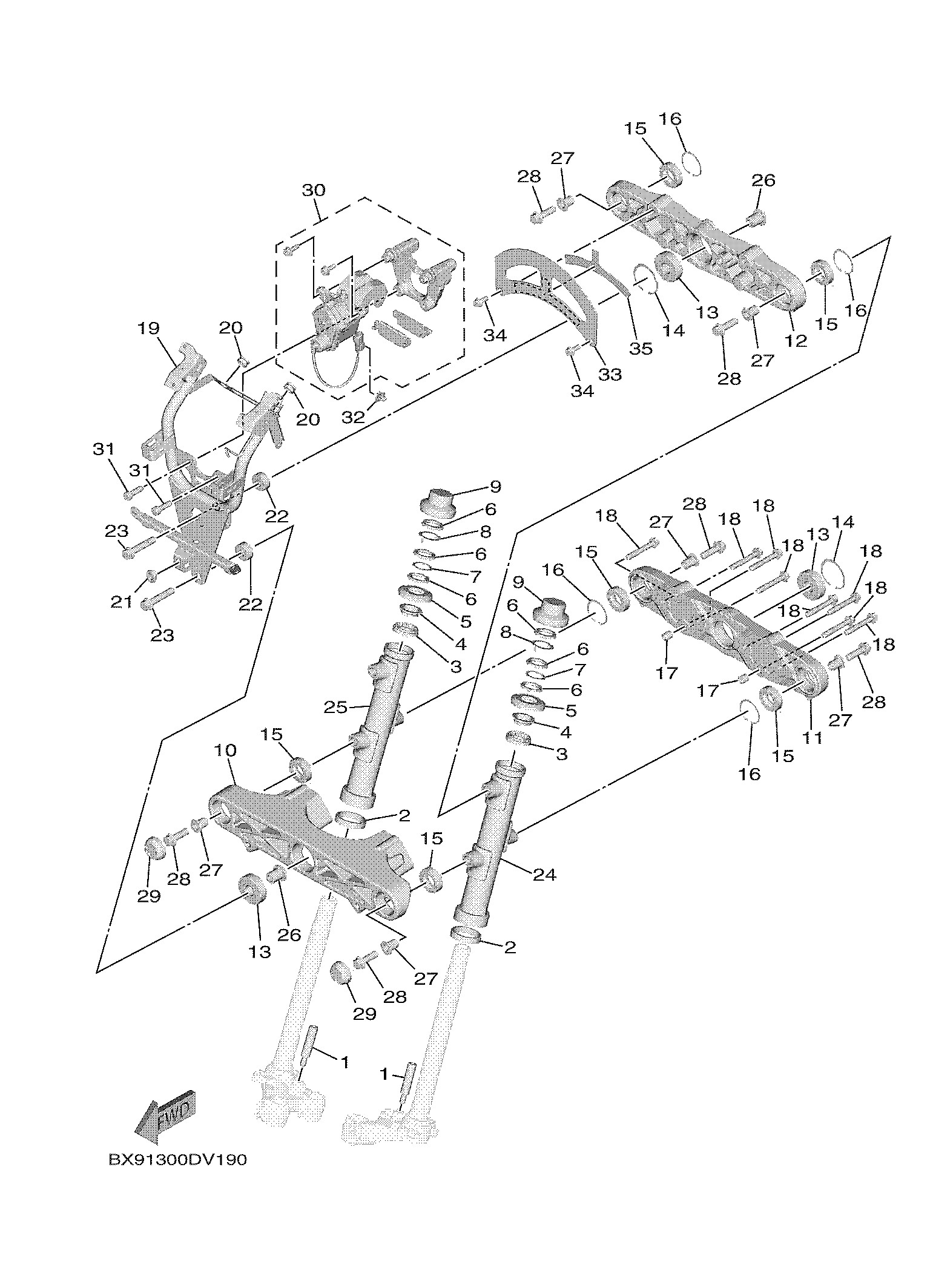

Inicio > Modelos Yamaha > MAXI SCOOTERS > TRICITY 300 > 2020 > Steering
Volver al despiece completo

# Ref. unds. Precio/unidad
1 BX9F34320000
STOPPER, STEERING 1 		1 4,61 € +
2 BX9E75540000
RETAINER, BEARING 		1 17,09 € +
3 5P0F38730000
BEARING, STEERING UPPER 		1 16,67 € +
4 5P0F38750000
BEARING, STEERING LOWER 		1 9,55 € +
5 BX9F34160000
COVER, BALL RACE 2 		1 1,92 € +
6 901793080000
NUT 		1 5,43 € +
7 902023023500
WASHER, PLATE 		1 5,36 € +
8 52SF34180000
WASHER, SPECIAL 		1 1,28 € +
9 BX9F34150000
COVER, BALL RACE 1 		1 10,51 € +
10 BX9F33610000
ARM 1 		1 177,14 € +
11 BX9F33710000
ARM 2 		1 110,16 € +
12 BX9F33750000
ARM 3 		1 110,16 € +
13 93306372X900
BEARING 		1 14,83 € +
14 934206107100
CIRCLIP 		1 5,36 € +
15 93306303YV00
.BEARING 		1 12,29 € +
16 990094750000
.CIRCLIP 		1 4,72 € +
17 995301401600
PIN, DOWEL 		1 3,60 € +
18 95D321006500
BOLT, FLANGE DEEP RECESS 		1 1,28 € +
19 BX9F33250000
PLATE, FRONT ARM 		1 85,33 € +
20 2CMH35130000
DAMPER 		1 0,49 € +
21 904800155800
GROMMET 		1 2,69 € +
22 BX9F33740000
COLLAR 2 		1 3,16 € +
23 901051281200
BOLT, FLANGE 		1 1,28 € +
24 BX9F13110000
PIPE STEERING HEAD 		1 110,16 € +
25 BX9F13111000
PIPE STEERING HEAD 		1 110,16 € +
26 BX9F33730000
COLLAR 1 		1 1,92 € +
27 903871287000
COLLAR 		1 1,92 € +
28 901051281000
BOLT, FLANGE 		1 1,28 € +
29 BX9F319U0000
CAP 		1 3,93 € +
30 BX9F57300000
CALIPER BODY COMP.1 		1 157,48 € +
31 913121003000
BOLT, HEXAGON SOCKET HEAD 		1 0,59 € +
32 BX9825940000
CLAMP 		1 1,28 € +
33 BX9F581A0000
PLATE, DISK 		1 27,51 € +
34 90105088H800
BOLT, FLANGE 		1 1,28 € +
35 BX9234260000
DAMPER 		1 6,54 € +
