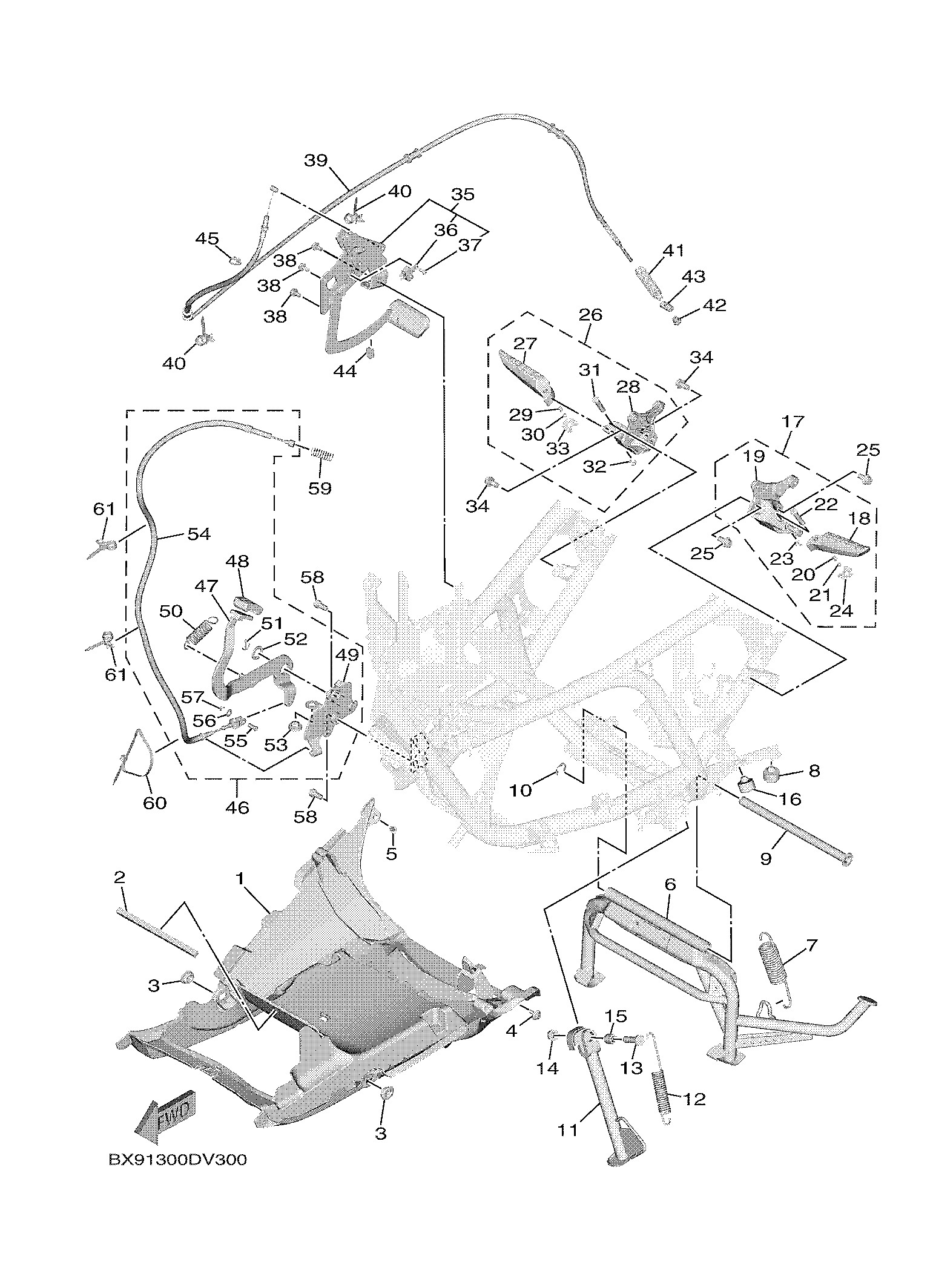

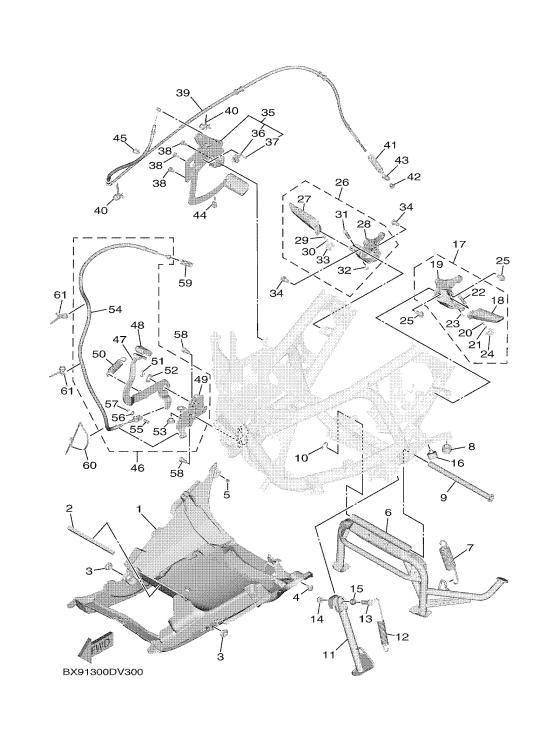

| # | Ref. | unds. | Precio/unidad | |
|---|---|---|---|---|
| 1 |
BX9F83850000 COVER, UNDER |
1 | 53,74 € | + |
| 2 |
905201082500 DAMPER, PLATE |
1 | 0,37 € | + |
| 3 |
904800186800 GROMMET |
1 | 2,69 € | + |
| 4 |
90109068B500 BOLT |
1 | 1,19 € | + |
| 5 |
902690681600 RIVET |
1 | 1,24 € | + |
| 6 |
BX9F71110000 STAND, MAIN |
1 | 102,79 € | + |
| 7 |
905064080500 SPRING, TENSION |
1 | 5,94 € | + |
| 8 |
5VVF72140000 STOPPER |
1 | 0,69 € | + |
| 9 |
B74F72610000 SHAFT |
1 | 16,41 € | + |
| 10 |
934301280900 CIRCLIP |
1 | 1,13 € | + |
| 11 |
BX9F73110000 STAND, SIDE |
1 | 65,52 € | + |
| 12 |
905063281300 SPRING, TENSION |
1 | 5,30 € | + |
| 13 |
901011083000 BOLT |
1 | 1,65 € | + |
| 14 |
956021020000 NUT, SELF-LOCKING |
1 | 3,43 € | + |
| 15 |
903871084900 COLLAR |
1 | 1,13 € | + |
| 16 |
5VVF72140000 STOPPER |
1 | 0,69 € | + |
| 17 |
B74F74300000 REAR FOOTREST ASSY 1 |
1 | 48,02 € | + |
| 18 |
2DPF74310100 .FOOTREST, REAR 1 |
1 | 16,35 € | + |
| 19 |
B74F741L0000 .BRACKET 4 |
1 | 27,24 € | + |
| 20 |
905011274300 SPRING, COMPRESSION |
1 | 4,19 € | + |
| 21 |
935010483000 .BALL |
1 | 2,89 € | + |
| 22 |
917020803800 .PIN, CLEVIS |
1 | 4,77 € | + |
| 23 |
914022501500 PIN, COTTER |
1 | 1,19 € | + |
| 24 |
B74F74370000 .WASHER, SPECIAL |
1 | 1,01 € | + |
| 25 |
95D320801600 BOLT, FLANGE DEEP RECESS |
1 | 0,22 € | + |
| 26 |
B74F74400000 REAR FOOTREST ASSY 2 |
1 | 48,02 € | + |
| 27 |
2DPF74410100 .FOOTREST, REAR 2 |
1 | 16,35 € | + |
| 28 |
B74F742L0000 .BRACKET 5 |
1 | 27,24 € | + |
| 29 |
905011274300 SPRING, COMPRESSION |
1 | 4,19 € | + |
| 30 |
935010483000 .BALL |
1 | 2,89 € | + |
| 31 |
917020803800 .PIN, CLEVIS |
1 | 4,77 € | + |
| 32 |
914022501500 PIN, COTTER |
1 | 1,19 € | + |
| 33 |
B74F74370000 .WASHER, SPECIAL |
1 | 1,01 € | + |
| 34 |
95D320801600 BOLT, FLANGE DEEP RECESS |
1 | 0,22 € | + |
| 35 |
BX9F56900000 PARKING LEVER ASSY |
1 | 55,09 € | + |
| 36 |
B6HH25300000 .STOP SWITCH ASSY |
1 | 9,13 € | + |
| 37 |
976020431000 .SCREW, PAN HEAD WITH WASHER |
1 | Obsoleta | |
| 38 |
95D320601200 BOLT, FLANGE DEEP RECESS |
1 | 1,28 € | + |
| 39 |
BX9F637E0000 CABLE, CONTROL 1 |
1 | 24,90 € | + |
| 40 |
904641281000 CLAMP |
1 | 0,17 € | + |
| 41 |
905011680900 SPRING, COMPRESSION |
1 | 7,82 € | + |
| 42 |
901790683500 NUT |
1 | 1,24 € | + |
| 43 |
902491200800 PIN |
1 | 3,43 € | + |
| 44 |
BX9F11320000 SUPPORTER |
1 | 1,28 € | + |
| 45 |
9046513M1100 CLAMP |
1 | 1,55 € | + |
| 46 |
BX9F72000000 PEDAL, BRAKE |
1 | 71,25 € | + |
| 47 |
BX9F72110000 .PEDAL, BRAKE |
1 | 30,28 € | + |
| 48 |
BX9F72850000 .CAP |
1 | 9,13 € | + |
| 49 |
BX9F72630000 .BRACKET 1 |
1 | 18,33 € | + |
| 50 |
905062350100 .SPRING, TENSION |
1 | 4,88 € | + |
| 51 |
914023002500 .PIN, COTTER |
1 | 1,92 € | + |
| 52 |
929021460000 .WASHER, PLATE |
1 | 2,84 € | + |
| 53 |
B7DF47410000 .PAD, SEAT |
1 | 1,01 € | + |
| 54 |
BX9F63510000 .CABLE, BRAKE |
1 | 4,76 € | + |
| 55 |
902400607600 PIN, CLEVIS |
1 | 3,21 € | + |
| 56 |
929020620000 WASHER |
1 | 0,49 € | + |
| 57 |
914012001200 PIN, COTTER |
1 | 1,78 € | + |
| 58 |
913120801600 BOLT, HEXAGON SOCKET HEAD |
1 | 1,88 € | + |
| 59 |
905011281500 SPRING, COMPRESSION |
1 | 13,07 € | + |
| 60 |
904646580100 CLAMP |
1 | 0,69 € | + |
| 61 |
904641281000 CLAMP |
1 | 0,17 € | + |
