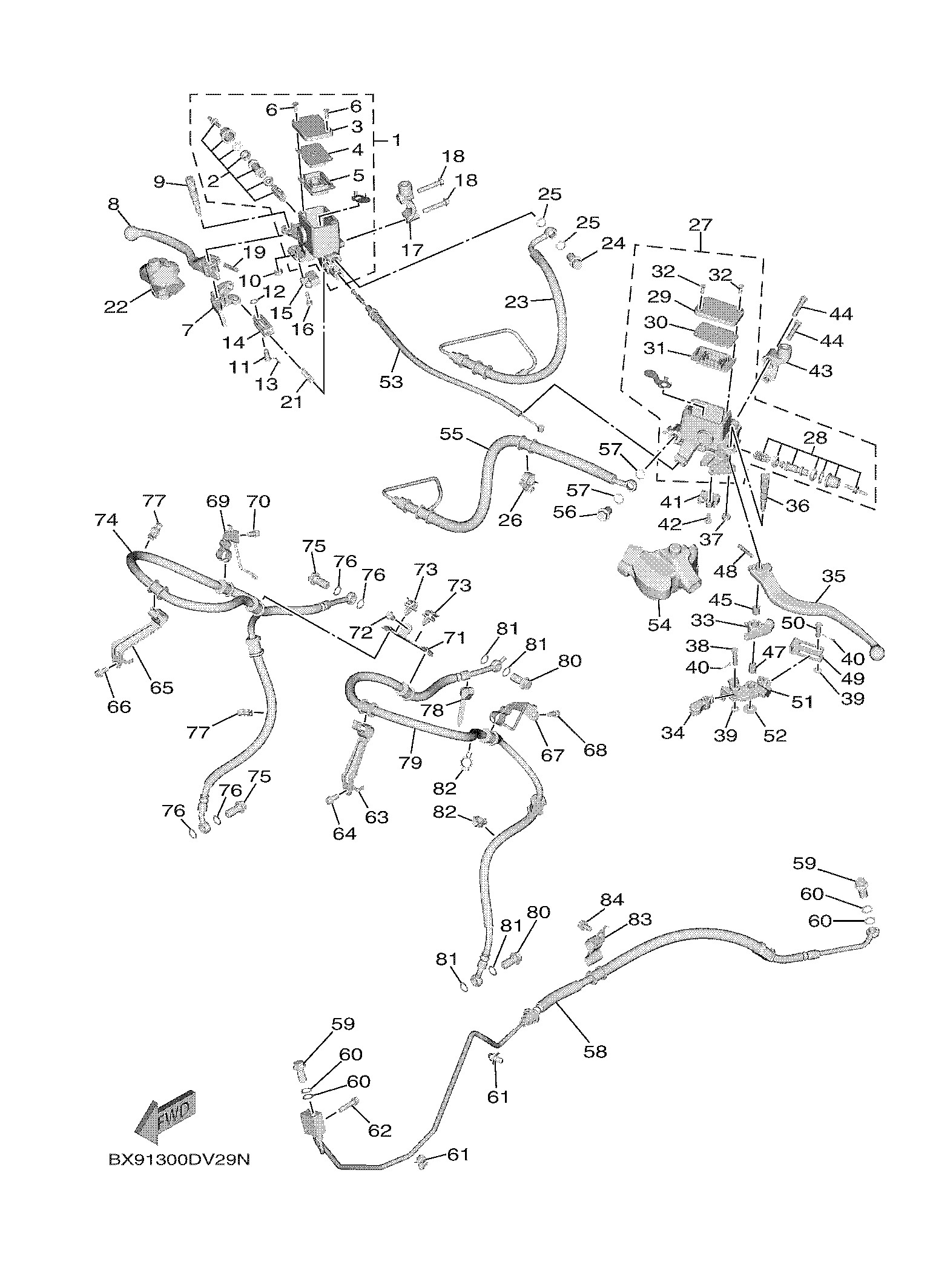

FRONT MASTER CYLINDER

Volver al despiece completo

#	Ref.	unds.	Precio/unidad
1	2CMF580A1000 MASTER CYLINDER SUB ASSY 2	1	92,47 €	+
2	2CMF58071000 .CYLINDER KIT, MASTER	1	23,71 €	+
3	2CMF58520000 .CAP, RESERVOIR	1	26,08 €	+
4	2CMF58550000 .BUSH,DIAPHRAGM	1	2,84 €	+
5	2CMF58540000 .DIAPHRAGM, RESERVOIR	1	3,32 €	+
6	987070401600 .SCREW, FLAT HEAD	1	0,49 €	+
7	2CMF61681000 KNOCKER	1	16,14 €	+
8	2CMH39220000 LEVER 2	1	20,76 €	+
9	2CMF589F1000 BOLT, LEVER	1	8,59 €	+
10	956020610000 NUT, SELF-LOCKING	1	3,65 €	+
11	9024006M1800 PIN, CLEVIS	1	6,44 €	+
12	90201061H100 WASHER, PLATE (T=0.5)	1	1,55 €	+
13	914022001200 PIN, COTTER	1	1,78 €	+
14	2CMF63470000 JOINT, CABLE	1	3,38 €	+
15	36Y829170000 STOP SWITCH ASSY	1	35,94 €	+
16	976020421400 SCREW, PAN HEAD WITH WASHER	1	0,42 €	+
17	2CMF58670000 BRACKET, MASTER CYLINDER	1	9,38 €	+
18	2CMF63320000 BOLT	1	1,73 €	+
19	905011031200 SPRING, COMPRESSION	1	2,47 €	+
21	905010780100 SPRING, COMPRESSION	1	3,93 €	+
22	2CMF637A0000 COVER, HANDLE LEVER 2	1	3,70 €	+
23	BX9F58720000 HOSE, BRAKE 1	1	53,62 €	+
24	904011081200 BOLT, UNION	1	1,33 €	+
25	902011011800 WASHER, PLATE	1	2,05 €	+
26	904641880800 CLAMP	1	0,59 €	+
27	BX9F580A0000 MASTER CYLINDER SUB ASSY 2	1	92,47 €	+
28	2CMF58070000 .CYLINDER KIT, MASTER	1	23,71 €	+
29	2CMF58520000 .CAP, RESERVOIR	1	26,08 €	+
30	2CMF58550000 .BUSH,DIAPHRAGM	1	2,84 €	+
31	2CMF58540000 .DIAPHRAGM, RESERVOIR	1	3,32 €	+
32	987070401600 .SCREW, FLAT HEAD	1	0,49 €	+
33	BX9F61680000 KNOCKER	1	5,21 €	+
34	BX9F56810000 EQUALIZER, BRAKE	1	3,93 €	+
35	BX9H39120000 LEVER 1	1	41,77 €	+
36	BX9F589F0000 BOLT, LEVER	1	0,59 €	+
37	53BF586F0000 NUT, COVER	1	1,24 €	+
38	917020602800 PIN, CLEVIS	1	1,88 €	+
39	90201061H100 WASHER, PLATE (T=0.5)	1	1,55 €	+
40	914022001200 PIN, COTTER	1	1,78 €	+
41	36Y839800100 FRONT STOP SWITCH ASSY	1	35,94 €	+
42	976020421400 SCREW, PAN HEAD WITH WASHER	1	0,42 €	+
43	BX9F58670000 BRACKET, MASTER CYLINDER	1	19,69 €	+
44	2CMF63320000 BOLT	1	1,73 €	+
45	BX9H39130000 COLLAR, LEVER 1	1	2,69 €	+
47	BX9H39230000 COLLAR, LEVER 2	1	2,69 €	+
48	905011031200 SPRING, COMPRESSION	1	2,47 €	+
49	BX9F63470000 JOINT, CABLE	1	3,93 €	+
50	917020602200 PIN, CLEVIS	1	1,28 €	+
51	BX9F61650000 LEVER 2	1	20,76 €	+
52	BX9F59380000 WASHER, SPRING	1	2,89 €	+
53	BX9F63410000 WIRE, BRAKE 1	1	7,72 €	+
54	BX9F63720000 COVER, HANDLE LEVER 1	1	9,01 €	+
55	BX9F58730000 HOSE, BRAKE 2	1	34,54 €	+
56	904011081200 BOLT, UNION	1	1,33 €	+
57	902011011800 WASHER, PLATE	1	2,05 €	+
58	BX9F58740000 HOSE, BRAKE 3	1	79,69 €	+
59	904011081200 BOLT, UNION	1	1,33 €	+
60	902011011800 WASHER, PLATE	1	2,05 €	+
61	904640780500 CLAMP	1	0,49 €	+
62	95E320602500 BOLT, FLANGE DEEP RECESS	1	0,22 €	+
63	BX9F58750000 HOLDER, BRAKE HOSE 1	1	4,24 €	+
64	95E370601200 BOLT, FLANGE DEEP RECESS	1	1,28 €	+
65	BX9F588G0000 HOLDER, BRAKE HOSE 6	1	4,24 €	+
66	95E370601200 BOLT, FLANGE DEEP RECESS	1	1,28 €	+
67	BX9F58870000 HOLDER, BRAKE HOSE 3	1	3,93 €	+
68	95E370601200 BOLT, FLANGE DEEP RECESS	1	1,28 €	+
69	BX9F588F0000 HOLDER, BRAKE HOSE 5	1	3,93 €	+
70	95E370601200 BOLT, FLANGE DEEP RECESS	1	1,28 €	+
71	BX9F612E0000 BRACKET	1	1,92 €	+
72	920170601000 BOLT, BUTTON HEAD	1	1,28 €	+
73	904640700100 CLAMP	1	1,19 €	+
74	BX9F581J0100 HOSE, BRAKE 4	1	63,79 €	+
75	904011081200 BOLT, UNION	1	1,33 €	+
76	902011011800 WASHER, PLATE	1	2,05 €	+
77	904641201300 CLAMP	1	1,97 €	+
78	904641307300 CLAMP	1	2,30 €	+
79	BX9F581K0100 HOSE, BRAKE 5	1	63,79 €	+
80	904011081200 BOLT, UNION	1	1,33 €	+
81	902011011800 WASHER, PLATE	1	2,05 €	+
82	904641201300 CLAMP	1	1,97 €	+
83	BX9F58760000 HOLDER, BRAKE HOSE 2	1	2,69 €	+
84	95D020601200 BOLT, FLANGE DEEP RECESS	1	1,01 €	+
