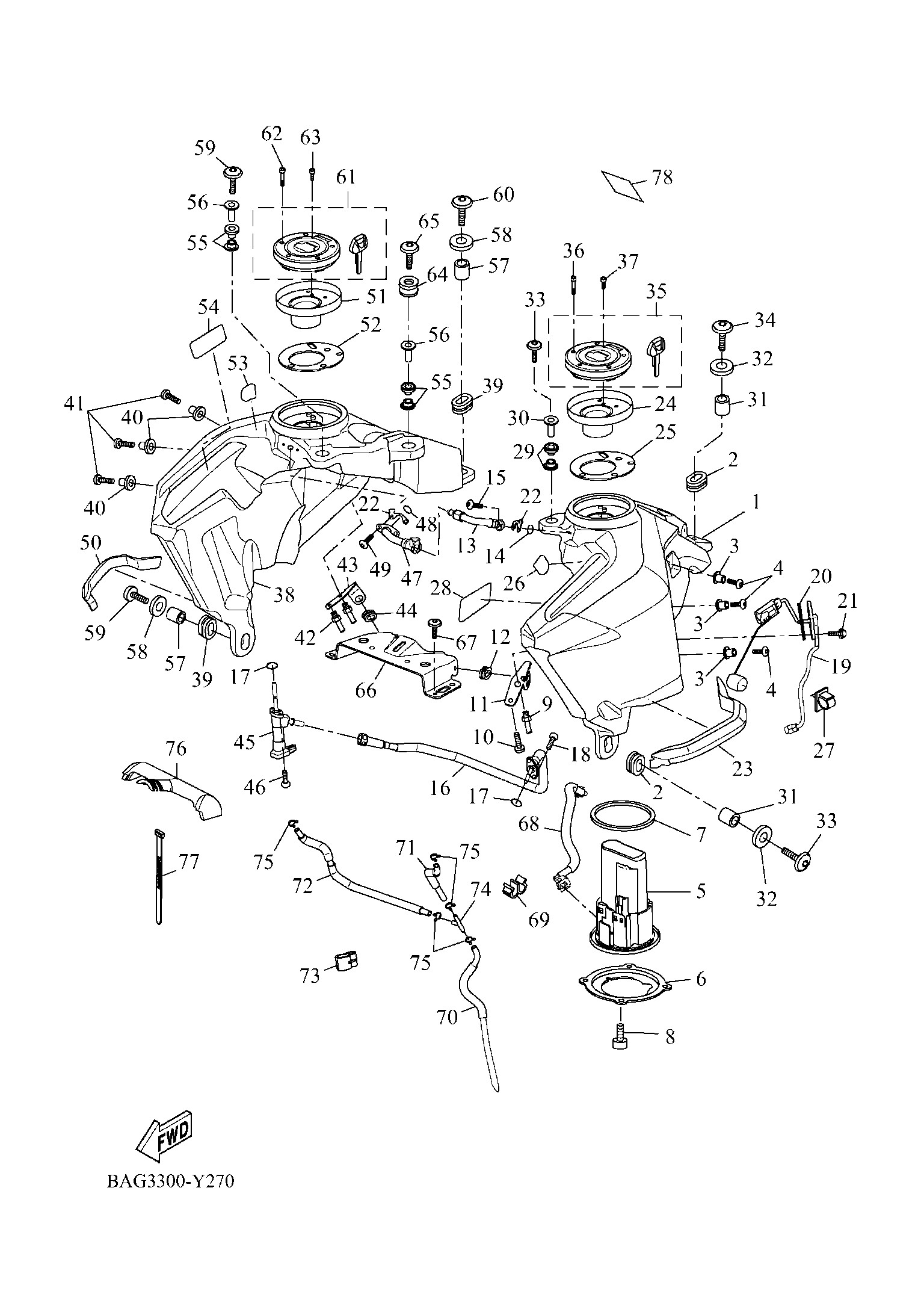

FUEL TANK

Volver al despiece completo

#	Ref.	unds.	Precio/unidad
1	BAGF41100034 FUEL TANK COMP.	1	Obsoleta
1	BAGF41100044 FUEL TANK COMP.	1	Obsoleta
2	11DF41820000 DAMPER, LOCATING 2	1	6,39 €	+
3	9038706X4400 COLLAR	1	6,71 €	+
4	901110617100 BOLT, HEXAGON SOCKET BUTTON	1	1,28 €	+
5	BAG139070000 FUEL PUMP COMP.	1	326,96 €	+
6	BW3244910000 BRACKET, FUEL PUMP	1	30,62 €	+
7	1RC244860000 O-RING	1	9,45 €	+
8	913120501000 BOLT, HEXAGON SOCKET HEAD	1	1,28 €	+
9	BAGF44781000 JOINT	1	6,22 €	+
10	901110606500 BOLT, HEXAGON SOCKET BUTTON	1	0,69 €	+
11	BAGF414L0000 PLATE, FITTING 2	1	10,42 €	+
12	904800155800 GROMMET	1	2,69 €	+
13	BAGF43070000 FUEL PIPE COMP. 2	1	55,79 €	+
14	BAGF44860000 O-RING	1	2,79 €	+
15	901110503100 BOLT, HEXAGON SOCKET BUTTON	1	0,49 €	+
16	BAGF43060000 FUEL PIPE COMP. 1	1	65,52 €	+
17	BAGF44860000 O-RING	1	2,79 €	+
18	901110610400 BOLT, HEXAGON SOCKET BUTTON	1	0,59 €	+
19	BAG857520100 SENDER	1	127,55 €	+
20	5G3857530000 GASKET, SENDER UNIT	1	7,08 €	+
21	901190580900 BOLT, WITH WASHER	1	2,30 €	+
22	BAGF41910000 BRACKET, FUEL TANK 1	1	7,31 €	+
23	BAGF414H0000 DAMPER, PLATE 1	1	32,34 €	+
24	BAGF413F0000 BOX FILLER COMP,	1	18,88 €	+
25	BAGF414E1000 SEAL 2	1	8,46 €	+
26	BC6F476V0100 PROTECTOR,2	1	3,60 €	+
27	904645408600 CLAMP	1	2,30 €	+
28	BW3F117G0200 PROTECTOR	1	13,84 €	+
29	11DF41810000 DAMPER, LOCATING 1	1	3,16 €	+
30	11DF412G0000 COLLAR	1	12,56 €	+
31	90387087L300 COLLAR	1	3,93 €	+
32	9020108X3000 WASHER, PLATE	1	8,37 €	+
33	901110807600 BOLT, HEXAGON SOCKET BUTTON	1	3,38 €	+
34	901110807600 BOLT, HEXAGON SOCKET BUTTON	1	3,38 €	+
35	BAG246020000 CAP ASSY	1	185,85 €	+
36	901100511200 BOLT, HEXAGON SOCKET HEAD	1	2,14 €	+
37	913170501000 BOLT, HEXAGON SOCKET HEAD	1	1,13 €	+
38	BAGF41101034 FUEL TANK COMP.	1	Obsoleta
38	BAGF41101044 FUEL TANK COMP.	1	Obsoleta
39	11DF41820000 DAMPER, LOCATING 2	1	6,39 €	+
40	9038706X4400 COLLAR	1	6,71 €	+
41	901110617100 BOLT, HEXAGON SOCKET BUTTON	1	1,28 €	+
42	BAGF44781000 JOINT	1	6,22 €	+
43	BAGF414L1000 PLATE, FITTING 2	1	10,42 €	+
44	904800155800 GROMMET	1	2,69 €	+
45	BAGF461B0000 VALVE COMP.	1	111,51 €	+
46	901110610400 BOLT, HEXAGON SOCKET BUTTON	1	0,59 €	+
47	BAGF43071000 FUEL PIPE COMP. 2	1	55,79 €	+
48	BAGF44860000 O-RING	1	2,79 €	+
49	901110503100 BOLT, HEXAGON SOCKET BUTTON	1	0,49 €	+
50	BAGF414J0000 DAMPER, PLATE 2	1	32,34 €	+
51	BAGF413F0000 BOX FILLER COMP,	1	18,88 €	+
52	BAGF414E1000 SEAL 2	1	8,46 €	+
53	BC6F476V0100 PROTECTOR,2	1	3,60 €	+
54	BW3F117G0200 PROTECTOR	1	13,84 €	+
55	11DF41810000 DAMPER, LOCATING 1	1	3,16 €	+
56	11DF412G0000 COLLAR	1	12,56 €	+
57	90387087L300 COLLAR	1	3,93 €	+
58	9020108X3000 WASHER, PLATE	1	8,37 €	+
59	901110807600 BOLT, HEXAGON SOCKET BUTTON	1	3,38 €	+
60	901110807600 BOLT, HEXAGON SOCKET BUTTON	1	3,38 €	+
61	BAG246020000 CAP ASSY	1	185,85 €	+
62	901100511200 BOLT, HEXAGON SOCKET HEAD	1	2,14 €	+
63	913170501000 BOLT, HEXAGON SOCKET HEAD	1	1,13 €	+
64	BAGF412G0000 COLLAR	1	15,87 €	+
65	901110800500 BOLT, HEXAGON SOCKET BUTTON	1	4,24 €	+
66	BAGF413Y0000 BRACKET, TANK FITTING	1	37,28 €	+
67	901110615100 BOLT, HEXAGON SOCKET BUTTON	1	1,61 €	+
68	BAG139711000 PIPE, FUEL 1	1	78,46 €	+
69	904641602200 CLAMP	1	2,30 €	+
70	BAGF43210000 PIPE 10	1	14,70 €	+
71	BAGF43230000 PIPE 12	1	12,93 €	+
72	BAGF43240000 PIPE 13	1	17,81 €	+
73	904641023300 CLAMP	1	6,44 €	+
74	904130700700 WAY 3	1	5,03 €	+
75	90467090A200 CLIP	1	0,59 €	+
76	BW3241840000 DAMPER, LOCATING 4	1	22,58 €	+
77	4KHH39360100 BAND, SWITCH CORD	1	2,89 €	+
78	BU3F817K0100 LABEL, FUEL	1	4,77 €	+
