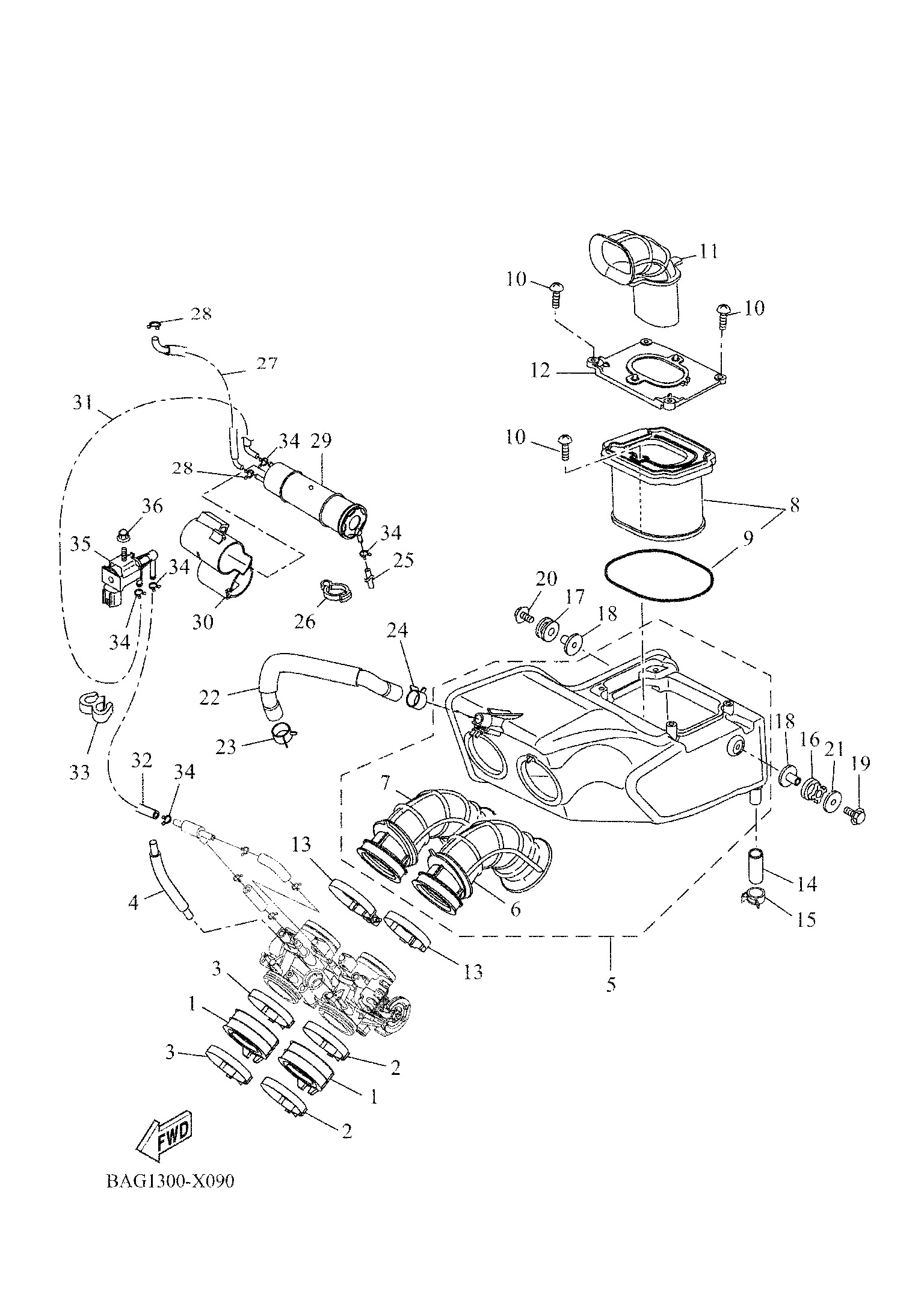

Inicio > Modelos Yamaha > AVENTURA > TENERE 700 WORLD RAID > 2024 > Intake
Volver al despiece completo

# Ref. unds. Precio/unidad
1 BU3E36350000
JOINT, INTAKE 1 		1 3,75 € +
2 904505601100
HOSE CLAMP ASSY 		1 6,98 € +
3 904505601200
HOSE CLAMP ASSY 		1 10,61 € +
4 BEH135420000
HOSE, VACUUM SENSING 1 		1 4,19 € +
5 BW3144010200
AIR CLEANER CASE ASSY 		1 176,03 € +
6 BW3144690100
.FUNNEL, AIR 		1 33,25 € +
7 BW31446C0100
.FUNNEL 2 		1 33,25 € +
8 1WS144500000
ELEMENT ASSY, AIR CLEANER 		1 29,61 € +
9 1WS144520000
.SEAL 		1 7,22 € +
10 901600501300
SCREW, ROUND TAPPING 		1 0,49 € +
11 BW3144370100
DUCT 		1 22,21 € +
12 BW3144680100
PLATE,ELEMENT FITTING 		1 10,68 € +
13 904505601100
HOSE CLAMP ASSY 		1 6,98 € +
14 1WS1443E0000
PIPE, DRAIN 		1 3,75 € +
15 904671308300
CLIP 		1 2,05 € +
16 904801500100
GROMMET 		1 2,74 € +
17 904801501400
GROMMET 		1 2,69 € +
18 903870630000
COLLAR 		1 2,52 € +
19 958170602500
BOLT, FLANGE 		1 0,42 € +
20 901490603900
SCREW 		1 1,33 € +
21 90201064K600
WASHER, PLATE 		1 1,65 € +
22 BW3E11660100
PIPE, BREATHER 1 		1 19,05 € +
23 904671712800
CLIP 		1 3,38 € +
24 90467160A200
CLIP 		1 1,92 € +
25 BW3243240000
PIPE 13 		1 2,47 € +
26 904641023300
CLAMP 		1 6,44 € +
27 BAGF43170000
PIPE 7 		1 21,61 € +
28 90467090A200
CLIP 		1 0,59 € +
29 BW3F41700000
CANISTER ASSY 		1 178,76 € +
30 2RC241820000
DAMPER, LOCATING 2 		1 91,60 € +
31 BAG243A10000
PIPE 15 		1 54,28 € +
32 BAG243A20000
PIPE 16 		1 42,04 € +
33 9046409M3100
CLAMP 		1 2,74 € +
34 90467090A200
CLIP 		1 0,59 € +
35 BG4861200000
SOLENOID VALVE ASSY 		1 68,91 € +
36 901760600800
NUT, CAP 		1 1,13 € +
