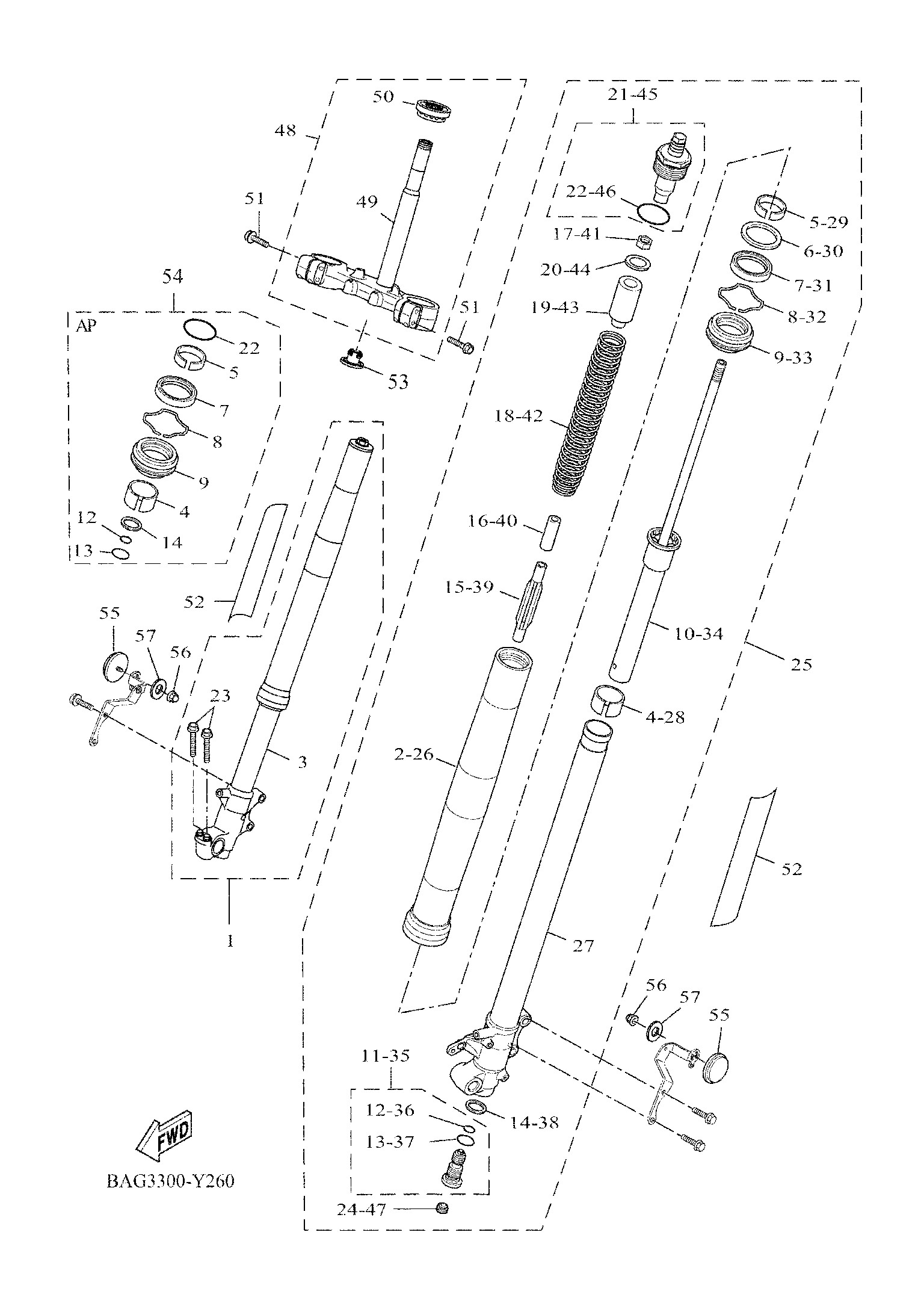

# | Ref. | unds. | Precio/unidad | |
---|---|---|---|---|
1 |
BAG231030100 FRONT FORK ASSY (R.H) |
1 | 544,03 € | + |
1 |
BAG231031000 FRONT FORK ASSY (R.H) |
1 | 544,03 € | + |
2 |
BAG231260000 .TUBE, OUTER (L.H) |
1 | 202,01 € | + |
2 |
BAG231261000 .TUBE, OUTER (L.H) |
1 | 202,01 € | + |
3 |
BAG231200000 .INNER TUBE COMP.2 |
1 | 178,77 € | + |
4 |
5EB231710000 .PISTON, FRONT FORK |
1 | 20,70 € | + |
5 |
2CR231250000 .METAL, SLIDE 1 |
1 | 10,61 € | + |
6 |
4V423146L000 .WASHER, OIL SEAL |
1 | 5,48 € | + |
7 |
4PU231450100 .OIL SEAL |
1 | 13,97 € | + |
8 |
4V423153L000 .RING, SNAP |
1 | 3,33 € | + |
9 |
4PU231440000 .SEAL, DUST |
1 | 19,57 € | + |
10 |
BAG231700000 .CYLINDER COMP., FRONT FORK |
1 | 223,77 € | + |
11 |
BAG2330H0000 .VALVE ASSY |
1 | 65,43 € | + |
12 |
3SP23147L000 ..O-RING |
1 | 3,65 € | + |
13 |
3JD23147M000 ..O-RING |
1 | 1,33 € | + |
14 |
3JD23158L000 .GASKET |
1 | 4,07 € | + |
15 |
23P231170200 .GUIDE, SPRING |
1 | 39,58 € | + |
16 |
23P231130000 .COLLAR |
1 | 7,82 € | + |
17 |
3LC233570000 .NUT |
1 | 0,42 € | + |
18 |
BAG231410000 .SPRING, FRONT FORK |
1 | 66,91 € | + |
19 |
23P231180000 .SPACER |
1 | 15,76 € | + |
20 |
5VY122770000 .WASHER |
1 | 9,13 € | + |
21 |
BAG231110000 .BOLT, CAP |
1 | 78,58 € | + |
22 |
3XJ23147L200 ..O-RING |
1 | 5,52 € | + |
23 |
901050813400 BOLT, FLANGE |
1 | 1,73 € | + |
24 |
3JD2312GL100 .PLUG, HOLE |
1 | 5,80 € | + |
25 |
BAG231020100 FRONT FORK ASSY (L.H) |
1 | 544,03 € | + |
25 |
BAG231021000 FRONT FORK ASSY (L.H) |
1 | 544,03 € | + |
26 |
BAG231260000 .TUBE, OUTER (L.H) |
1 | 202,01 € | + |
26 |
BAG231261000 .TUBE, OUTER (L.H) |
1 | 202,01 € | + |
27 |
BAG231100000 .INNER TUBE COMP.1 |
1 | 178,77 € | + |
28 |
5EB231710000 .PISTON, FRONT FORK |
1 | 20,70 € | + |
29 |
2CR231250000 .METAL, SLIDE 1 |
1 | 10,61 € | + |
30 |
4V423146L000 .WASHER, OIL SEAL |
1 | 5,48 € | + |
31 |
4PU231450100 .OIL SEAL |
1 | 13,97 € | + |
32 |
4V423153L000 .RING, SNAP |
1 | 3,33 € | + |
33 |
4PU231440000 .SEAL, DUST |
1 | 19,57 € | + |
34 |
BAG231700000 .CYLINDER COMP., FRONT FORK |
1 | 223,77 € | + |
35 |
BAG2330H0000 .VALVE ASSY |
1 | 65,43 € | + |
36 |
3SP23147L000 ..O-RING |
1 | 3,65 € | + |
37 |
3JD23147M000 ..O-RING |
1 | 1,33 € | + |
38 |
3JD23158L000 .GASKET |
1 | 4,07 € | + |
39 |
23P231170200 .GUIDE, SPRING |
1 | 39,58 € | + |
40 |
23P231130000 .COLLAR |
1 | 7,82 € | + |
41 |
3LC233570000 .NUT |
1 | 0,42 € | + |
42 |
BAG231410000 .SPRING, FRONT FORK |
1 | 66,91 € | + |
43 |
23P231180000 .SPACER |
1 | 15,76 € | + |
44 |
5VY122770000 .WASHER |
1 | 9,13 € | + |
45 |
BAG231110000 .BOLT, CAP |
1 | 78,58 € | + |
46 |
3XJ23147L200 ..O-RING |
1 | 5,52 € | + |
47 |
3JD2312GL100 .PLUG, HOLE |
1 | 5,80 € | + |
48 |
BAG2334M0000 UNDER BRACKET ASSY. |
1 | 992,42 € | + |
49 |
BAG233400000 .UNDER BRACKET COMP. |
1 | 349,81 € | + |
50 |
933320000800 .BEARING |
1 | 67,26 € | + |
51 |
901050813400 BOLT, FLANGE |
1 | 1,73 € | + |
52 |
BAG2315FB000 .STICKER |
1 | 7,46 € | + |
52 |
BAG2315FA000 .STICKER |
1 | 7,46 € | + |
53 |
4KM231230100 COVER, UNDER 1 |
1 | 17,55 € | + |
54 |
BAGW003B0000 FORK SEALS KIT |
1 | 36,80 € | + |
55 |
2FCH51110000 REFLECTOR, 1 |
1 | 6,71 € | + |
56 |
901760500400 NUT, CAP |
1 | 3,21 € | + |
57 |
902010502700 WASHER, PLATE |
1 | 2,30 € | + |
