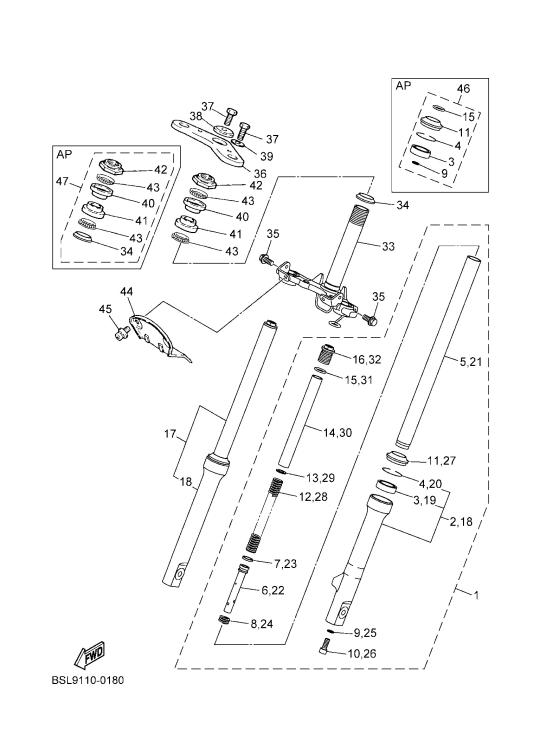

FRONT FORK

Volver al despiece completo

#	Ref.	unds.	Precio/unidad
1	2SA231020200 FRONT FORK ASSY (L.H)	1	231,02 €	+
2	2SA231060000 .OUTER TUBE COMP.	1	114,06 €	+
3	2SA231450000 ..OIL SEAL	1	8,15 €	+
4	2SA231530000 ..RING, SNAP	1	2,46 €	+
5	2SA231100200 .INNER TUBE COMP.1	1	110,16 €	+
6	2SA231710000 .PISTON, FRONT FORK	1	10,39 €	+
7	2SA231570000 .RING, PISTON	1	3,67 €	+
8	2SA231510000 .SPRING, REBOUND	1	8,25 €	+
9	2SA234790000 .GASKET	1	4,77 €	+
10	2SA233560000 .BOLT 2	1	3,01 €	+
11	2SA231440000 .SEAL, DUST	1	5,24 €	+
12	2SA231410000 .SPRING, FRONT FORK	1	5,46 €	+
13	2SA234270000 .WASHER	1	1,33 €	+
14	2SA231180000 .SPACER	1	5,90 €	+
15	2SA231470000 .O-RING	1	0,86 €	+
16	2SA233570000 .NUT	1	19,42 €	+
17	2SA231030200 FRONT FORK ASSY (R.H)	1	231,02 €	+
18	2SA231070000 .OUTER TUBE COMP.	1	114,06 €	+
19	2SA231450000 ..OIL SEAL	1	8,15 €	+
20	2SA231530000 ..RING, SNAP	1	2,46 €	+
21	2SA231100200 .INNER TUBE COMP.1	1	110,16 €	+
22	2SA231710000 .PISTON, FRONT FORK	1	10,39 €	+
23	2SA231570000 .RING, PISTON	1	3,67 €	+
24	2SA231510000 .SPRING, REBOUND	1	8,25 €	+
25	2SA234790000 .GASKET	1	4,77 €	+
26	2SA233560000 .BOLT 2	1	3,01 €	+
27	2SA231440000 .SEAL, DUST	1	5,24 €	+
28	2SA231410000 .SPRING, FRONT FORK	1	5,46 €	+
29	2SA234270000 .WASHER	1	1,33 €	+
30	2SA231180000 .SPACER	1	5,90 €	+
31	2SA231470000 .O-RING	1	0,86 €	+
32	2SA233570000 .NUT	1	19,42 €	+
33	2SA233400100 UNDER BRACKET COMP.	1	184,11 €	+
34	3YJ234140000 RACE, BALL 4	1	7,08 €	+
34	2SA234140000 RACE, BALL 4	1	7,08 €	+
35	950270803000 BOLT, FLANGE	1	1,92 €	+
36	4X4234350000 CROWN, HANDLE	1	24,18 €	+
37	901051000600 BOLT, FLANGE	1	4,39 €	+
38	902091016000 WASHER	1	5,30 €	+
39	90201105H300 WASHER, PLATE	1	5,75 €	+
40	2SA234120000 RACE, BALL 2	1	8,96 €	+
41	2SA234130000 RACE, BALL 3	1	7,77 €	+
42	2SA234110000 RACE, BALL 1	1	8,96 €	+
43	935053204200 BALL	1	12,65 €	+
44	4X4215430000 PLATE 1	1	20,28 €	+
45	901590606000 SCREW, WITH WASHER	1	0,49 €	+
46	2SAW003B0000 FORK SEALS KIT	1	15,02 €	+
47	BSLW000B0000 STEERING BEARING KIT	1	Obsoleta
