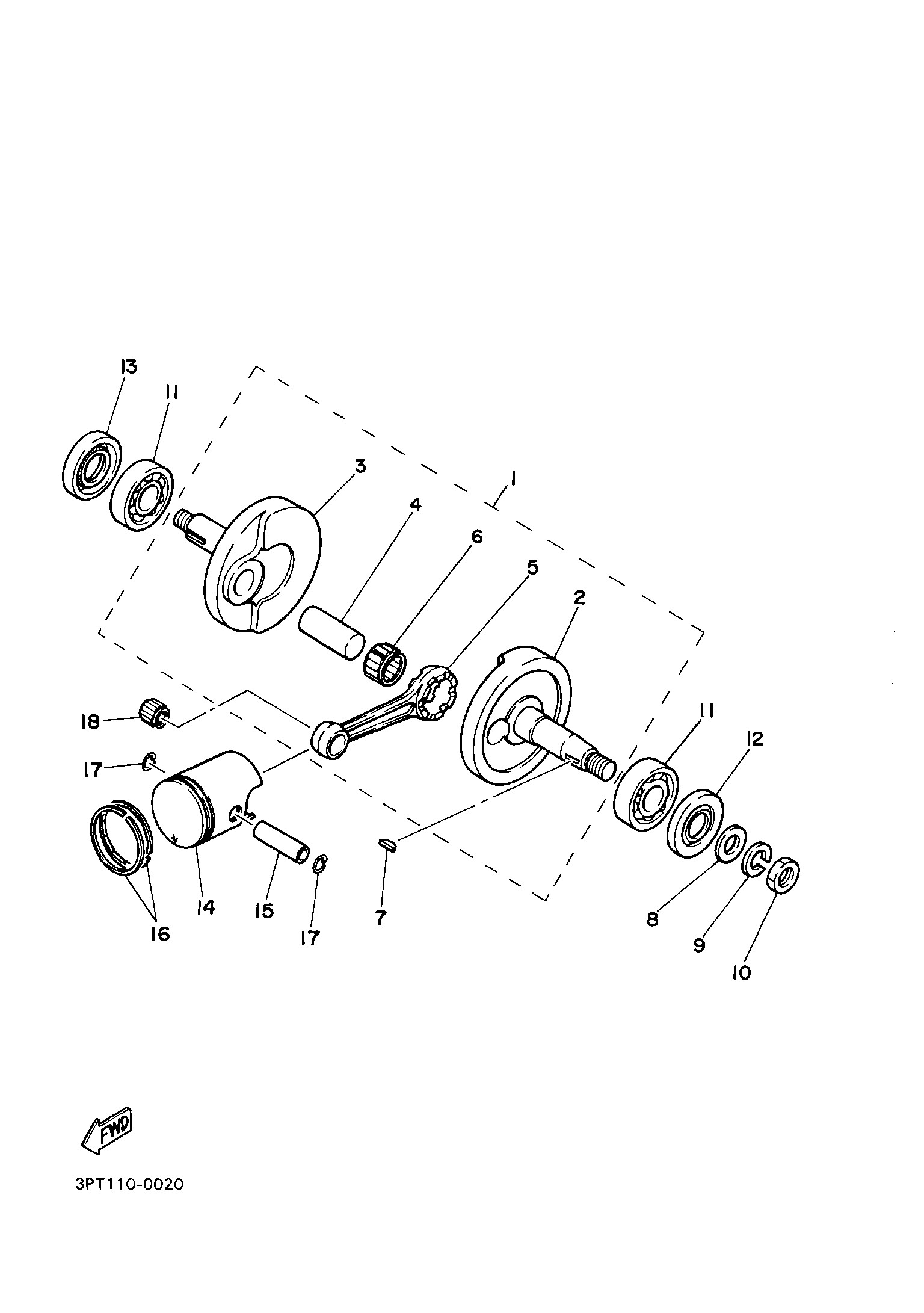

CRANKSHAFT & PISTON

Volver al despiece completo

#	Ref.	unds.	Precio/unidad
1	3L5114000300 CRANKSHAFT ASSY	1	220,31 €	+
2	3L5114120100 .CRANK 1	1	123,95 €	+
3	3L5114220200 .CRANK 2	1	123,95 €	+
4	1YU116810000 .PIN, CRANK 1	1	15,17 €	+
5	2E9116510000 .ROD, CONNECTING	1	58,04 €	+
6	93310416N700 .BEARING	1	18,01 €	+
7	902800304500 KEY, WOODRUFF	1	2,47 €	+
8	929071260000 WASHER, PLATE	1	0,49 €	+
9	929071210000 WASHER, SPRING	1	0,37 €	+
10	953071270000 NUT	1	1,88 €	+
11	933062032600 BEARING	1	25,24 €	+
12	931021706700 OIL SEAL	1	6,16 €	+
13	931022317400 OIL SEAL	1	9,01 €	+
14	18U1163100A0 PISTON (STD)	1	63,95 €	+
14	18U116350000 PISTON (0.25MM O/S)	1	96,95 €	+
14	18U116360000 PISTON (0.50MM O/S)	1	96,95 €	+
15	3L5116330000 PIN, PISTON	1	13,84 €	+
16	260116102400 PISTON RING SET (0.50MM O/S)	1	38,25 €	+
16	260116101400 PISTON RING SET (0.25MM O/S)	1	38,25 €	+
16	260116100400 PISTON RING SET (STD)	1	24,95 €	+
17	934501102100 CIRCLIP	1	0,55 €	+
18	933102103800 BEARING	1	16,18 €	+
