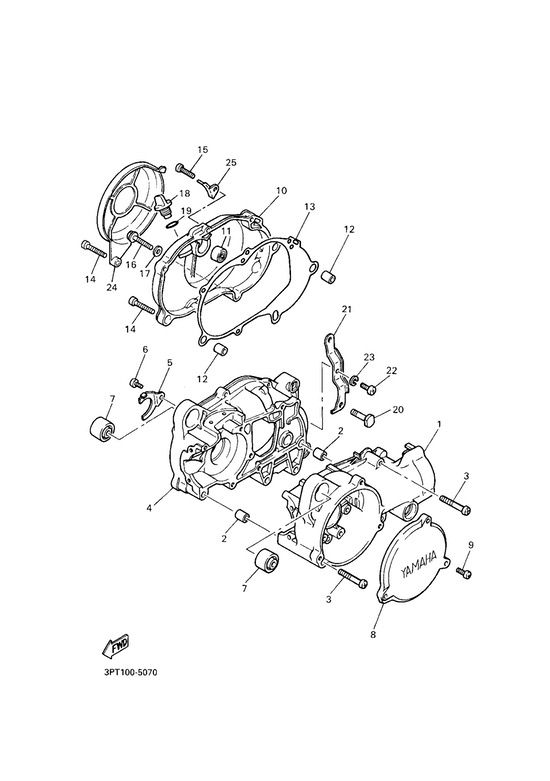

CRANKCASE

Volver al despiece completo

#	Ref.	unds.	Precio/unidad
1	4X4151110000 CRANKCASE 1	1	168,33 €	+
2	995301201600 PIN, DOWEL	1	2,79 €	+
3	985070604500 SCREW, PAN HEAD	1	1,13 €	+
4	4J2151210100 CRANKCASE 2	1	241,73 €	+
5	3L5151280000 HOLDER	1	3,48 €	+
6	985170601200 TORNILLO	1	0,49 €	+
7	2E9153160000 DAMPER 1	1	13,99 €	+
8	4J2154150000 COVER, 1	1	39,98 €	+
9	985070501400 SCREW, PAN HEAD	1	0,49 €	+
10	4X4154210200 COVER, CRANKCASE 2	1	118,37 €	+
11	3L5171120100 BUJE	1	13,15 €	+
12	995301201600 PIN, DOWEL	1	2,79 €	+
13	3L5154511200 GASKET, CRANKCASE COVER 1	1	7,11 €	+
14	985070603500 SCREW, PAN HEAD	1	0,49 €	+
15	985170602500 SCREW, PAN HEAD (76T)	1	0,42 €	+
16	958170803500 TORNILLO	1	1,33 €	+
17	902010808700 ARANDELA PLANA	1	2,47 €	+
18	4J2153631000 PLUG, OIL	1	4,12 €	+
19	932101457900 O-RING	1	1,19 €	+
20	901090858200 BOLT	1	1,65 €	+
21	4J2151130000 PLATE	1	6,66 €	+
22	985170601200 TORNILLO	1	0,49 €	+
23	929070610000 WASHER, SPRING	1	0,49 €	+
24	4X4154910000 PROTECTOR	1	14,92 €	+
25	4X4154840000 CLAMP 2	1	4,57 €	+
