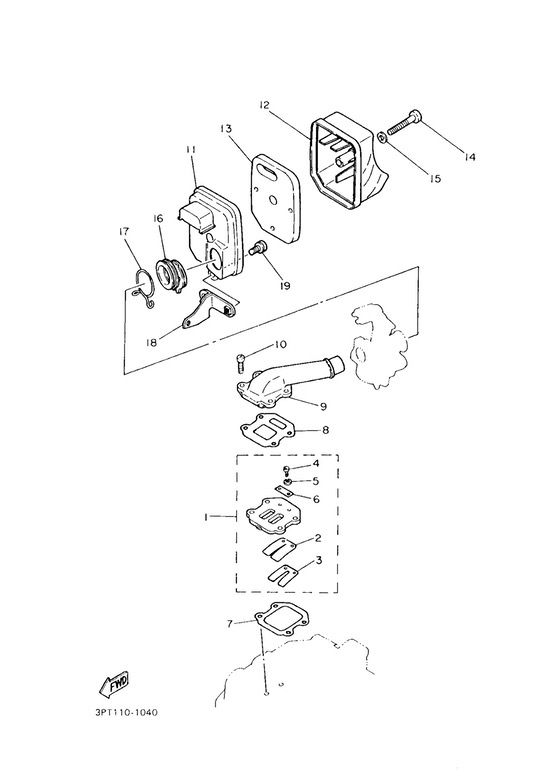

INTAKE

Volver al despiece completo

#	Ref.	unds.	Precio/unidad
1	3L5136100000 REED VALVE ASSY	1	59,85 €	+
2	3L5136130000 .REED, VALVE	1	9,65 €	+
3	3L5136160000 .STOPPER, REED VALVE	1	8,63 €	+
4	985070301000 .SCREW, PAN HEAD	1	0,59 €	+
5	929900310000 ARANDELA PLANA	1	1,19 €	+
6	3L5136240000 .PLATE,REED VALVE	1	1,24 €	+
7	3HK136210000 GASKET, VALVE SEAT	1	8,32 €	+
8	3L5136221000 GASKET, VALVE SEAT	1	19,56 €	+
9	3L5135550000 MANIFOLD, INTAKE	1	47,25 €	+
10	985170602000 TORNILLO	5	1,55 €	+
11	4X4144110000 CASE, AIR CLEANER 1	1	17,27 €	+
12	4X4144120000 CAP, CLEANER CASE 1	1	17,32 €	+
13	4X4144510000 ELEMENT, AIR CLEANER	1	4,59 €	+
14	985070604500 SCREW, PAN HEAD	1	1,13 €	+
15	929070660000 WASHER, PLATE	1	0,49 €	+
16	4X4144530000 JOINT, AIR CLEANER 1	1	13,15 €	+
17	904672002300 CLIP	1	4,52 €	+
18	4X4144930100 STAY 1	1	14,11 €	+
19	901590601300 SCREW, WITH WASHER	1	0,49 €	+
