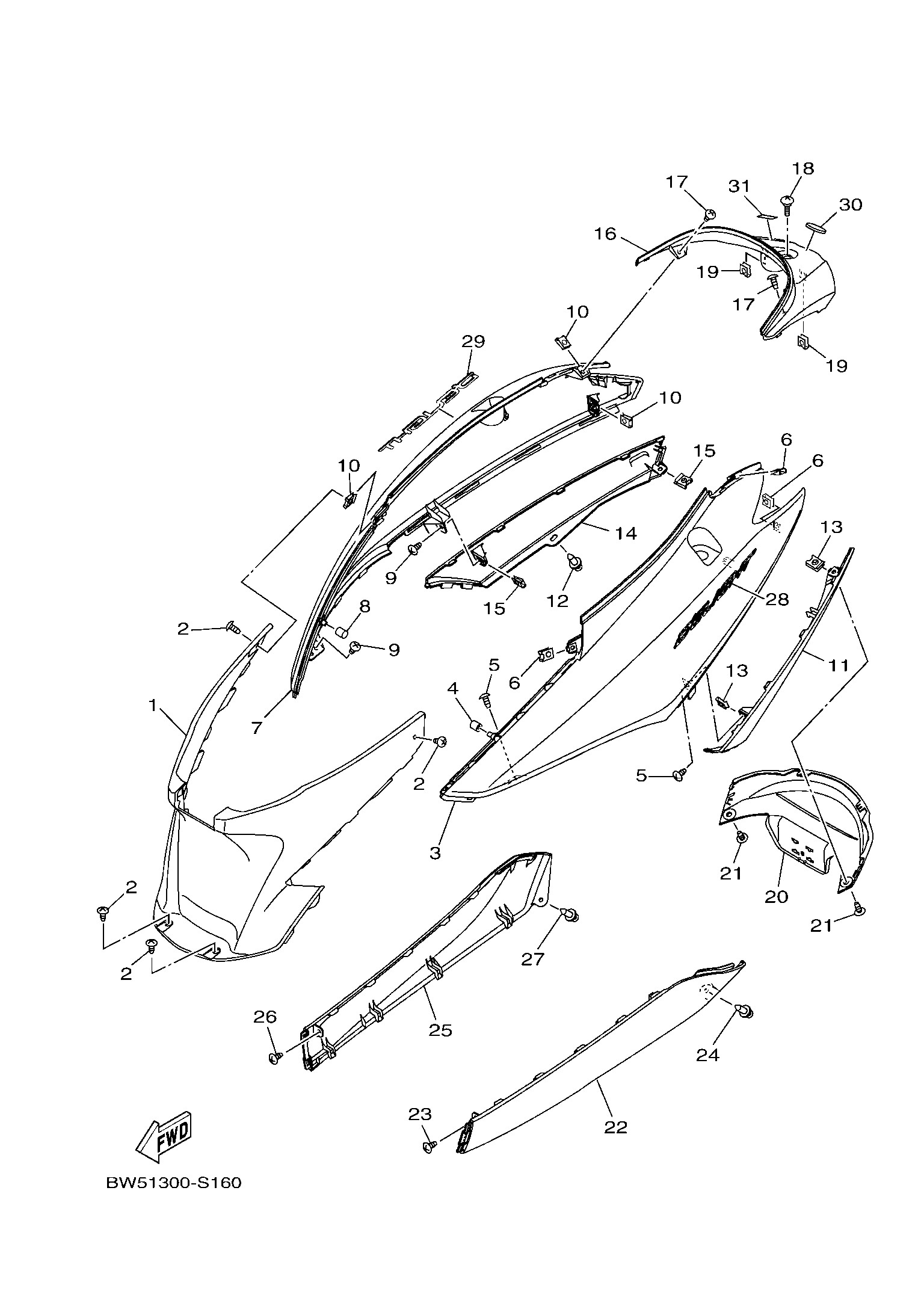

CUBIERTA LATERAL

Volver al despiece completo

#	Ref.	unds.	Precio/unidad
1	2TDF17110000 COVER, SIDE 1	1	28,31 €	+
2	977075001200 SCREW, TRUSS HEAD TAPPING	1	0,49 €	+
3	2TDF172101PB CUBIERTA LATERAL 2	1	51,32 €	+
3	2TDF172101P6 COVER, SIDE 2	1	52,07 €	+
3	2TDF172101P0 CUBIERTA LATERAL 2	1	52,07 €	+
4	5HUF622F0000 DAMPER, LOCATING 1	1	0,22 €	+
5	977025001200 SCREW, TAPPING	1	0,49 €	+
6	901830580700 NUT, SPRING	1	0,49 €	+
7	2TDF173101P0 TAPA LATERAL 3	1	51,32 €	+
7	2TDF173101P6 COVER, SIDE 3	1	51,32 €	+
7	2TDF173101PB TAPA LATERAL 3	1	51,32 €	+
8	5HUF622F0000 DAMPER, LOCATING 1	1	0,22 €	+
9	977025001200 SCREW, TAPPING	1	0,49 €	+
10	901830580700 NUT, SPRING	1	0,49 €	+
11	2TDF172A01P4 PANEL 1	1	13,57 €	+
12	902690681200 RIVET	1	0,33 €	+
13	901830580700 NUT, SPRING	1	0,49 €	+
14	2TDF172F01P4 PANEL 2	1	13,57 €	+
15	901830580700 NUT, SPRING	1	0,49 €	+
16	2TDF174100P0 COVER, SIDE 4	1	22,71 €	+
17	977025001200 SCREW, TAPPING	1	0,49 €	+
18	901490580400 SCREW	1	0,75 €	+
19	901830580700 NUT, SPRING	1	0,49 €	+
20	2TDF171E02P4 COVER, SIDE 5	1	17,07 €	+
21	977075001200 SCREW, TRUSS HEAD TAPPING	1	0,49 €	+
22	2TDF171L02PB MUELLE , CUBIERTA LATERAL 1	1	21,95 €	+
22	2TDF171L02P6 MOLE, SIDE COVER 1	1	21,95 €	+
22	2TDF171L02P0 MUELLE , CUBIERTA LATERAL 1	1	21,95 €	+
23	977025001200 SCREW, TAPPING	1	0,49 €	+
24	902690681200 RIVET	1	0,33 €	+
25	2TDF171M02PB MUELLE, CUBIERTA LATERAL 2	1	21,95 €	+
25	2TDF171M02P6 MOLE, SIDE COVER 2	1	21,95 €	+
25	2TDF171M02P0 MUELLE, CUBIERTA LATERAL 2	1	21,95 €	+
26	977025001200 SCREW, TAPPING	1	0,49 €	+
27	902690681200 RIVET	1	0,33 €	+
28	BW5F173D1000 EMBLEM 3D	1	13,40 €	+
29	BW5F174D1000 EMBLEM 3D	1	13,40 €	+
30	5P1F17370000 EMBLEM	1	0,42 €	+
31	B63F17P10100 EMBLEM 3D	1	1,61 €	+
