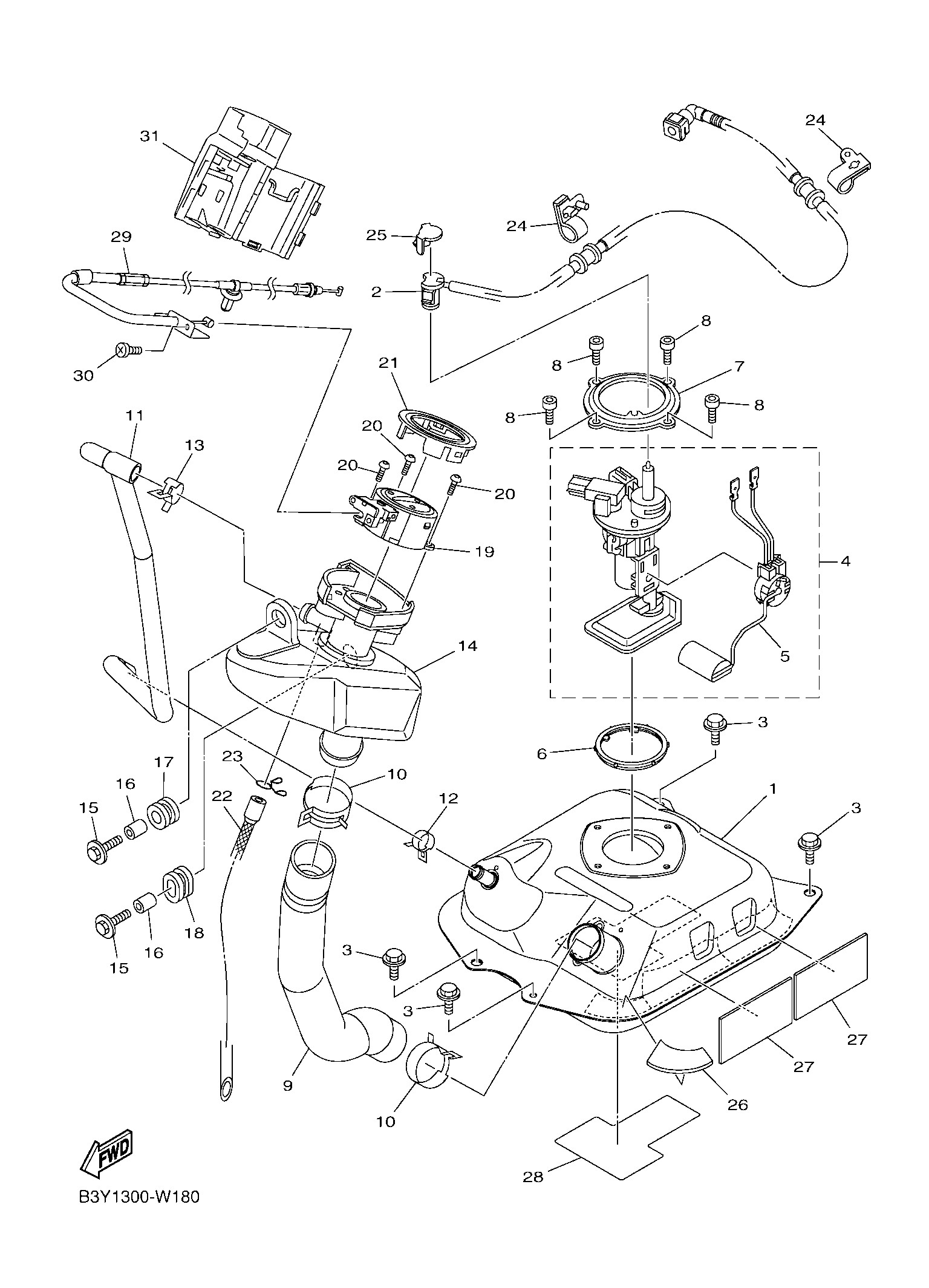

# | Ref. | unds. | Precio/unidad | |
---|---|---|---|---|
1 |
2TDF41100000 FUEL TANK COMP. |
1 | 71,25 € | + |
2 |
2TDE39710000 PIPE, FUEL 1 |
1 | 61,18 € | + |
3 |
901190687500 BOLT, WITH WASHER |
1 | 0,59 € | + |
4 |
2TDE39070000 FUEL PUMP COMP. |
1 | 269,23 € | + |
5 |
2TDH57520000 .SENDER |
1 | 78,38 € | + |
6 |
1DBF414G0100 SEAL |
1 | 18,33 € | + |
7 |
2BMF44910000 BRACKET, FUEL PUMP |
1 | 7,90 € | + |
8 |
913320501000 BOLT |
1 | 0,49 € | + |
9 |
2TDF43160000 PIPE 6 |
1 | 37,33 € | + |
10 |
904673780000 CLIP |
1 | 1,33 € | + |
11 |
2TDF43170000 PIPE 7 |
1 | 12,23 € | + |
12 |
904671680700 CLIP |
1 | 0,59 € | + |
13 |
904672080400 CLIP |
1 | 11,59 € | + |
14 |
2TDF42800000 SUB FUEL TANK |
1 | 19,84 € | + |
15 |
90119068C200 BOLT, WITH WASHER |
1 | 1,13 € | + |
16 |
903870782900 COLLAR |
1 | 1,01 € | + |
17 |
904801829000 GROMMET |
1 | 5,10 € | + |
18 |
904800132600 GROMMET |
1 | 3,75 € | + |
19 |
2BMF46100000 CAP ASSY |
1 | 40,76 € | + |
20 |
920120401200 BOLT, BUTTON HEAD |
1 | 0,75 € | + |
21 |
2BMF467E0000 CAP |
1 | 6,86 € | + |
22 |
2TDF43180000 PIPE, OVERFLOW |
1 | 3,48 € | + |
23 |
904671280600 CLIP |
1 | 0,33 € | + |
24 |
904641580500 CLAMP |
1 | 1,01 € | + |
25 |
5VU241350000 CLAMP 1 |
1 | 13,40 € | + |
26 |
2TDF41810000 DAMPER, LOCATING 1 |
1 | 0,33 € | + |
27 |
905200282200 DAMPER, PLATE |
1 | 1,33 € | + |
28 |
2TDF45950000 PROTECTOR |
1 | 6,86 € | + |
29 |
2BMF44940000 WIRE, PULL |
1 | 10,73 € | + |
30 |
985020501200 SCREW, PAN HEAD |
1 | 0,75 € | + |
31 |
B0RH255D0000 CUBIELA INTERRUPTOR PRINC.2 |
1 | 3,88 € | + |
