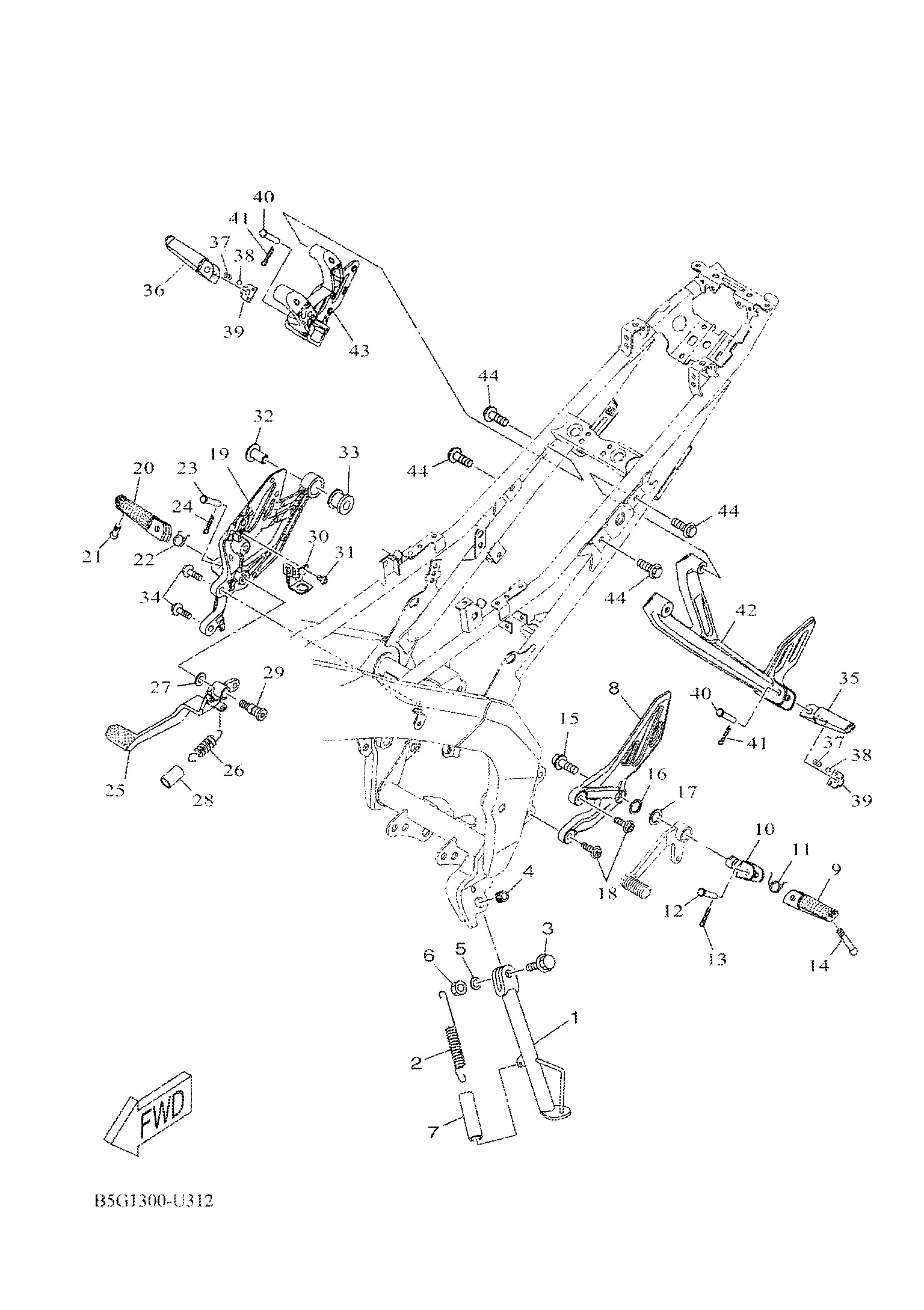

# | Ref. | unds. | Precio/unidad | |
---|---|---|---|---|
1 |
B5GF73110000 STAND, SIDE |
1 | 75,04 € | + |
2 |
905061800800 SPRING, TENSION |
1 | 10,42 € | + |
3 |
9010510X1700 BOLT, FLANGE |
1 | 3,93 € | + |
4 |
903871000300 COLLAR |
1 | 8,59 € | + |
5 |
929021060000 WASHER, PLATE |
1 | 1,55 € | + |
6 |
956121010000 NUT, U |
1 | 3,93 € | + |
7 |
9044519X0000 HOSE |
1 | 11,65 € | + |
8 |
B5GF74420000 SOPORTE 2 |
1 | 96,81 € | + |
9 |
20PF74510000 FOOTREST |
1 | 16,61 € | + |
10 |
5BPF74110000 FOOTREST 1 |
1 | 10,53 € | + |
11 |
90508183B900 SPRING, TORSION |
1 | 1,78 € | + |
12 |
917010803500 PIN |
1 | 2,79 € | + |
13 |
914012501500 PIN, COTTER |
1 | 1,19 € | + |
14 |
90109086F800 BOLT |
1 | 5,03 € | + |
15 |
901101002500 BOLT, HEXAGON SOCKET HEAD |
1 | 5,26 € | + |
16 |
902011781000 WASHER, PLATE |
1 | 3,65 € | + |
17 |
902061708400 WASHER, WAVE |
1 | 7,77 € | + |
18 |
90109085G600 BOLT |
1 | 1,41 € | + |
19 |
B5GF74430000 SOPORTE 3 |
1 | 99,28 € | + |
20 |
20PF74610000 FOOTREST |
1 | 16,61 € | + |
21 |
90109086F800 BOLT |
1 | 5,03 € | + |
22 |
90508184B000 SPRING, TORSION |
1 | 2,89 € | + |
23 |
902400814500 PIN, CLEVIS |
1 | 0,55 € | + |
24 |
914012501500 PIN, COTTER |
1 | 1,19 € | + |
25 |
B5GF72110000 PEDAL DE FRENO |
1 | 59,21 € | + |
26 |
905062680700 RESORTE DE TENSION |
1 | 1,28 € | + |
27 |
902011002100 WASHER, PLATE |
1 | 3,60 € | + |
28 |
904451980700 TUBO |
1 | 0,22 € | + |
29 |
BS8F72610000 SHAFT |
1 | 5,16 € | + |
30 |
BK6F144G1000 SOPORTE DE INTERRUPTOR |
1 | 23,71 € | + |
31 |
920120601000 BOLT, BUTTON HEAD |
1 | 0,69 € | + |
32 |
903870884200 COLLAR |
1 | 0,86 € | + |
33 |
BK7E47470000 DAMPER, MUFFLER |
1 | 3,65 € | + |
34 |
90109085G600 BOLT |
1 | 1,41 € | + |
35 |
45PF74310000 FOOTREST, REAR 1 |
1 | 26,78 € | + |
36 |
45PF74410000 FOOTREST, REAR 2 |
1 | 26,78 € | + |
37 |
905011274300 SPRING, COMPRESSION |
1 | 4,19 € | + |
38 |
935010484300 ESFERA |
1 | 0,05 € | + |
39 |
1WDF74370000 WASHER, SPECIAL |
1 | 0,59 € | + |
40 |
902400814500 PIN, CLEVIS |
1 | 0,55 € | + |
41 |
914012501500 PIN, COTTER |
1 | 1,19 € | + |
42 |
B5GF741L0100 MENSULA 4 |
1 | 78,58 € | + |
43 |
B5GF742L0100 MENSULA 5 |
1 | 78,58 € | + |
44 |
90109085G600 BOLT |
1 | 1,41 € | + |
