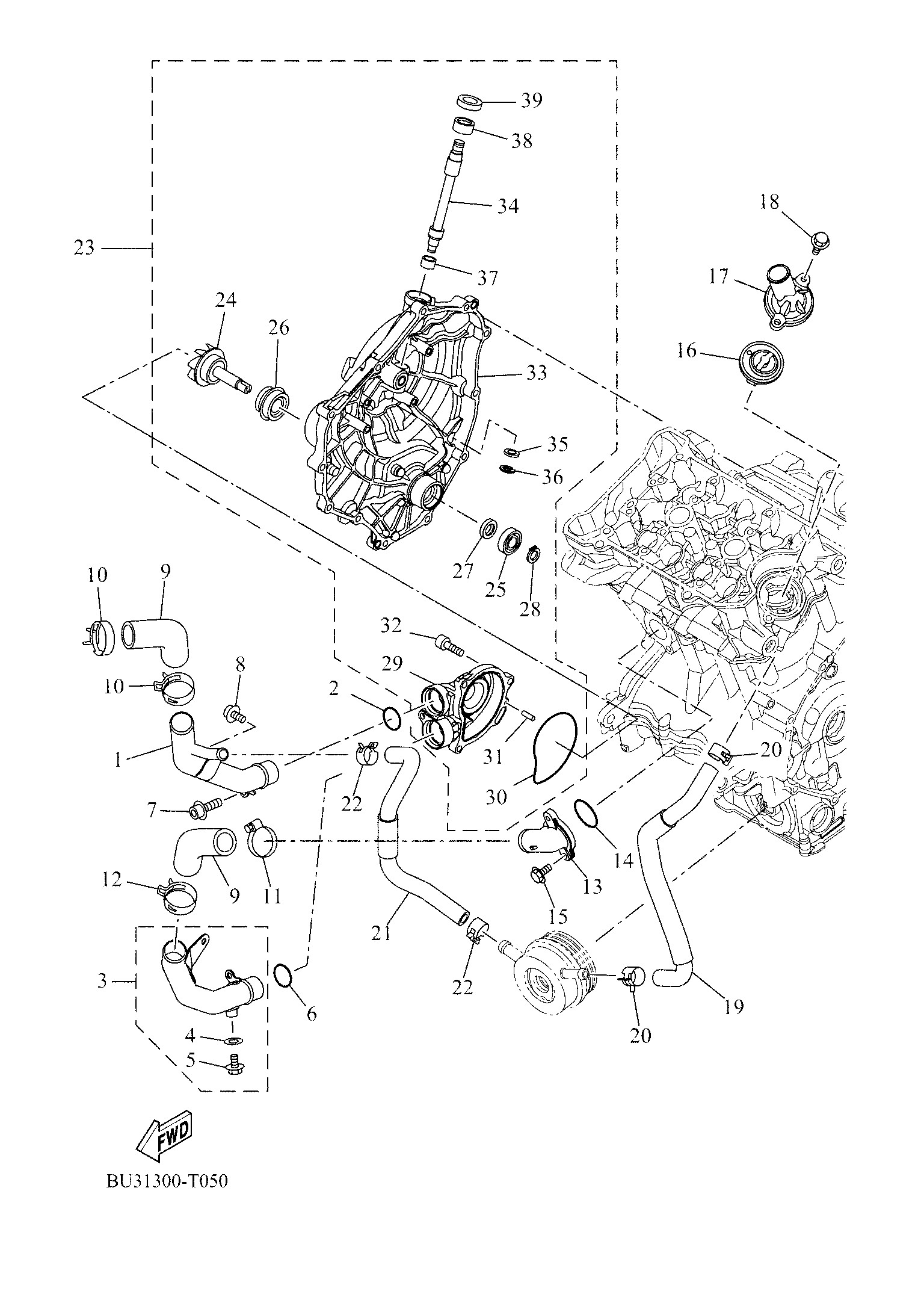

# | Ref. | unds. | Precio/unidad | |
---|---|---|---|---|
1 |
BU3E24810000 PIPE 1 |
1 | 28,48 € | + |
2 |
932102380200 O-RING |
1 | 0,75 € | + |
3 |
BU3E24820000 PIPE 2 |
1 | 29,56 € | + |
4 |
904300601400 GASKET |
1 | 1,88 € | + |
5 |
950220601000 .BOLT, FLANGE |
1 | 0,37 € | + |
6 |
932102380200 O-RING |
1 | 0,75 € | + |
7 |
913140601400 BOLT, HEXAGON SOCKET HEAD |
1 | 0,42 € | + |
8 |
901100615200 BOLT, HEXAGON SOCKET HEAD |
1 | 0,69 € | + |
9 |
BU3E25760000 HOSE 1 |
1 | 3,21 € | + |
10 |
90467290A000 CLIP |
1 | 5,43 € | + |
11 |
904503500100 HOSE CLAMP ASSY |
1 | 5,85 € | + |
12 |
90467290A000 CLIP |
1 | 5,43 € | + |
13 |
BU3E24690000 JOINT 1 |
1 | 16,63 € | + |
14 |
932103378600 JUNTA TORICA |
1 | 4,12 € | + |
15 |
958120602000 BOLT, FLANGE |
1 | 1,01 € | + |
16 |
1WS124100000 THERMOSTAT ASSY |
1 | 40,34 € | + |
17 |
BU3E24130000 COVER, THERMOSTAT |
1 | 10,24 € | + |
18 |
958170602000 BOLT, FLANGE |
1 | 1,01 € | + |
19 |
BU3E25880000 HOSE 5 |
1 | 6,34 € | + |
20 |
90467170A600 CLIP |
1 | 3,16 € | + |
21 |
BU3E25890000 HOSE 6 |
1 | 4,72 € | + |
22 |
90467170A600 CLIP |
1 | 3,16 € | + |
23 |
BU3E24200000 WATER PUMP ASSY |
1 | 208,77 € | + |
24 |
1WS124500000 .IMPELLER SHAFT ASSY |
1 | 22,21 € | + |
25 |
933060010600 .BEARING |
1 | 13,60 € | + |
26 |
5VK124380000 .SEAL, MECHANICAL |
1 | 29,93 € | + |
27 |
2CR133380000 .SEAL |
1 | 9,23 € | + |
28 |
990091240000 CIRCLIP |
1 | 1,41 € | + |
29 |
1WS124220000 .COVER, HOUSING |
1 | 40,61 € | + |
30 |
1WS124390000 .O-RING |
1 | 14,75 € | + |
31 |
936031200700 .PIN, DOWEL |
1 | 1,78 € | + |
32 |
901100627400 .BOLT, HEXAGON SOCKET HEAD |
1 | 1,61 € | + |
33 |
BU3E54210000 .COVER, CRANKCASE 2 |
1 | 101,58 € | + |
34 |
2D1163820000 .AXLE, PUSH LEVER |
1 | 39,06 € | + |
35 |
929070860000 .WASHER, PLATE |
1 | 0,49 € | + |
36 |
990010760000 .CIRCLIP |
1 | 0,49 € | + |
37 |
933171109600 .BEARING |
1 | 7,80 € | + |
38 |
933152157000 .BEARING |
1 | 4,97 € | + |
39 |
931021580100 .OIL SEAL |
1 | 3,93 € | + |
