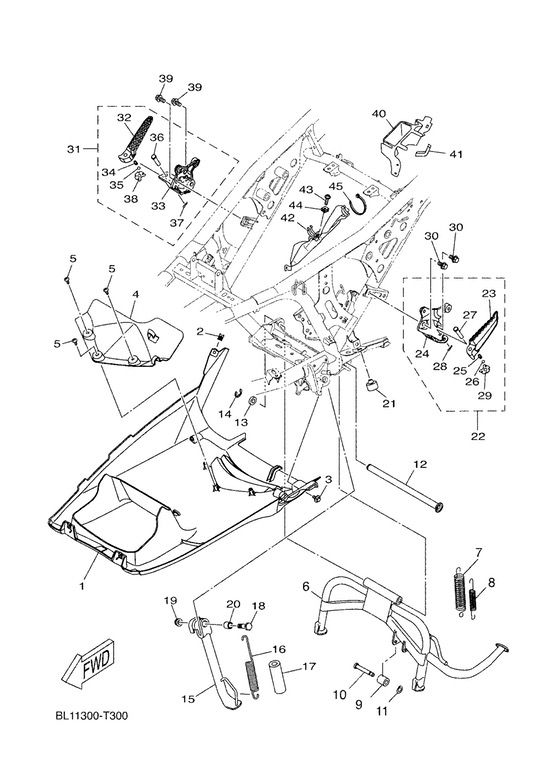

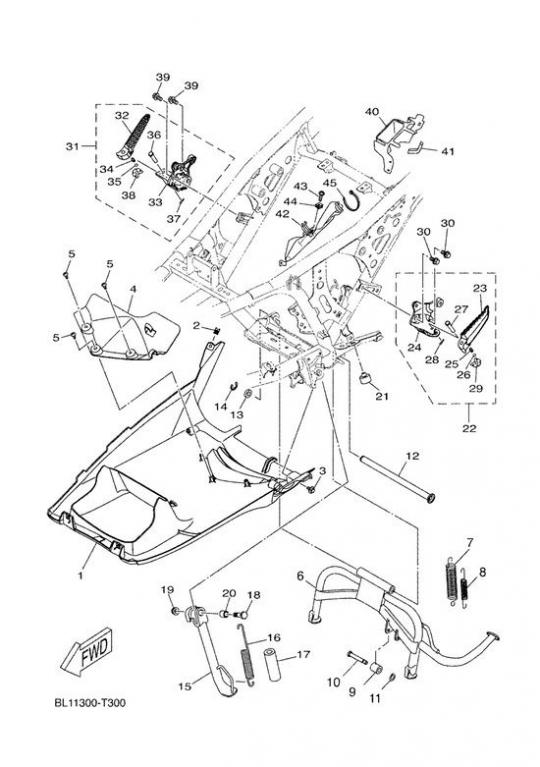

| # | Ref. | unds. | Precio/unidad | |
|---|---|---|---|---|
| 1 |
B74F83850000 COVER, UNDER |
1 | 55,44 € | + |
| 2 |
901830504200 NUT, SPRING |
5 | 0,51 € | + |
| 3 |
9010906X1800 BOLT |
1 | 8,17 € | + |
| 4 |
B74F838N0000 DUCT 1 |
1 | 16,67 € | + |
| 5 |
9016705X0600 SCREW, TAPPING |
1 | 1,76 € | + |
| 6 |
BL1F71110000 STAND, MAIN |
1 | 104,40 € | + |
| 7 |
9050640X0000 SPRING, TENSION |
1 | 17,86 € | + |
| 8 |
905062001000 SPRING, TENSION |
1 | 4,41 € | + |
| 9 |
4HC271140000 STOPPER, MAIN STAND |
1 | 22,77 € | + |
| 10 |
1SDF72610000 SHAFT |
1 | 17,16 € | + |
| 11 |
990800460000 PRESILLA REDONDA |
1 | 0,56 € | + |
| 12 |
58K271120200 SHAFT, MAIN STAND |
1 | 19,54 € | + |
| 13 |
902021515300 WASHER, PLATE |
1 | 2,34 € | + |
| 14 |
934301200800 CIRCLIP |
5 | 1,15 € | + |
| 15 |
B74F73110000 STAND, SIDE |
1 | 69,67 € | + |
| 16 |
905063281300 SPRING, TENSION |
1 | 5,39 € | + |
| 17 |
5VX273510000 GUIDE, SIDE STAND |
1 | 3,66 € | + |
| 18 |
901011083000 BOLT |
1 | 1,67 € | + |
| 19 |
956021020000 NUT, SELF-LOCKING |
1 | 3,48 € | + |
| 20 |
903871084900 COLLAR |
1 | 1,15 € | + |
| 21 |
2JWF71140000 STOPPER, MAIN STAND |
1 | 2,17 € | + |
| 22 |
B74F74300000 REAR FOOTREST ASSY 1 |
1 | 48,75 € | + |
| 23 |
2DPF74310100 .FOOTREST, REAR 1 |
1 | 16,59 € | + |
| 24 |
B74F741L0000 .BRACKET 4 |
1 | 27,66 € | + |
| 25 |
905011274300 SPRING, COMPRESSION |
1 | 4,25 € | + |
| 26 |
recambio |
0 | 0 € | + |
| 27 |
917010803800 PASADOR |
1 | 4,84 € | + |
| 28 |
914902502000 CHAVETA |
5 | 1,21 € | + |
| 29 |
B74F74370000 .WASHER, SPECIAL |
1 | 1,02 € | + |
| 30 |
901050880900 BOLT, FLANGE |
1 | 3,10 € | + |
| 31 |
B74F74400000 REAR FOOTREST ASSY 2 |
1 | 48,75 € | + |
| 32 |
2DPF74410100 .FOOTREST, REAR 2 |
1 | 16,59 € | + |
| 33 |
B74F742L0000 .BRACKET 5 |
1 | 27,66 € | + |
| 34 |
905011274300 SPRING, COMPRESSION |
1 | 4,25 € | + |
| 35 |
recambio |
0 | 0 € | + |
| 36 |
917010803800 PASADOR |
1 | 4,84 € | + |
| 37 |
914902502000 CHAVETA |
5 | 1,21 € | + |
| 38 |
B74F74370000 .WASHER, SPECIAL |
1 | 1,02 € | + |
| 39 |
901050880900 BOLT, FLANGE |
1 | 3,10 € | + |
| 40 |
BL1F175E0000 PANEL, INNER |
1 | 13,82 € | + |
| 41 |
9052010X0400 DAMPER, PLATE |
1 | 8,26 € | + |
| 42 |
BL1F172W0000 COVER |
1 | 22,64 € | + |
| 43 |
9016705X0600 SCREW, TAPPING |
1 | 1,76 € | + |
| 44 |
901830504200 NUT, SPRING |
5 | 0,51 € | + |
| 45 |
4KHH39360100 BAND, SWITCH CORD |
1 | 2,94 € | + |
