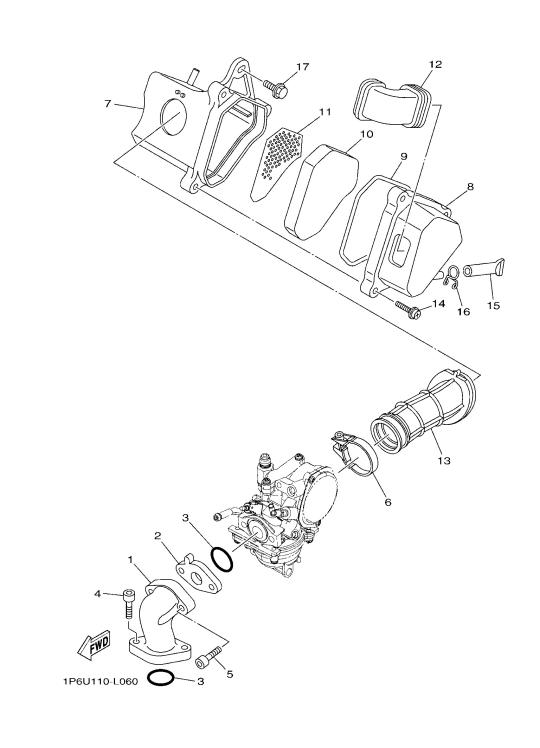

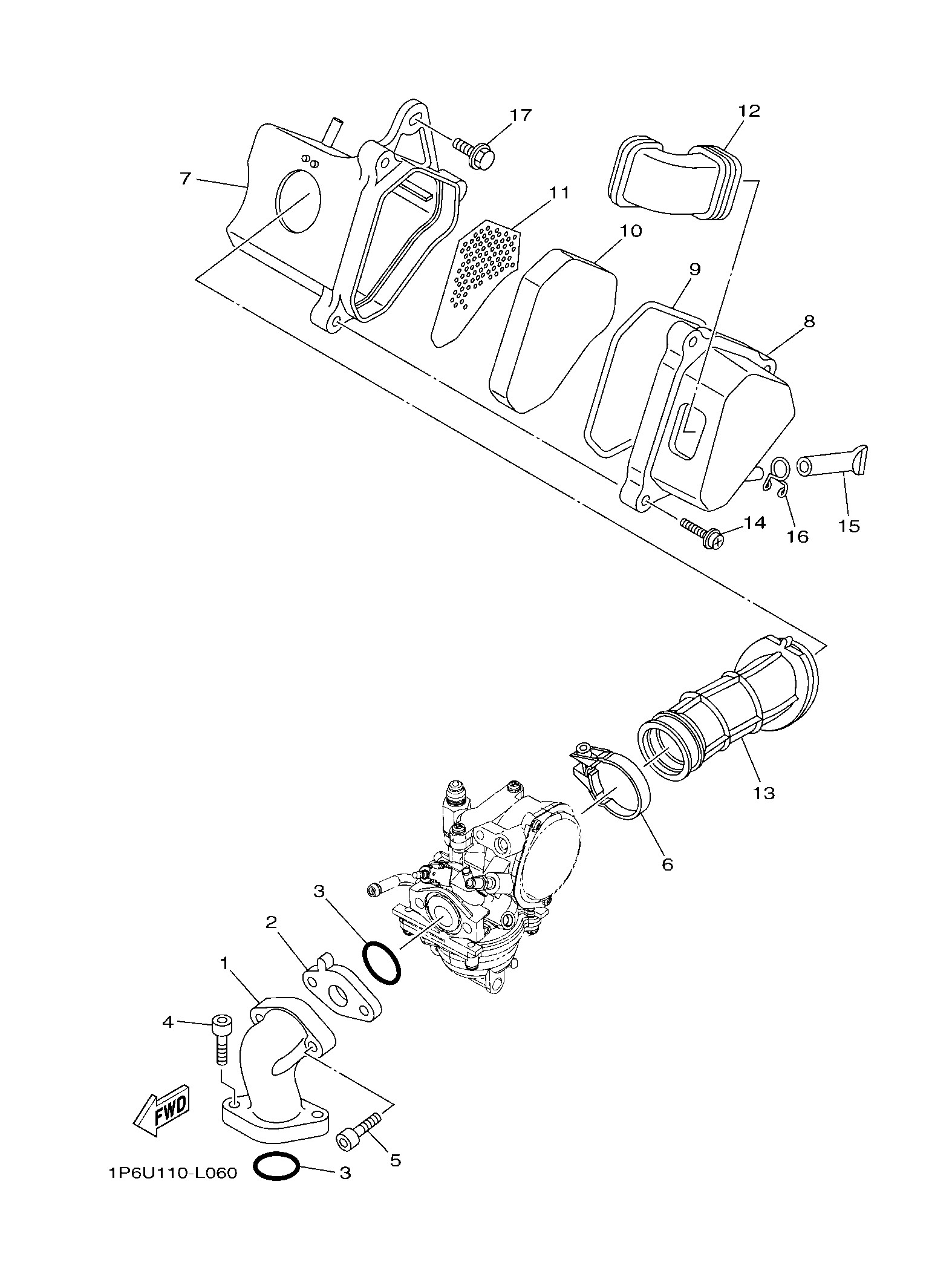

INTAKE

Volver al despiece completo

#	Ref.	unds.	Precio/unidad
1	1P6E35862000 JOINT, CARBURETOR 1	1	44,14 €	+
1	1P6E35862000 JOINT, CARBURETOR 1	1	44,14 €	+
1	1P6E35861000 TOBERA DE CARBURADOR 1	1	44,14 €	+
2	1P6E35950000 JOINT	1	5,03 €	+
2	1P6E35950000 JOINT	1	5,03 €	+
3	932102280300 O-RING	1	2,25 €	+
3	932102280300 O-RING	1	2,25 €	+
4	913170602000 BOLT, HEXAGON SOCKET HEAD	1	0,33 €	+
4	913170602000 BOLT, HEXAGON SOCKET HEAD	1	0,33 €	+
5	913170603000 BOLT, HEXAGON SOCKET HEAD	1	2,79 €	+
5	913170603000 BOLT, HEXAGON SOCKET HEAD	1	2,79 €	+
6	1P6E35750100 BAND	1	21,34 €	+
6	1P6E35750100 BAND	1	21,34 €	+
7	1P6E44110100 CASE, AIR CLEANER 1	1	35,72 €	+
7	1P6E44110100 CASE, AIR CLEANER 1	1	35,72 €	+
8	1P6E44120000 CAP, CLEANER CASE 1	1	52,03 €	+
8	1P6E44120000 CAP, CLEANER CASE 1	1	52,03 €	+
9	1P6E44520000 SEAL	1	11,48 €	+
9	1P6E44520000 SEAL	1	11,48 €	+
10	1P6E44510000 ELEMENTO DEL FILTRO DEL AIRE	1	8,97 €	+
10	1P6E44510100 ELEMENT, AIR CLEANER	1	8,97 €	+
11	1P6E44720000 PLATE, ELEMENT	1	9,78 €	+
11	1P6E44720000 PLATE, ELEMENT	1	9,78 €	+
12	1P6E44370000 DUCT	1	12,39 €	+
12	1P6E44370000 DUCT	1	12,39 €	+
13	1P6E44531000 JOINT, AIR CLEANER 1	1	21,02 €	+
13	1P6E44531000 JOINT, AIR CLEANER 1	1	21,02 €	+
14	976020522500 SCREW, PAN HEAD WITH WASHER	1	3,53 €	+
14	976020522500 SCREW, PAN HEAD WITH WASHER	1	3,53 €	+
15	4FPE443E0000 PIPE, DRAIN	1	7,46 €	+
15	4FPE443E0000 PIPE, DRAIN	1	7,46 €	+
16	904671000800 CLIP	1	1,88 €	+
16	904671000800 CLIP	1	1,88 €	+
17	901190604400 BOLT, WITH WASHER	1	1,33 €	+
17	901190604400 BOLT, WITH WASHER	1	1,33 €	+
