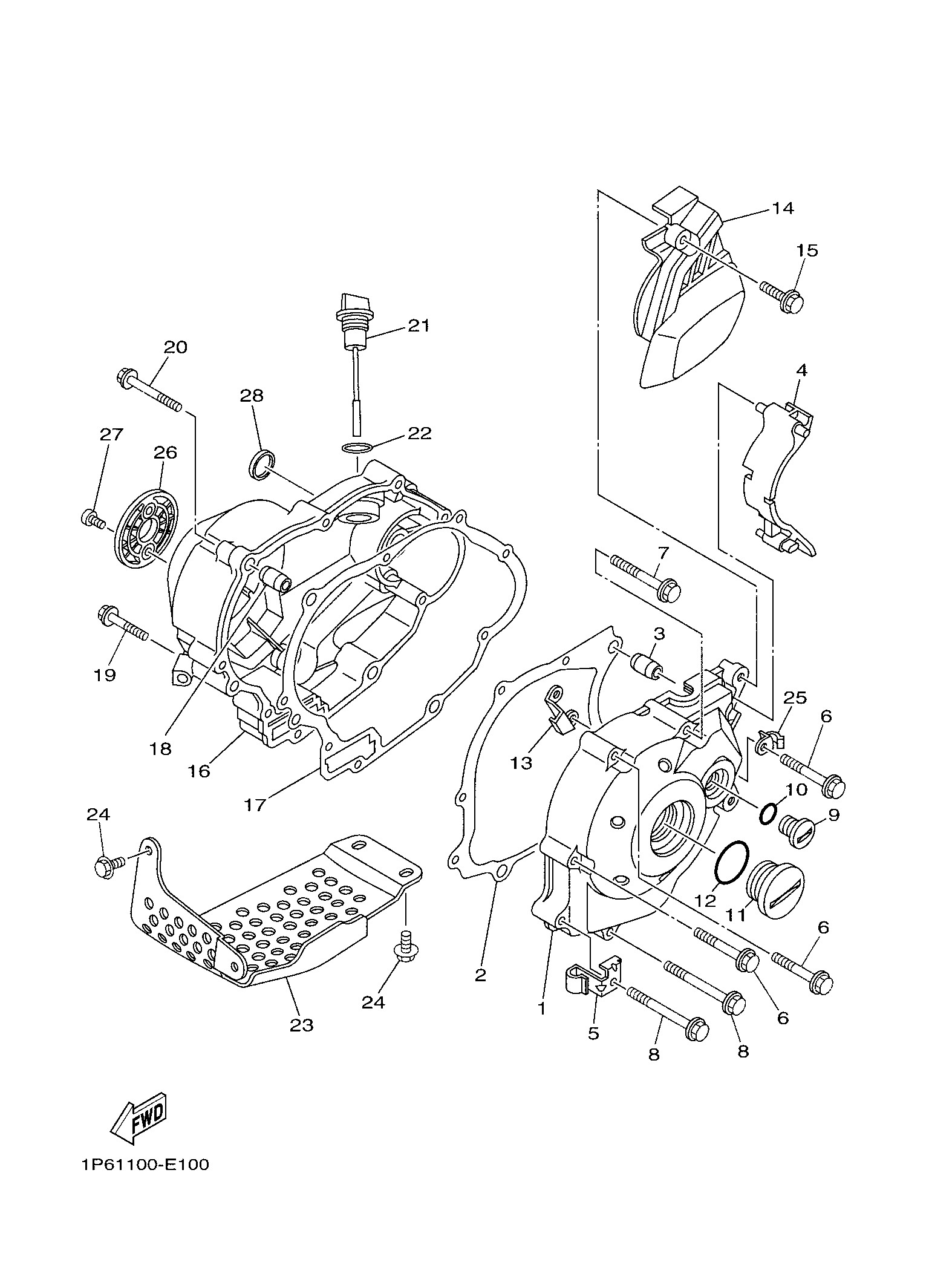

CRANKCASE COVER 1

Volver al despiece completo

#	Ref.	unds.	Precio/unidad
1	1P6E54112000 COVER, CRANKCASE 1	1	361,89 €	+
2	1P6E54510000 GASKET, CRANKCASE COVER 1	1	11,61 €	+
3	995301011400 PIN, DOWEL	1	1,28 €	+
4	1P6E74660000 GUIDE, CHAIN	1	96,26 €	+
5	1P6E54840100 GRAMPA 2	1	4,39 €	+
6	950270604000 BOLT, FLANGE	1	1,33 €	+
7	950270605000 BOLT, FLANGE	1	1,01 €	+
8	90105065A100 BOLT, FLANGE	1	0,75 €	+
9	2CJE51670000 PLUG, BLIND 1	1	8,41 €	+
10	932101489900 O-RING	1	0,97 €	+
11	2CJE51680000 PLUG, BLIND 2	1	9,60 €	+
12	932103281600 O-RING	1	0,86 €	+
13	1P6E51130000 PLATE	1	1,41 €	+
14	1P6E54180000 COVER, CHAIN CASE	1	31,97 €	+
15	950220602500 BOLT, FLANGE	1	0,55 €	+
16	1P6E54212000 COVER, CRANKCASE 2	1	60,89 €	+
17	1P6E54610000 GASKET, CRANKCASE COVER 2	1	11,61 €	+
18	995301011400 PIN, DOWEL	1	1,28 €	+
19	950270604000 BOLT, FLANGE	1	1,33 €	+
20	950270605000 BOLT, FLANGE	1	1,01 €	+
21	1P6E53620000 PLUG, OIL LEVEL	1	30,79 €	+
22	932101980900 O-RING	1	4,12 €	+
23	1P6E54360100 COVER, STARTING MOTOR	1	47,05 €	+
24	958220801600 BOLT, FLANGE	1	1,28 €	+
25	904650880300 CLAMP	1	8,41 €	+
26	1P6E54310000 COVER, CRANKCASE 3	1	25,47 €	+
27	985070500800 SCREW, PAN HEAD	1	0,49 €	+
28	903382680200 PLUG	1	6,27 €	+
