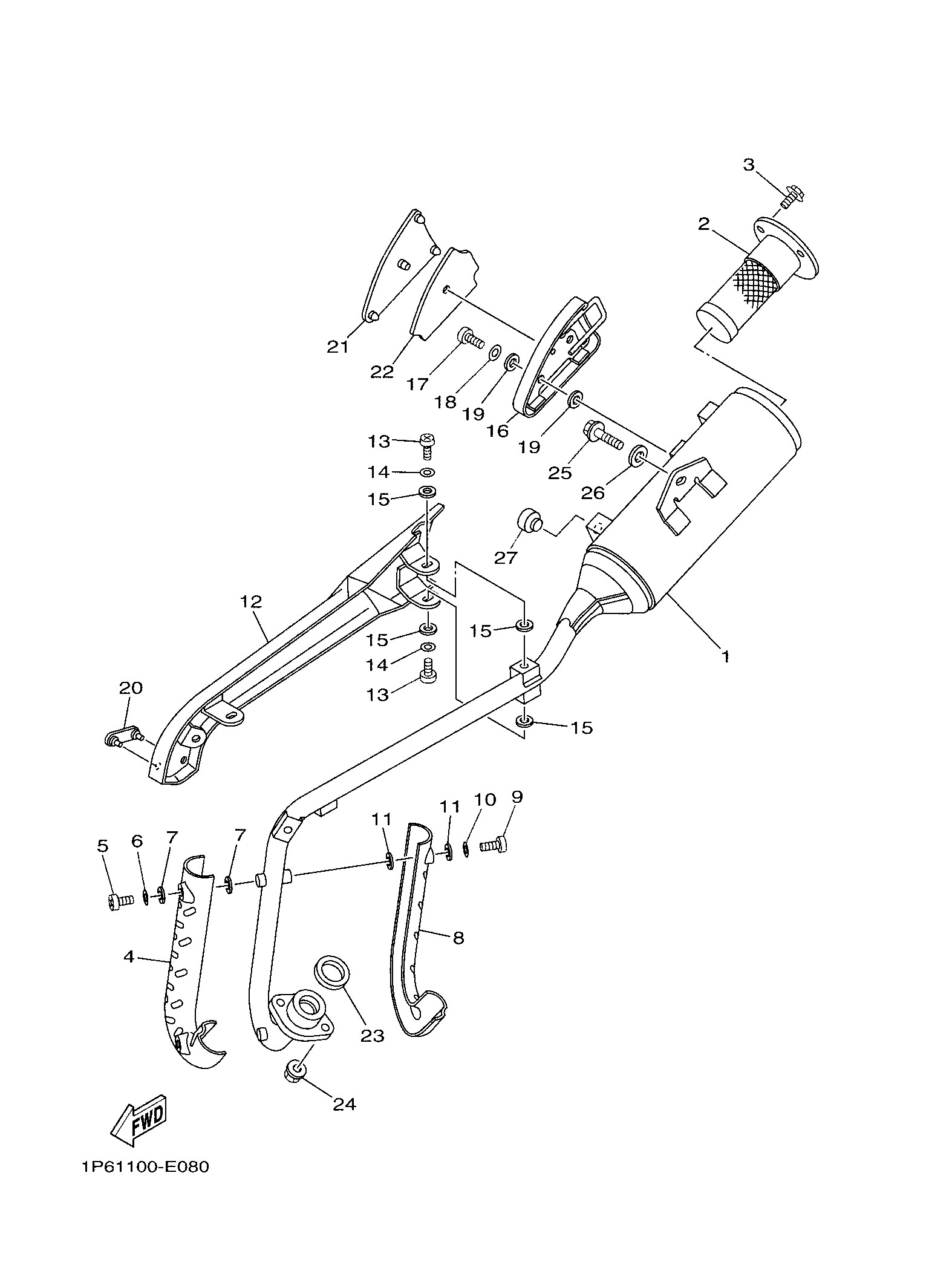

EXHAUST

Volver al despiece completo

#	Ref.	unds.	Precio/unidad
1	1P6E47110000 MUFFLER 1	1	391,71 €	+
2	1P6147800000 SPARK ARRESTER ASSY	1	126,88 €	+
3	950270601000 BOLT, FLANGE	1	0,17 €	+
4	1P6E47180000 PROTECTOR, MUFFLER 1	1	48,67 €	+
5	985070500800 SCREW, PAN HEAD	1	0,49 €	+
6	929070560000 WASHER, PLATE	1	0,49 €	+
7	1P6E47660000 WASHER, PROTECTOR	1	12,88 €	+
8	1P6E47280000 PROTECTOR, MUFFLER 2	1	50,30 €	+
9	985070500800 SCREW, PAN HEAD	1	0,49 €	+
10	929070560000 WASHER, PLATE	1	0,49 €	+
11	1P6E47660000 WASHER, PROTECTOR	1	12,88 €	+
12	1P6E47380000 PROTECTOR, MUFFLER 3	1	122,07 €	+
13	985070601000 SCREW, PAN HEAD	1	0,49 €	+
14	929070660000 WASHER, PLATE	1	0,49 €	+
15	902010580900 WASHER, PLATE	1	2,84 €	+
16	1P6E47580000 PROTECTOR, SILENCER	1	47,56 €	+
17	985070601000 SCREW, PAN HEAD	1	0,49 €	+
18	929070660000 WASHER, PLATE	1	0,49 €	+
19	902010580900 WASHER, PLATE	1	2,84 €	+
20	1P6E479H0000 COVER, 1	1	2,05 €	+
21	1P6E479J0000 COVER 2	1	6,12 €	+
22	1P6E47330000 MAT 1	1	3,97 €	+
23	1P6E46130000 GASKET, EXHAUST PIPE	1	8,38 €	+
24	957020650000 NUT, FLANGE	1	1,41 €	+
25	958120803000 BOLT, FLANGE	1	1,06 €	+
26	1P6E46170100 WASHER	1	2,30 €	+
27	22W241810000 DAMPER, LOCATING 1	1	2,74 €	+
