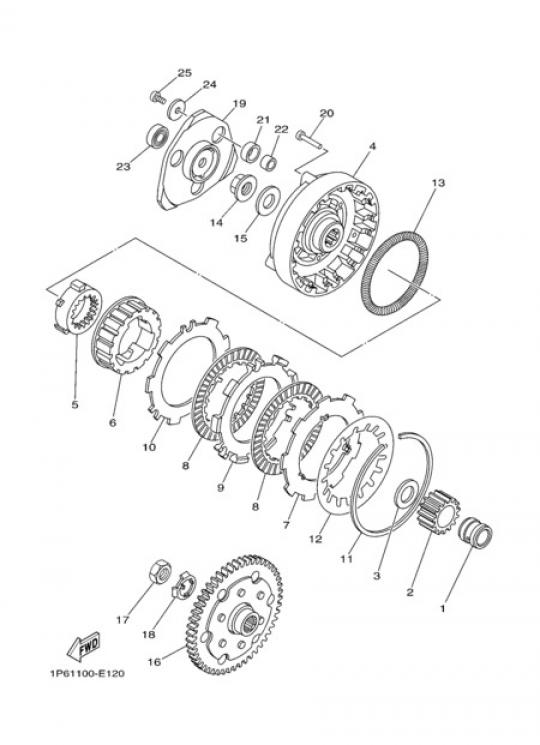

CLUTCH

Volver al despiece completo

#	Ref.	unds.	Precio/unidad
1	1P6E61160000 COLLAR 1	1	13,29 €	+
2	1P6E61110000 ENGRANAJE TRACC.PRIMARIA	1	86,89 €	+
3	902011780100 WASHER, PLATE	1	1,97 €	+
4	1P6E63110000 HOUSING, CLUTCH	1	114,78 €	+
5	1P6E68180100 GEAR, OUTER DRIVE	1	158,27 €	+
6	1P6E65710100 BOSS, CLUTCH	1	128,93 €	+
7	1P6E63240000 PLATE, CLUTCH 1	1	45,25 €	+
8	1P6E63300000 PLATE, FRICTION 2	1	55,02 €	+
9	1P6E63250000 PLATE, CLUTCH 2	1	23,75 €	+
10	1P6E63260000 PLATE, CLUTCH 3	1	38,11 €	+
11	1P6E68190000 CIRCLIP, CLUTCH	1	34,55 €	+
12	1P6E68210000 SPRING, DISK	1	59,32 €	+
13	1P6E68221000 SPRING, GARTER	1	59,58 €	+
14	901791480200 NUT	1	4,07 €	+
15	902081403300 WASHER, CONICAL SPRING	1	3,21 €	+
16	1P6E61700000 ENGRANAJE TRACCION PRIM.COMPL.	1	238,72 €	+
17	1P6E63770000 NUT, LOCK	1	1,97 €	+
18	1P6E63780000 WASHER, LOCK	1	3,88 €	+
19	1P6E65510000 PLATE, PRESSURE 1	1	22,52 €	+
20	1P6E65520000 PIN, GUIDE	1	1,97 €	+
21	1P6E61520000 BUSH	1	27,68 €	+
22	1P6E61250000 ABSORBER 2	1	1,28 €	+
23	93306900Y000 BEARING	1	24,68 €	+
24	902010581000 WASHER, PLATE	1	0,55 €	+
25	9851N0501200 TORNILLO	1	1,01 €	+
