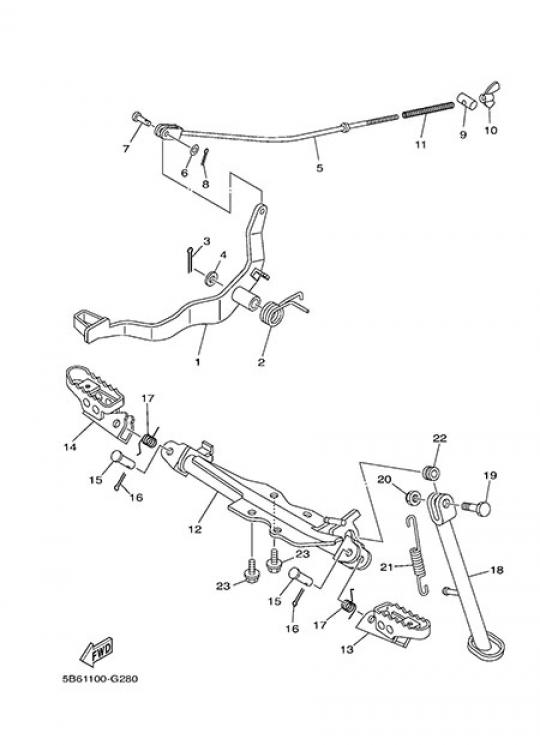

STAND & FOOTREST

Volver al despiece completo

#	Ref.	unds.	Precio/unidad
1	5B6272110000 PEDAL, BRAKE	1	80,80 €	+
2	905084001600 SPRING, TORSION	1	14,26 €	+
3	914022002000 PIN, COTTER	1	1,92 €	+
4	929021260000 WASHER, PLATE	1	0,49 €	+
5	5B6272310000 ROD, BRAKE	1	26,65 €	+
6	929020620000 WASHER	1	0,49 €	+
7	902400607600 PIN, CLEVIS	1	3,21 €	+
8	914022001200 PIN, COTTER	1	1,78 €	+
9	902491200800 PIN	1	3,43 €	+
10	901750601300 NUT, WING	1	1,24 €	+
11	905011024500 SPRING, COMPRESSION	1	2,47 €	+
12	5B6274110000 FOOTREST 1	1	207,74 €	+
13	3LD274110800 APOYAPIE 1	1	27,41 €	+
14	3LD274210800 APOYAPIE 2	1	26,11 €	+
15	902401000200 PIN, CLEVIS	1	7,50 €	+
16	914022501500 PIN, COTTER	1	1,19 €	+
17	905082000700 SPRING, TORSION	1	3,60 €	+
18	5B6273110000 STAND, SIDE	1	55,76 €	+
19	901011000300 BOLT	1	3,93 €	+
20	901851003700 NUT, SELF-LOCKING	1	4,24 €	+
21	905062627000 SPRING, TENSION	1	8,96 €	+
22	903871000300 COLLAR	1	8,59 €	+
23	958120801600 BOLT, FLANGE	1	1,28 €	+
