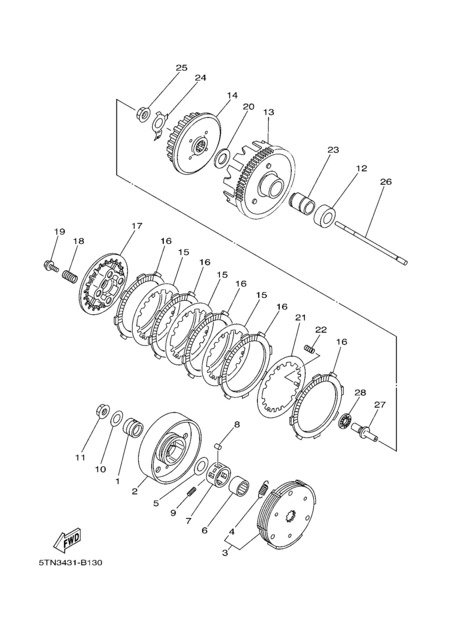

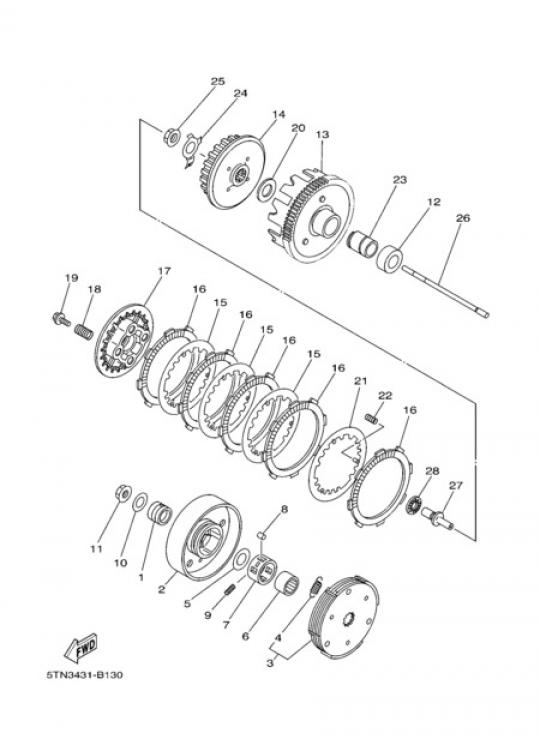

CLUTCH

Volver al despiece completo

#	Ref.	unds.	Precio/unidad
1	903871680300 COLLAR	1	12,56 €	+
2	2P2E66110000 CLUTCH HOUSING COMP.	1	285,17 €	+
3	2P2E66200000 PORTADOR DE EMBRAGUE COMPLETO	1	209,11 €	+
4	2P2E66260000 .SPRING, CLUTCH WEIGHT 1	1	5,21 €	+
5	90201167P700 WASHER, PLATE	1	9,60 €	+
6	5LME65120000 BOSS, CLUTCH HOUSING	1	43,72 €	+
7	5D9E65860000 CAGE	1	4,19 €	+
8	936061080000 PIN, DOWEL	1	0,69 €	+
9	905010480000 SPRING, COMPRESSION	1	0,33 €	+
10	902011201900 WASHER, PLATE	1	4,84 €	+
11	901791265900 NUT	1	6,44 €	+
12	905601738400 SPACER	1	3,88 €	+
14	5B9E63710000 CUBO, DE EMBRAGUE	1	40,16 €	+
15	2P2E63240000 PLATE, CLUTCH 1	1	10,32 €	+
16	2P2E63210000 PLATE, FRICTION	1	10,50 €	+
17	5B9E63510000 PLATO DE PRESION	1	19,47 €	+
18	90501203G200 SPRING, COMPRESSION	1	1,78 €	+
19	901190582700 BOLT, WITH WASHER	1	1,50 €	+
20	90201178J500 WASHER, PLATE	1	1,13 €	+
21	2P2E63500000 PRESSURE PLATE ASSY	1	31,81 €	+
22	90501050F100 SPRING, COMPRESSION	1	0,59 €	+
23	903871700400 COLLAR	1	24,84 €	+
24	5TPE61350000 WASHER, LOCK	1	5,90 €	+
25	901791400100 NUT	1	5,90 €	+
26	5LME63570000 ROD, PUSH 2	1	32,98 €	+
27	5LME63560100 ROD, PUSH 1	1	28,00 €	+
28	93340210Y000 BEARING	1	28,91 €	+
