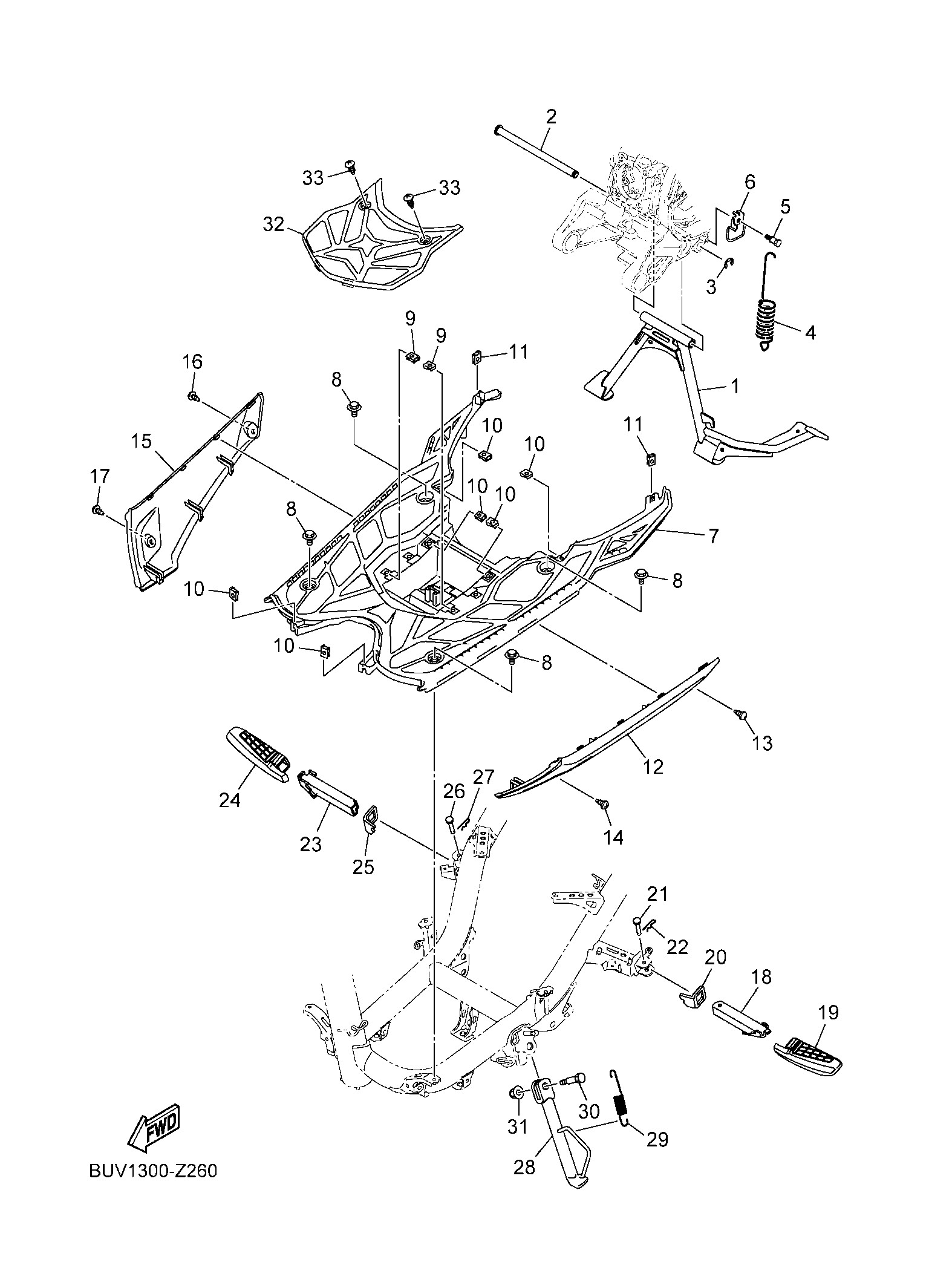

Inicio > Modelos Yamaha > 125cc SCOOTERS > RAYZR 125 > 2024 > Stand & footrest
Volver al despiece completo

# Ref. unds. Precio/unidad
1 B7JF71110100
STAND, MAIN 		1 125,54 € +
2 B7JF71120000
SHAFT, MAIN STAND 		1 12,10 € +
3 990020960000
CIRCLIP 		1 2,01 € +
4 905063582800
SPRING, TENSION 		1 7,74 € +
5 B7JF72540000
HOOK 		1 1,67 € +
6 B7JF72670000
GUIDE, WIRE 		1 1,67 € +
7 BUVF74810000
BOARD, FOOTREST 		1 87,60 € +
8 901090620200
BOLT 		1 1,26 € +
9 901830681800
NUT, SPRING 		1 0,42 € +
10 901830580700
NUT, SPRING 		5 0,51 € +
11 90183050A700
NUT, SPRING 		1 2,87 € +
12 B2UF74820000
MOLE, FOOTREST 		1 48,51 € +
13 901110582100
BOLT, HEXAGON SOCKET BUTTON 		1 0,75 € +
14 977075001200
SCREW, TRUSS HEAD TAPPING 		1 0,51 € +
15 B2UF74920000
MOLE, FOOTREST 2 		1 48,51 € +
16 901110582100
BOLT, HEXAGON SOCKET BUTTON 		1 0,75 € +
17 977075001200
SCREW, TRUSS HEAD TAPPING 		1 0,51 € +
18 B7JF74310000
FOOTREST, REAR 1 		1 28,83 € +
19 1GCF74330200
COVER, REAR FOOTREST 		1 2,78 € +
20 1GCF74450000
PLATE 1 		1 0,70 € +
21 902400681100
PIN, CLEVIS 		1 6,31 € +
22 904681200700
CLIP 		5 2,08 € +
23 B7JF74410000
FOOTREST, REAR 2 		1 28,83 € +
24 1GCF74440200
COVER, REAR FOOTREST 		1 2,78 € +
25 1GCF74460000
PLATE 2 		1 0,70 € +
26 902400681100
PIN, CLEVIS 		1 6,31 € +
27 904681200700
CLIP 		5 2,08 € +
28 B7JF73110000
STAND, SIDE 		1 52,20 € +
29 905062081800
SPRING, TENSION 		1 1,08 € +
30 B7JF72170000
BOLT 		1 5,18 € +
31 956021020000
NUT, SELF-LOCKING 		1 3,48 € +
32 B2UH21290000
COVER, BATTERY 		1 7,42 € +
33 977025001600
SCREW, TAPPING 		5 0,51 € +
