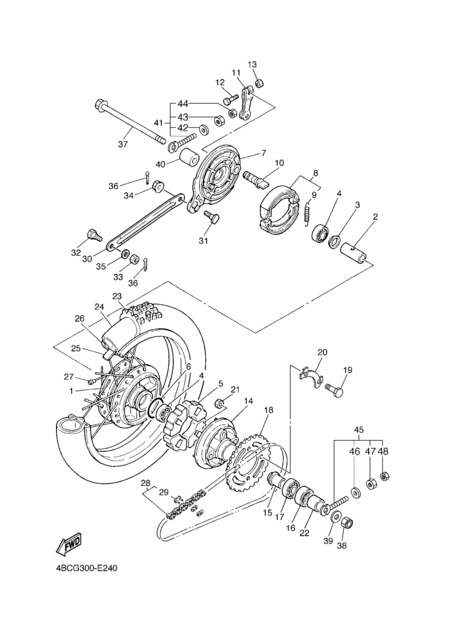

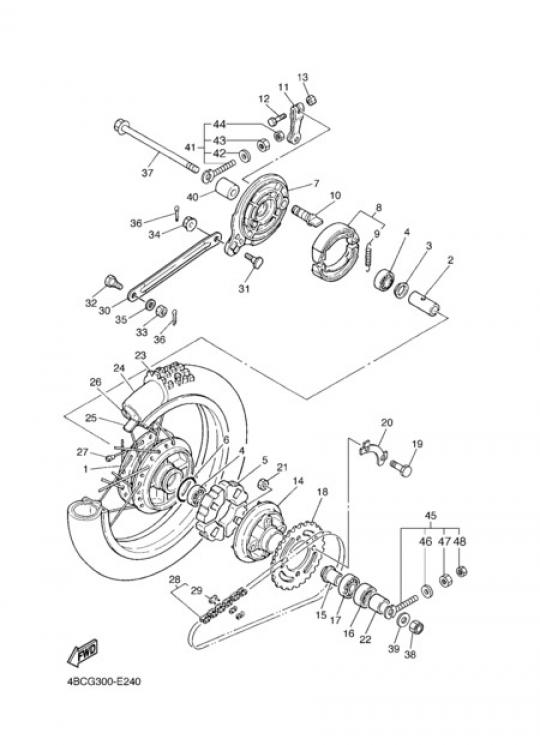

REAR WHEEL

Volver al despiece completo

#	Ref.	unds.	Precio/unidad
1	21W253110098 MASA TRASERA	1	108,70 €	+
2	905601214500 SPACER	1	15,45 €	+
3	102253150000 FLANGE, SPACER	1	2,14 €	+
4	933063011100 BEARING	1	30,65 €	+
5	21W253640000 DAMPER	1	10,24 €	+
6	932104104100 O-RING	1	0,75 €	+
7	31J253210098 PLACA DE ZAPATA DE FRENO	1	180,05 €	+
8	4BEW253E0000 BRAKE SHOE KIT	1	19,50 €	+
9	905061526000 .SPRING, TENSION	1	6,66 €	+
10	3Y6253510000 CAMSHAFT	1	28,70 €	+
11	538253550000 LEVER, CAMSHAFT	1	18,33 €	+
12	901010627800 BOLT	1	0,33 €	+
13	953070660000 .NUT	1	0,49 €	+
14	296253660198 EMBRAGUE DE MASA	1	87,49 €	+
15	21W253870000 AXLE, SPROCKET	1	22,63 €	+
16	931063000400 OIL SEAL	1	6,86 €	+
17	933060041600 BEARING	1	24,29 €	+
18	4BC254325000 CORONA	1	20,18 €	+
19	901010867200 BOLT	1	1,33 €	+
20	4AW254120000 WASHER	1	6,07 €	+
21	901700836600 TUERCA	1	1,13 €	+
22	90387207G300 COLLAR	1	13,07 €	+
23	94130121A700 TIRE (3.00-12 2PR)	1	65,73 €	+
24	942271221600 TUBE (2.75/3.00-12 TR4)	1	32,30 €	+
25	943301213000 BAND, RIM (3.00-12)	1	7,13 €	+
27	21W253040000 SPOKE SET, REAR	1	68,75 €	+
28	945616608400 CHAIN, DRIVE	1	31,66 €	+
29	946616600100 JUNTA CADENA	1	5,19 €	+
30	4BC253710000 BAR, TENSION	1	16,53 €	+
31	901090818300 BOLT	1	2,14 €	+
32	901090836800 BOLT	1	3,65 €	+
33	953070870000 NUT	1	1,19 €	+
34	957070850000 NUT, FLANGE	1	2,05 €	+
35	929070860000 .WASHER, PLATE	1	0,49 €	+
36	914012001200 PIN, COTTER	1	1,78 €	+
37	5HN253810000 AXLE, WHEEL	1	18,72 €	+
38	901851213400 TUERCA AUTOBLOCANTE	1	8,68 €	+
39	90201126A700 WASHER, PLATE	1	2,05 €	+
40	903871241200 COLLAR	1	9,78 €	+
41	3AC2538G1000 PULLER, CHAIN	1	8,90 €	+
42	90201061A500 .WASHER, PLATE	1	1,33 €	+
43	901700618400 .NUT	1	1,41 €	+
44	953070660000 .NUT	1	0,49 €	+
45	4GL2538G1000 PULLER, CHAIN	1	13,52 €	+
46	90201061A500 .WASHER, PLATE	1	1,33 €	+
47	901700618400 .NUT	1	1,41 €	+
48	953070660000 .NUT	1	0,49 €	+
