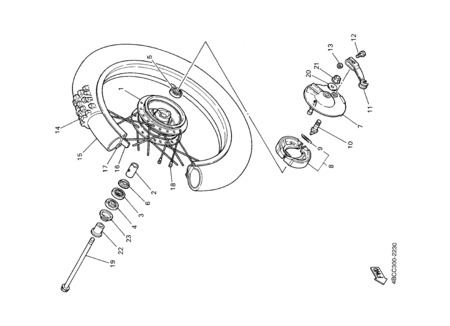

FRONT WHEEL

Volver al despiece completo

#	Ref.	unds.	Precio/unidad
1	451251110098 MASA DELANTERA	1	98,27 €	+
2	905601010300 SPACER	1	15,35 €	+
3	933062000400 BEARING	1	18,70 €	+
4	931061700600 OIL SEAL	1	4,07 €	+
5	933062000900 BEARING	1	18,70 €	+
6	2E9251160000 FLANGE, SPACER 2	1	2,05 €	+
7	3R0251210000 PLACA DE ZAPATA DE FRENO	1	Obsoleta
8	3ECW253A0000 JUEGO DE ZAPATA DE FRENO	1	19,63 €	+
9	905061408100 .SPRING, TENSION	1	4,61 €	+
10	1YT253510000 ARBOL DE LEVAS	1	24,21 €	+
11	451251550000 LEVER, CAMSHAFT 1	1	18,68 €	+
12	901010629100 BOLT	1	1,33 €	+
13	953070660000 .NUT	1	0,49 €	+
14	94125141A600 TIRE (2.50-14 2PR)	1	66,41 €	+
15	942251421500 TUBE (2.25/2.50-14 TR4)	1	28,74 €	+
16	943251412900 BAND, RIM (2.50-14)	1	7,77 €	+
17	944141422700 RIM (1.40-14)	1	88,18 €	+
18	3R0251040000 SPOKE SET, FRONT	1	68,75 €	+
19	5HN251810000 EJE DE LA RUEDA	1	19,74 €	+
20	929071020000 ARANDELA	1	0,86 €	+
21	956071020000 NUT, U FLANGE	1	3,16 €	+
22	903871074400 COLLAR	1	10,29 €	+
23	451251180000 COVER, HUB DUST	1	8,59 €	+
