Inicio > Modelos Yamaha > 125cc SCOOTERS > NMAX 125 > 2020 > Seat

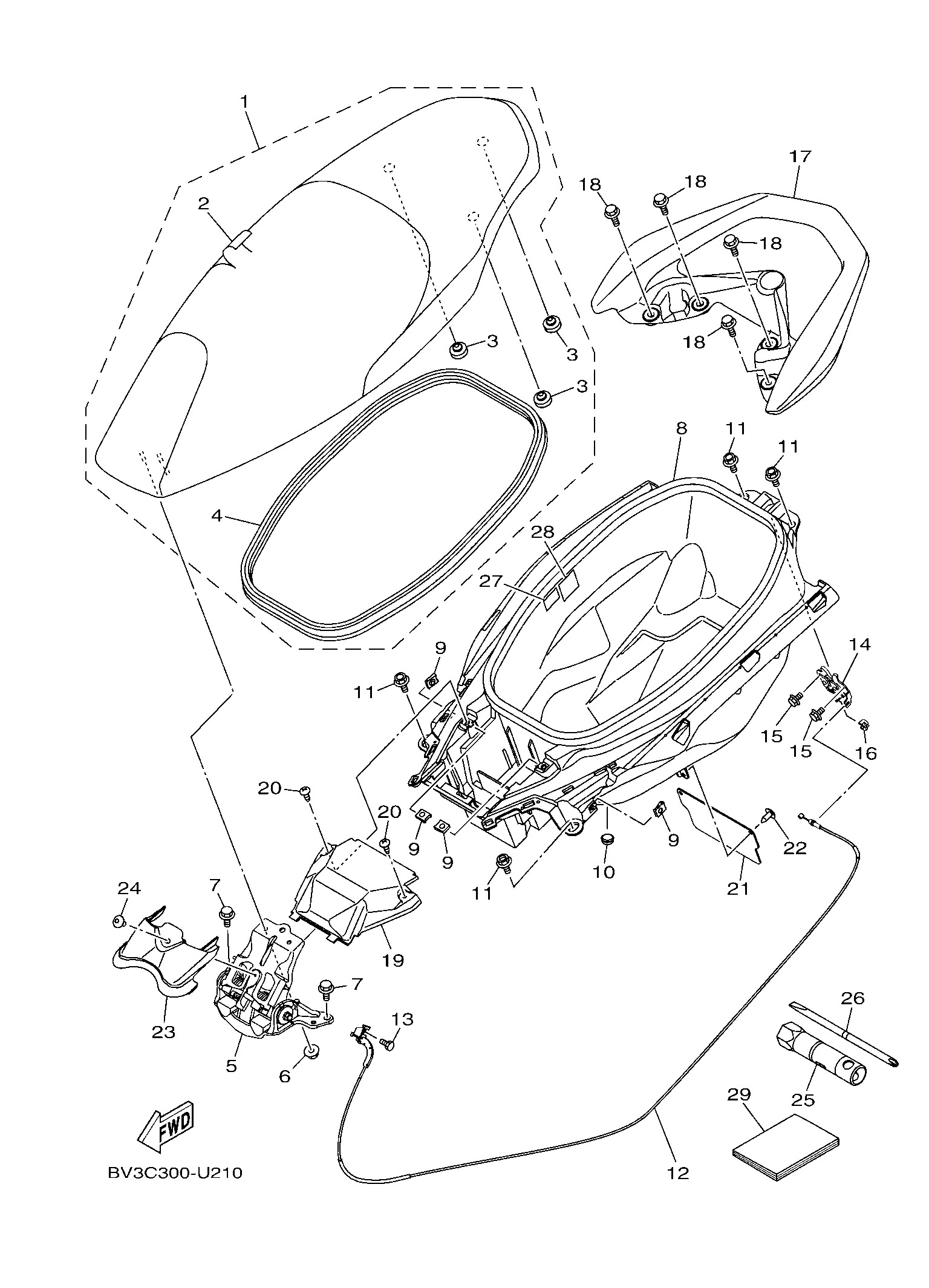

Volver al despiece completo

# Ref. unds. Precio/unidad
1 BV3F47300000
DOUBLE SEAT ASSY 		1 187,32 € +
2 BV3F470F0000
.SEAT COVER COMP. 		1 95,34 € +
3 5BPF47410000
.PAD, SEAT 		1 1,63 € +
4 2DPF475M0000
.SEAL 		1 7,73 € +
5 2DPF47720900
HINGE ASSY 		1 35,82 € +
6 957020650000
NUT, FLANGE 		1 1,43 € +
7 95D320601400
BOLT, FLANGE DEEP RECESS 		1 0,23 € +
8 2DPF473R1000
BOX 1 		1 100,74 € +
9 901830580700
NUT, SPRING 		5 0,51 € +
10 4USF61990000
PLUG, BLIND 		1 0,33 € +
11 901090622000
BOLT 		1 1,76 € +
12 2DPF478E0000
CABLE, SEAT LOCK 		1 25,48 € +
13 975270551200
BOLT, WITH WASHER 		1 0,18 € +
14 40DF47800100
SEAT LOCK ASSY 		1 20,86 € +
15 950220601200
BOLT, FLANGE 		1 0,37 € +
16 1S7F47680000
STOPPER 		1 10,07 € +
17 2DPF477300P3
HANDLE, SEAT 		1 68,58 € +
18 958220802500
BOLT, FLANGE 		1 1,35 € +
19 2DPH21290000
COVER, BATTERY 		1 21,01 € +
20 977025001600
SCREW, TAPPING 		5 0,51 € +
21 2DPF16210000
FLAP 		1 16,46 € +
22 902690681600
RIVET 		1 1,26 € +
23 2DPF842N0000
COVER 2 		1 25,37 € +
24 901110581600
BOLT,HEX. SOCKET BUTTON 		1 0,37 € +
25 2DPF814F0000
BOX, SPARK PLUG 		1 5,23 € +
26 3AYF81520000
DRIVER 		1 4,18 € +
27 2DPF16680000
LABEL, TIRE 		1 Obsoleta
28 BV32118N0000
LABEL 		1 2,83 € +
29 BV3F8199E100
MANUAL,OWNER'S 		1 21,58 € +
29 BV3F8199F100
MANUAL,OWNER'S 		1 21,58 € +
29 BV3F8199G100
MANUAL,OWNER'S 		1 Obsoleta
29 BV3F8199H100
MANUAL,OWNER'S 		1 Obsoleta
29 BV3F8199S100
MANUAL,OWNER'S 		1 21,09 € +
29 BV3F819DD100
MANUAL,OWNER'S 		1 21,58 € +
29 BV3F819DM100
MANUAL,OWNER'S 		1 21,58 € +
29 BV3F819DP100
MANUAL,OWNER'S 		1 21,58 € +
