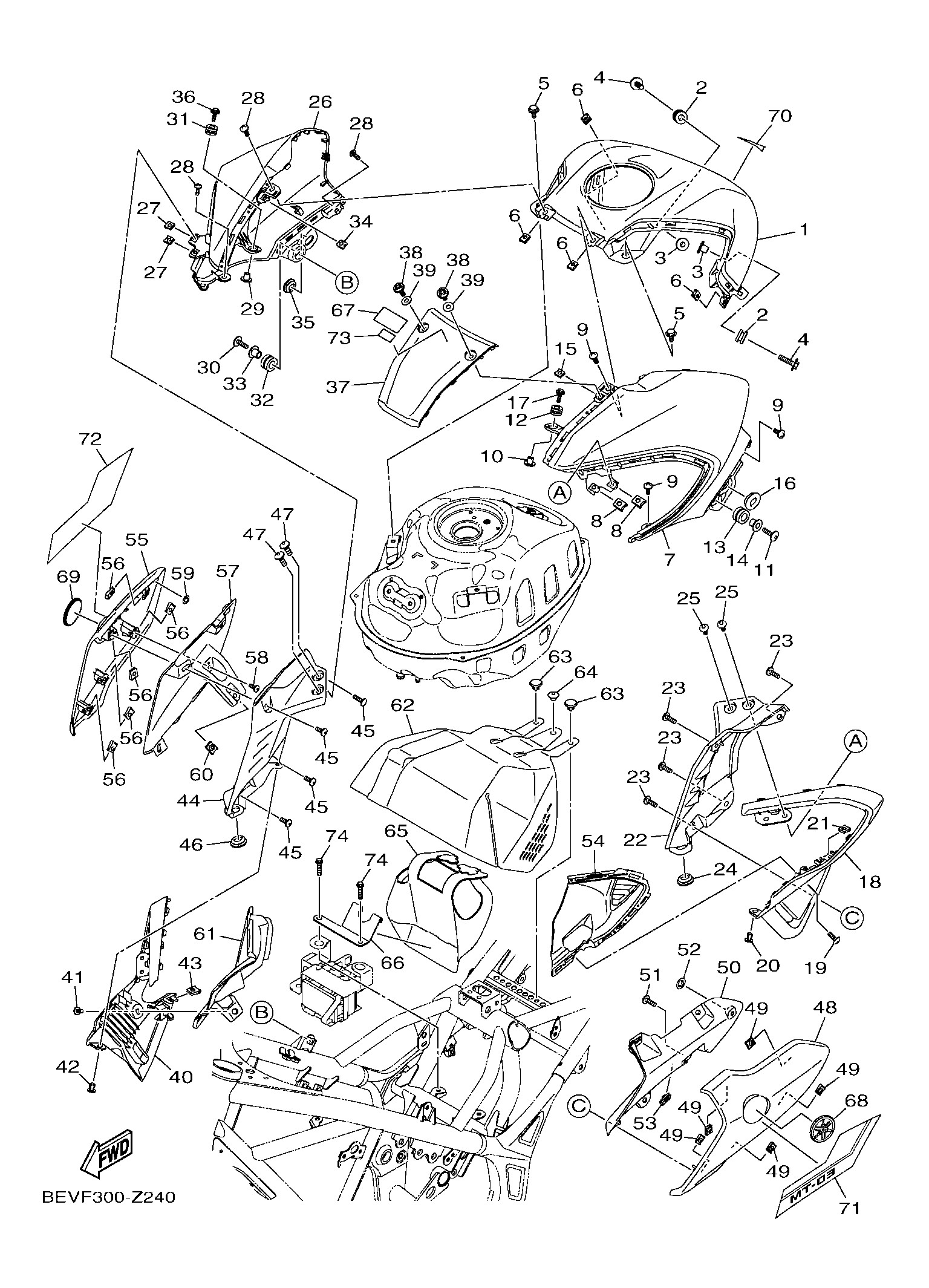

FUEL TANK 2

Volver al despiece completo

#	Ref.	unds.	Precio/unidad
1	B9TF41B100P2 TAPA, DEP SITO	1	33,47 €	+
1	B9TF41B100P4 COVER, TANK	1	Obsoleta
1	B9TF41B100P3 TAPA, DEP SITO	1	28,70 €	+
2	904801280800 GROMMET	1	0,17 €	+
3	903870689900 COLLAR	1	0,86 €	+
4	901190630900 TORNILLO,WITH ARANDELA	1	1,65 €	+
5	90109068B200 BOLT	1	1,97 €	+
6	901830580700 NUT, SPRING	1	0,49 €	+
7	B9TF412900P0 CUBIERTA LATERAL 1	1	43,67 €	+
7	B9TF412900P5 COVER, SIDE 1	1	Obsoleta
7	B9TF412900P4 CUBIERTA LATERAL 1	1	43,67 €	+
8	901830580700 NUT, SPRING	1	0,49 €	+
9	977025001600 SCREW, TAPPING	1	0,49 €	+
10	903870689900 COLLAR	1	0,86 €	+
11	901100608700 TORNILLO ALLEN	1	2,52 €	+
12	904801280800 GROMMET	1	0,17 €	+
13	904801700700 TAPON	1	1,73 €	+
14	903871010700 ESPACIADOR	1	4,12 €	+
15	901830507600 NUT, SPRING	1	1,88 €	+
16	904800155900 GROMMET	1	1,28 €	+
17	901190502000 TORNILLO CON ARANDELA	5	1,19 €	+
18	B9TF838N0000 CONDUCTO 1	1	22,85 €	+
19	901600500900 SCREW, ROUND TAPPING	1	0,42 €	+
20	902690681600 RIVET	1	1,24 €	+
21	901830580700 NUT, SPRING	1	0,49 €	+
22	B9TF137K0000 GUIA, AIRE 3	1	19,56 €	+
23	977075001600 SCREW, TRUSS HEAD TAPPING	1	0,49 €	+
24	904800155900 GROMMET	1	1,28 €	+
25	901600500900 SCREW, ROUND TAPPING	1	0,42 €	+
26	B9TF413900P4 CUBIERTA LATERAL 2	1	43,67 €	+
26	B9TF413900P5 COVER, SIDE 2	1	Obsoleta
26	B9TF413900P0 CUBIERTA LATERAL 2	1	43,67 €	+
27	901830580700 NUT, SPRING	1	0,49 €	+
28	977025001600 SCREW, TAPPING	1	0,49 €	+
29	903870689900 COLLAR	1	0,86 €	+
30	901100608700 TORNILLO ALLEN	1	2,52 €	+
31	904801280800 GROMMET	1	0,17 €	+
32	904801700700 TAPON	1	1,73 €	+
33	903871010700 ESPACIADOR	1	4,12 €	+
34	901830507600 NUT, SPRING	1	1,88 €	+
35	904800155900 GROMMET	1	1,28 €	+
36	901190502000 TORNILLO CON ARANDELA	5	1,19 €	+
37	B9TF171A00P0 TAPA, TOP	1	20,10 €	+
37	B9TF171A00P5 TAPA, TOP	1	20,10 €	+
37	B9TF171A00P4 TAPA, TOP	1	20,10 €	+
38	901110505600 TORNILLO	1	3,01 €	+
39	902020518000 ARANDELA DE PLANA	1	2,52 €	+
40	B9TF838R0000 CONDUCTO 2	1	22,85 €	+
41	901600500900 SCREW, ROUND TAPPING	1	0,42 €	+
42	902690681600 RIVET	1	1,24 €	+
43	901830580700 NUT, SPRING	1	0,49 €	+
44	B9TF137L0000 GUIA, AIRE 4	1	19,56 €	+
45	977075001600 SCREW, TRUSS HEAD TAPPING	1	0,49 €	+
46	904800155900 GROMMET	1	1,28 €	+
47	901600500900 SCREW, ROUND TAPPING	1	0,42 €	+
48	B9TF137W00P6 SCOOP, AIRE 1	1	100,41 €	+
48	B9TF137W00P7 SCOOP, AIRE 1	1	100,41 €	+
48	B9TF137W00P5 SCOOP, AIRE 1	1	100,41 €	+
49	901830580700 NUT, SPRING	1	0,49 €	+
50	B9TF836K0000 PANEL 1	1	19,56 €	+
51	977075001600 SCREW, TRUSS HEAD TAPPING	1	0,49 €	+
52	9018305M0200 NUT, SPRING	1	0,49 €	+
53	901830580700 NUT, SPRING	1	0,49 €	+
54	B9TF837N0000 REJILLA, ADMISION DE AIRE 1	1	16,36 €	+
55	B9TF137X00P5 CUBIERTA DE GUIA DE AIRE 2	1	100,41 €	+
55	B9TF137X00P7 CUBIERTA DE GUIA DE AIRE 2	1	100,41 €	+
55	B9TF137X00P6 CUBIERTA DE GUIA DE AIRE 2	1	100,41 €	+
56	901830580700 NUT, SPRING	1	0,49 €	+
57	B9TF836L0000 PANEL 2	1	19,56 €	+
58	977075001600 SCREW, TRUSS HEAD TAPPING	1	0,49 €	+
59	9018305M0200 NUT, SPRING	1	0,49 €	+
60	901830580700 NUT, SPRING	1	0,49 €	+
61	B9TF837R0000 REJILLA, ADMISION DE AIRE 2	1	16,36 €	+
62	B04E449E0000 recambio	1	10,51 €	+
63	902690707600 RIVET	1	1,24 €	+
64	902690900100 REMACHE	1	1,24 €	+
65	B04F16420000 GUARDA DE CHARNELA	1	12,18 €	+
66	B04F15330000 recambio	1	7,31 €	+
67	B74F15680000 LABEL, WARNING	1	1,28 €	+
68	1WDF413B0100 EMBLEMA	1	16,85 €	+
69	1WDF413B0100 EMBLEMA	1	16,85 €	+
70	B04F4254C100 CALCOMANIA DEP. COMBUSTIBLE 7	1	2,88 €	+
70	B04F4254J000 CALCOMANIA DEP. COMBUSTIBLE 7	1	2,88 €	+
70	B04F4254F000 CALCOMANIA DEP. COMBUSTIBLE 7	1	2,88 €	+
71	BEVF83910000 CALCOMANIA DE BOVEDA 1	1	18,55 €	+
71	BEVF83912000 GRAPHIC 1	1	Obsoleta
71	B6WF83915000 CALCOMANIA DE BOVEDA 1	1	9,50 €	+
72	BEVF83920000 CALCOMANIA DE BOVEDA 2	1	18,55 €	+
72	BEVF83922000 GRAPHIC 2	1	Obsoleta
72	B6WF83925000 CALCOMANIA DE BOVEDA 2	1	9,50 €	+
73	BB8F817K3000 LABEL, FUEL	1	1,61 €	+
74	950220602500 BOLT, FLANGE	1	0,55 €	+
