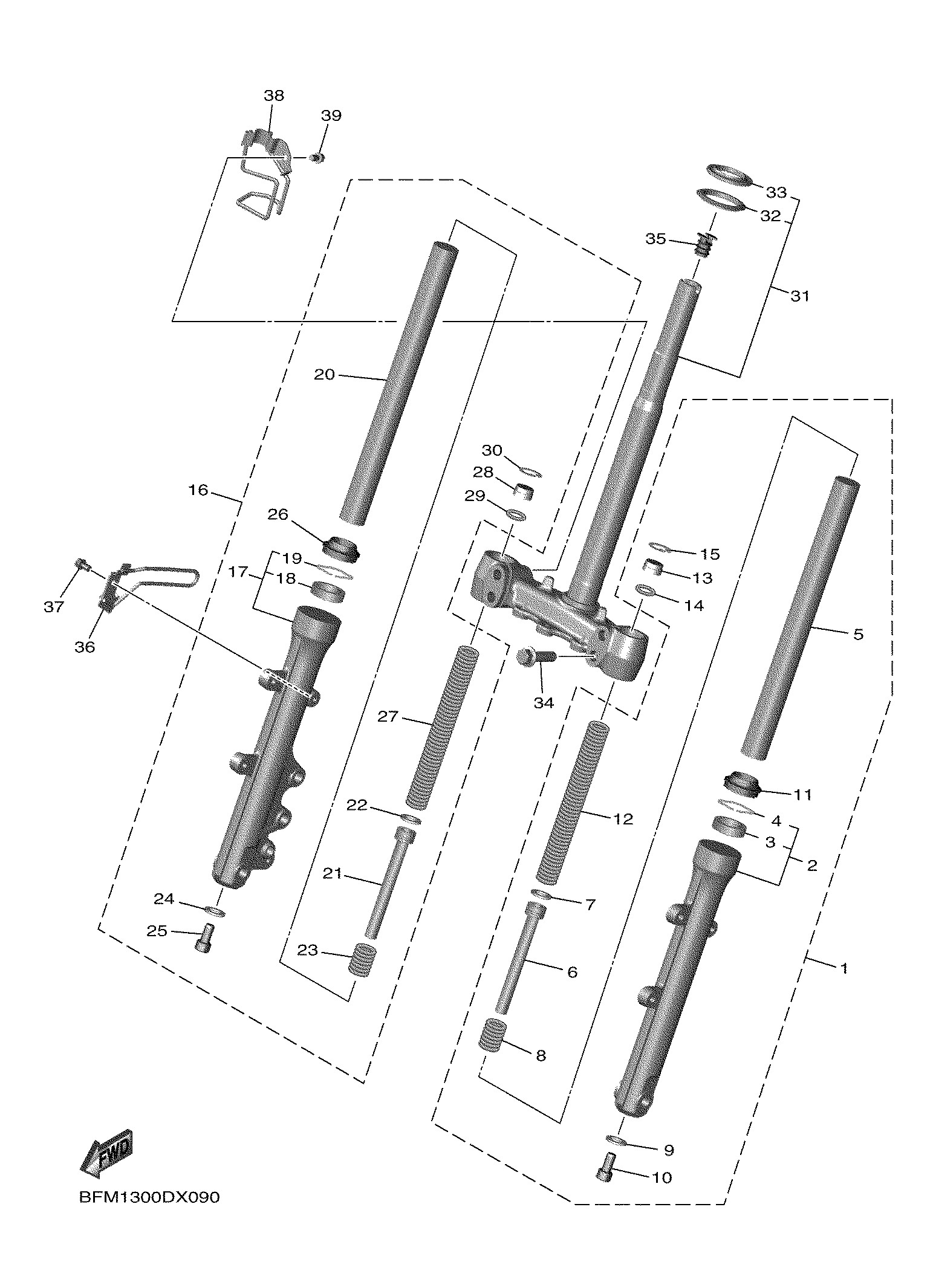

HORQUILLA DELANTERA

Volver al despiece completo

#	Ref.	unds.	Precio/unidad
1	BFMF31020000 HORQUILLA DELANTERA COMPL.(MI)	1	115,14 €	+
2	BFMF31260000 TUBO EXTERIOR 1	1	22,97 €	+
3	4XCF31450000 ..OIL SEAL	1	6,15 €	+
4	5P0F31560000 ..RING, SNAP	1	3,48 €	+
5	BW5F31100000 INNER TUBO COMP.1	1	16,65 €	+
6	B8AF31700000 CILINDRO COMPL DE HORQ DELANT	1	6,49 €	+
7	B7JF31570000 ..RING, PISTON	1	5,75 €	+
8	31DF31520000 .SPRING, SUB	1	3,33 €	+
9	509F3158L000 .GASKET	1	1,83 €	+
10	278F31815000 ..BOLT, HEXAGON SOCKET HEAD	1	0,55 €	+
11	4XCF31440000 .SEAL, DUST	1	11,68 €	+
12	B8AF31410000 MUELLE, FRONTAL HORQUILLA	1	2,64 €	+
13	1FCF31111000 .BOLT, CAP	1	3,48 €	+
14	2JGF31470000 ..O-RING	1	0,55 €	+
15	31BF31530000 .RING, SNAP	1	0,10 €	+
16	BFMF31030000 HORQUILLA DELANTERA COMPL.(MD)	1	115,14 €	+
17	BFMF31360000 TUBO, OUTER (DERECHO)	1	22,97 €	+
18	4XCF31450000 ..OIL SEAL	1	6,15 €	+
19	5P0F31560000 ..RING, SNAP	1	3,48 €	+
20	BW5F31100000 INNER TUBO COMP.1	1	16,65 €	+
21	B8AF31700000 CILINDRO COMPL DE HORQ DELANT	1	6,49 €	+
22	B7JF31570000 ..RING, PISTON	1	5,75 €	+
23	31DF31520000 .SPRING, SUB	1	3,33 €	+
24	509F3158L000 .GASKET	1	1,83 €	+
25	278F31815000 ..BOLT, HEXAGON SOCKET HEAD	1	0,55 €	+
26	4XCF31440000 .SEAL, DUST	1	11,68 €	+
27	B8AF31410000 MUELLE, FRONTAL HORQUILLA	1	2,64 €	+
28	1FCF31111000 .BOLT, CAP	1	3,48 €	+
29	2JGF31470000 ..O-RING	1	0,55 €	+
30	31BF31530000 .RING, SNAP	1	0,10 €	+
31	BFMF33400000 BAJO SOPORTE COMP.	1	134,72 €	+
32	B63F34620000 .SEAL, DUST	1	7,72 €	+
33	1S9F34110000 PISTA DE BOLAS 1	1	2,37 €	+
34	4D0F33460000 .BOLT 1	1	3,97 €	+
35	1DRF312G0200 PLUG, HOLE	1	0,59 €	+
36	BFMF58750000 SOPORTE DE MANGUERA FRENO 1	1	3,06 €	+
37	95E320601000 BOLT, FLANGE DEEP RECESS	1	2,30 €	+
38	BFMF58760000 SOPORTE DE MANGUERA FRENO 2	1	2,96 €	+
39	95E320601000 BOLT, FLANGE DEEP RECESS	1	2,30 €	+
