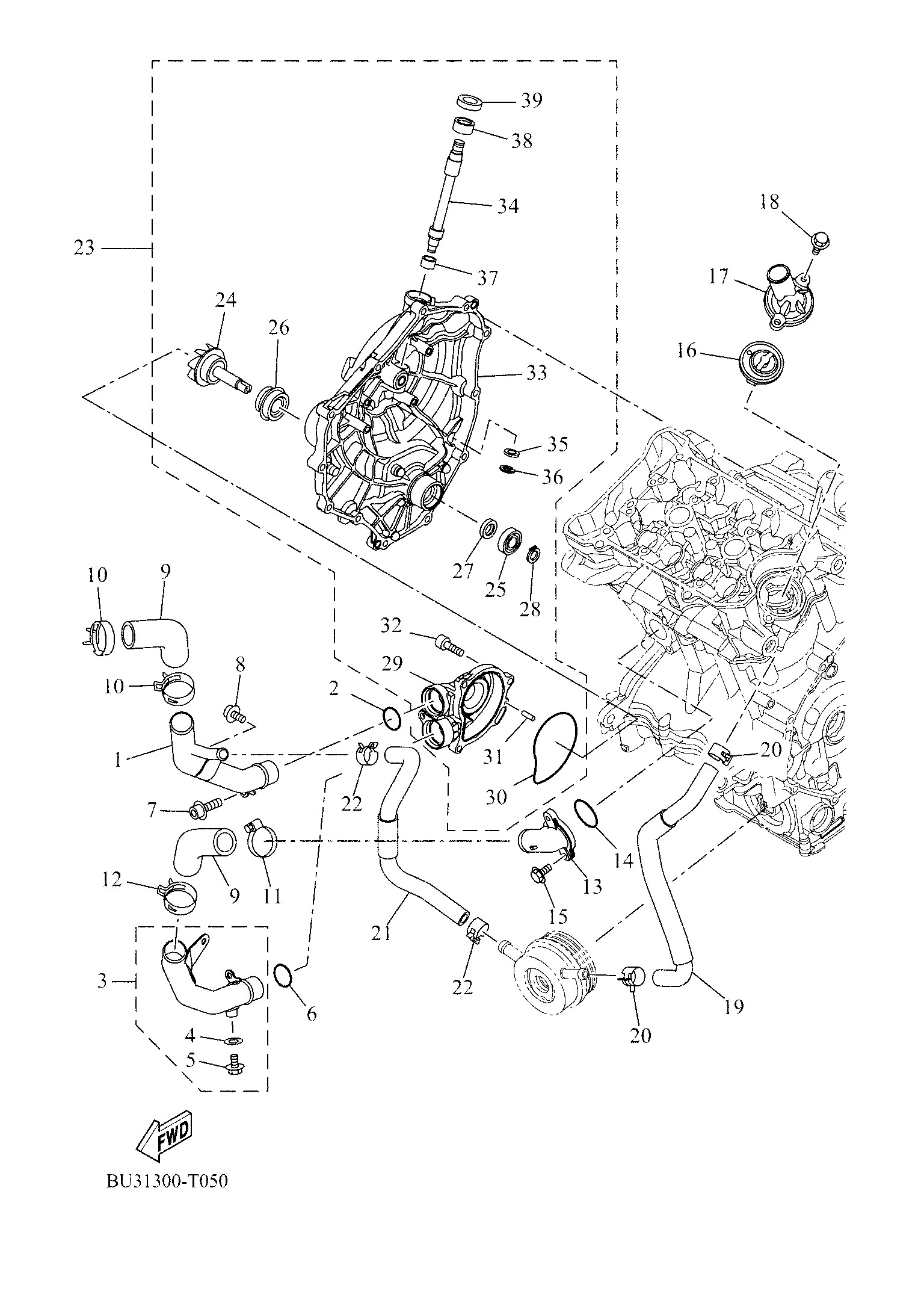

Inicio > Modelos Yamaha > SPORT HERITAGE > XSR700 35KW > 2021 > Water pump
Volver al despiece completo

# Ref. unds. Precio/unidad
1 BU3E24810000
PIPE 1 		1 28,91 € +
2 932102380200
O-RING 		1 0,74 € +
3 BU3E24820000
PIPE 2 		1 30,01 € +
4 904300601400
GASKET 		1 1,89 € +
5 950220601000
.BOLT, FLANGE 		1 0,37 € +
6 932102380200
O-RING 		1 0,74 € +
7 913140601400
BOLT, HEXAGON SOCKET HEAD 		1 0,42 € +
8 901100615200
BOLT, HEXAGON SOCKET HEAD 		1 0,70 € +
9 BU3E25760000
HOSE 1 		1 3,27 € +
10 90467290A000
CLIP 		1 5,51 € +
11 904503500100
HOSE CLAMP ASSY 		1 5,93 € +
12 90467290A000
CLIP 		1 5,51 € +
13 BU3E24690000
JOINT 1 		1 16,88 € +
14 932103300600
O-RING 		1 4,18 € +
15 958120602000
BOLT, FLANGE 		1 1,02 € +
16 1WS124100100
THERMOSTAT ASSY 		1 40,95 € +
17 BU3E24130000
COVER, THERMOSTAT 		1 10,39 € +
18 958170602000
BOLT, FLANGE 		1 1,02 € +
19 BU3E25880000
HOSE 5 		1 6,44 € +
20 90467170A600
CLIP 		1 3,21 € +
21 BU3E25890000
HOSE 6 		1 4,79 € +
22 90467170A600
CLIP 		1 3,21 € +
23 BU3E24200000
WATER PUMP ASSY 		1 211,96 € +
24 1WS124500000
.IMPELLER SHAFT ASSY 		1 22,55 € +
25 933060010600
.BEARING 		1 13,61 € +
26 5VK124380000
.SEAL, MECHANICAL 		1 30,39 € +
27 2CR133380000
.SEAL 		1 9,37 € +
28 990091240000
CIRCLIP 		1 1,43 € +
29 1WS124220000
.COVER, HOUSING 		1 41,23 € +
30 1WS124390000
.O-RING 		1 14,98 € +
31 936031200700
.PIN, DOWEL 		5 1,80 € +
32 901100627400
.BOLT, HEXAGON SOCKET HEAD 		1 1,63 € +
33 BU3E54210000
.COVER, CRANKCASE 2 		1 103,13 € +
34 2D1163820000
.AXLE, PUSH LEVER 		1 39,66 € +
35 929070860000
.WASHER, PLATE 		1 0,51 € +
36 990010760000
.CIRCLIP 		5 0,51 € +
37 933171109600
.BEARING 		1 7,81 € +
38 933152157000
.BEARING 		1 4,97 € +
39 931021580100
.OIL SEAL 		1 3,92 € +
