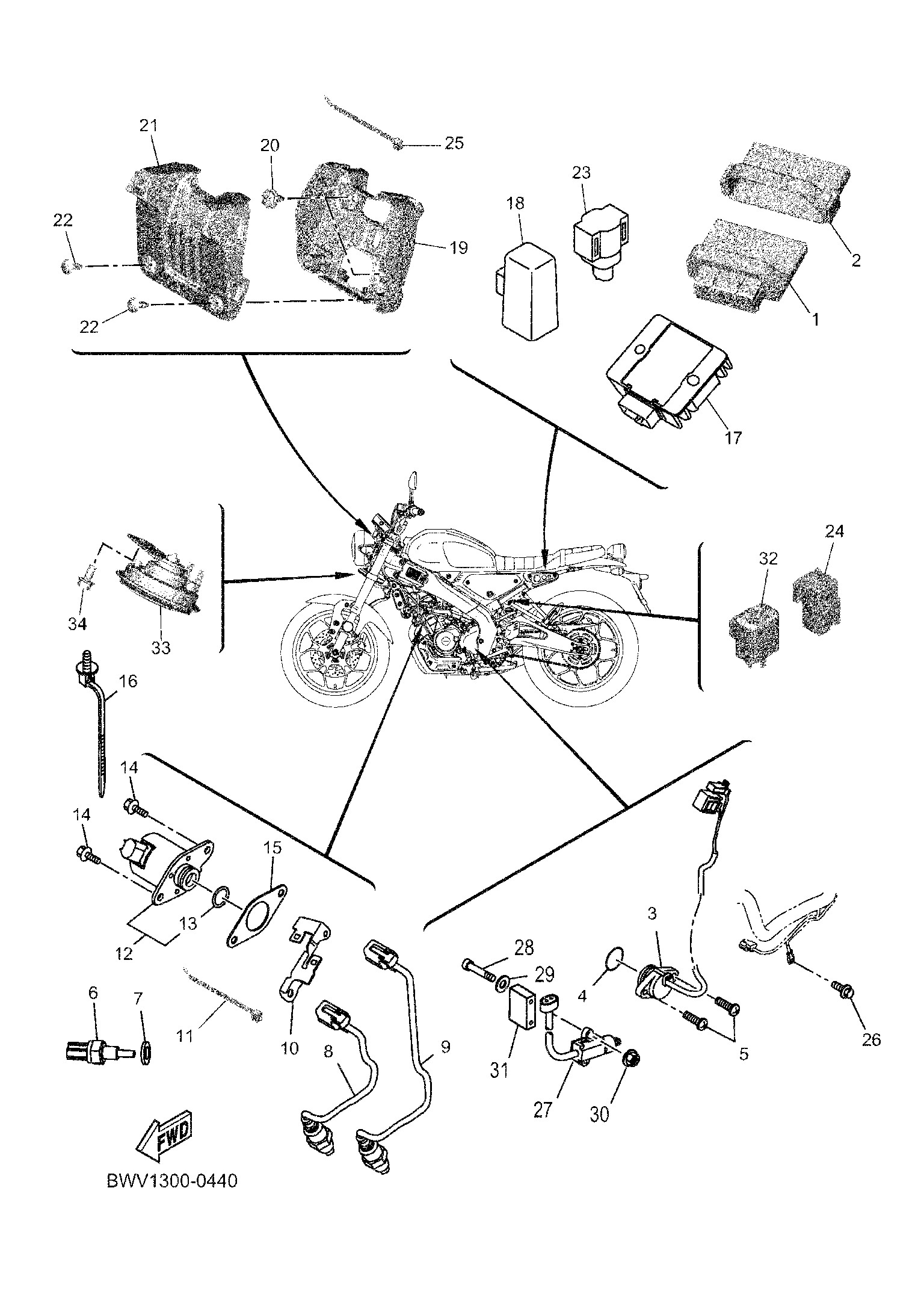

Inicio > Modelos Yamaha > SPORT HERITAGE > XSR125 > 2025 > Electrical 2
Volver al despiece completo

# Ref. unds. Precio/unidad
1 BWVH591A0000
ENGINE CONTROL UNIT ASSY 		1 Obsoleta
2 B8DH55460000
BAND 		1 Obsoleta
3 BK6H25400100
NEUTRAL SWITCH ASSY 		1 26,41 € +
4 932102180100
O-RING 		1 0,22 € +
5 985020501600
SCREW,PAN HEAD 		1 2,17 € +
6 52BH35910000
THERMO UNIT 		1 35,82 € +
7 904301080400
GASKET 		1 7,78 € +
8 BGMH592A0000
SENSOR, OXYGEN 		1 332,11 € +
9 BGMH592A1000
SENSOR, OXYGEN 		1 325,00 € +
10 BWTH18450000
PLATE 		1 Obsoleta
11 4KHH39360100
BAND, SWITCH CORD 		1 2,94 € +
12 BK6H61101000
SOLENOID 		1 43,14 € +
13 BK6H18470000
.O-RING 		1 0,60 € +
14 95D320601600
BOLT, FLANGE DEEP RECESS 		1 0,33 € +
15 BK6H18610000
GASKET 		1 3,80 € +
16 904643680100
CLAMP 		1 1,95 € +
17 BK6H19600000
RECTIFIER & REGULATOR ASSY 		1 51,51 € +
18 5TNH19400100
STARTER RELAY ASSY 		1 31,46 € +
19 B1VH25990000
CUBIERTA DE CONECTOR 		1 12,47 € +
20 901190685600
BOLT, WITH WASHER 		1 1,08 € +
21 B1VH43690000
CUBIERTA 1 		1 17,96 € +
22 9016705X0600
SCREW, TAPPING 		1 1,76 € +
23 1PAH25760100
SENSOR, LEAN ANGLE 		1 116,97 € +
24 BK6H19500000
RELAY ASSY 		1 14,48 € +
25 4KHH39360100
BAND, SWITCH CORD 		1 2,94 € +
26 950220601200
BOLT, FLANGE 		1 0,37 € +
27 BJ7H25660000
SWITCH, SIDE STAND 		1 57,84 € +
28 913170505000
BOLT, HEXAGON SOCKET HEAD 		1 2,61 € +
29 9020105X1100
WASHER, PLATE 		1 10,07 € +
30 956020510000
NUT, U 		1 3,38 € +
31 5D7H252H1000
PLATE, HOLDER 		1 20,86 € +
32 BWTH33500000
FLASHER RELAY ASSY 		1 Obsoleta
33 B1VH33710000
BOCINA 		1 32,33 € +
34 95D320601200
BOLT, FLANGE DEEP RECESS 		1 1,30 € +
