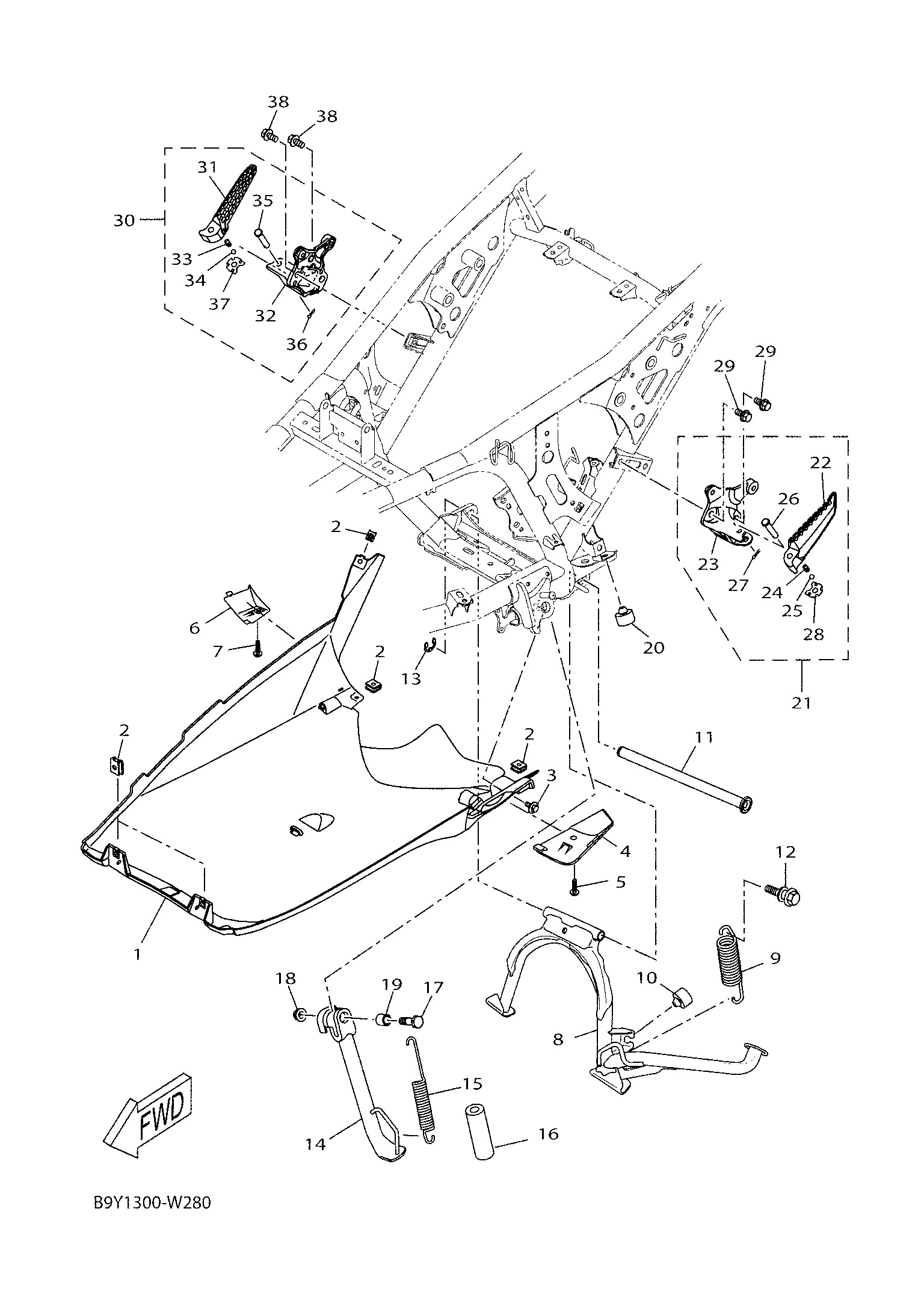

| # | Ref. | unds. | Precio/unidad | |
|---|---|---|---|---|
| 1 |
BMJF83850000 COVER, LOWER |
1 | 55,44 € | + |
| 2 |
901830504200 NUT, SPRING |
5 | 0,51 € | + |
| 3 |
90109068B500 BOLT |
1 | 1,21 € | + |
| 4 |
B9YF83490000 CAP |
1 | 16,23 € | + |
| 5 |
9016705X0700 SCREW, TAPPING |
1 | 1,35 € | + |
| 6 |
B9YF834J0000 CAP 2 |
1 | 16,23 € | + |
| 7 |
9016705X0700 SCREW, TAPPING |
1 | 1,35 € | + |
| 8 |
B9YF71110000 STAND, MAIN |
1 | 97,35 € | + |
| 9 |
9050640X0100 SPRING, TENSION |
1 | 12,84 € | + |
| 10 |
4YYF71140000 STOPPER, MAIN STAND |
1 | 3,99 € | + |
| 11 |
B6HF71120000 SHAFT, MAIN STAND |
1 | 11,97 € | + |
| 12 |
1LBF72540000 HOOK |
1 | 3,06 € | + |
| 13 |
990020960000 CIRCLIP |
1 | 2,01 € | + |
| 14 |
B74F73110000 STAND, SIDE |
1 | 69,67 € | + |
| 15 |
905063281400 SPRING, TENSION |
1 | 3,94 € | + |
| 16 |
5VX273510000 GUIDE, SIDE STAND |
1 | 3,66 € | + |
| 17 |
901011083000 BOLT |
1 | 1,67 € | + |
| 18 |
956021020000 NUT, SELF-LOCKING |
1 | 3,48 € | + |
| 19 |
903871084900 COLLAR |
1 | 1,15 € | + |
| 20 |
4YYF71140000 STOPPER, MAIN STAND |
1 | 3,99 € | + |
| 21 |
B74F74301000 REAR FOOTREST ASSY 1 |
1 | 62,67 € | + |
| 22 |
2DPF74311000 .FOOTREST, REAR 1 |
1 | 16,59 € | + |
| 23 |
B74F741L0000 .BRACKET 4 |
1 | 27,66 € | + |
| 24 |
905011274300 SPRING, COMPRESSION |
1 | 4,25 € | + |
| 25 |
935010483000 .BALL |
1 | 2,94 € | + |
| 26 |
917020803800 .PIN, CLEVIS |
1 | 4,84 € | + |
| 27 |
914022501500 PIN, COTTER |
5 | 1,21 € | + |
| 28 |
B74F74370000 .WASHER, SPECIAL |
1 | 1,02 € | + |
| 29 |
958120801600 BOLT, FLANGE |
10 | 1,30 € | + |
| 30 |
B74F74401000 REAR FOOTREST ASSY 2 |
1 | 62,67 € | + |
| 31 |
2DPF74411000 .FOOTREST, REAR 2 |
1 | 16,59 € | + |
| 32 |
B74F742L0000 .BRACKET 5 |
1 | 27,66 € | + |
| 33 |
905011274300 SPRING, COMPRESSION |
1 | 4,25 € | + |
| 34 |
935010483000 .BALL |
1 | 2,94 € | + |
| 35 |
917020803800 .PIN, CLEVIS |
1 | 4,84 € | + |
| 36 |
914022501500 PIN, COTTER |
5 | 1,21 € | + |
| 37 |
B74F74370000 .WASHER, SPECIAL |
1 | 1,02 € | + |
| 38 |
958120801600 BOLT, FLANGE |
10 | 1,30 € | + |
