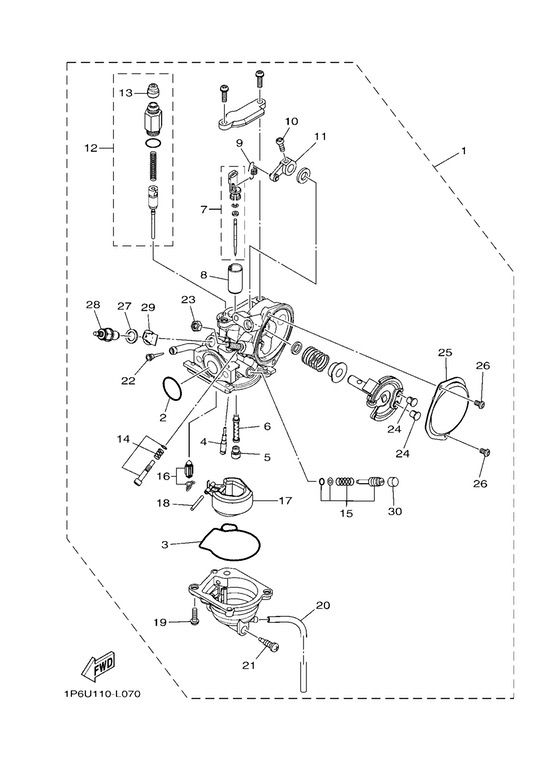

CARBURETOR

Volver al despiece completo

#	Ref.	unds.	Precio/unidad
1	1P6E41012000 CARBURETOR ASSY 1	1	270,39 €	+
2	68V8182L0000 .O-RING 1	1	15,76 €	+
3	1P6141470000 .O-RING	1	7,90 €	+
4	1P6141421200 .JET, PILOT (# 12.5)	1	23,06 €	+
5	18A1414A6300 .JET, MAIN (# 62.5)	1	8,19 €	+
6	1P6141411200 .NOZZLE, MAIN	1	37,70 €	+
7	1P61490J1000 .NEEDLE SET	1	41,20 €	+
8	1P61411F2500 .VALVE, THROTTLE 2	1	72,83 €	+
9	1P6149350000 .SPRING	1	6,27 €	+
10	1B2142160000 .SCREW	1	4,35 €	+
11	1P6149050000 .LEVER ASSY	1	27,56 €	+
12	1P61410A1000 .STARTER SET	1	57,49 €	+
13	22F141730000 ..COVER, PLUNGER CAP	1	6,07 €	+
14	1B2141030000 .THROTTLE SCREW SET	1	33,85 €	+
15	1P6141040000 .AIR SCREW SET	1	26,72 €	+
16	1P6141072000 .NEEDLE VALVE SET	1	34,86 €	+
17	1P6141850000 .FLOAT	1	24,84 €	+
18	53L141860000 .PIN, FLOAT	1	5,21 €	+
19	976070411400 .SCREW, WITH WASHER	1	1,19 €	+
20	1P6141960000 .PIPE, OVER FLOW 1	1	5,43 €	+
21	5LW141910000 .PLUG, DRAIN	1	3,33 €	+
22	5LW149940000 .NET, FILTER	1	1,24 €	+
23	522141610000 .NUT, CABLE ADJUSTING	1	4,57 €	+
24	1UY141550000 .GUIDE, CABLE	1	13,75 €	+
25	1P6142930000 .COVER 1	1	19,52 €	+
26	985170400600 SCREW, PAN HEAD(3XP)	1	2,05 €	+
27	5CY149510000 .WASHER	1	2,79 €	+
28	5FU837900000 .HEATER ASSY (15W)	1	42,12 €	+
29	5FU821030000 .TERMINAL 1	1	2,89 €	+
30	3F9141180000 .CAP	1	6,12 €	+
