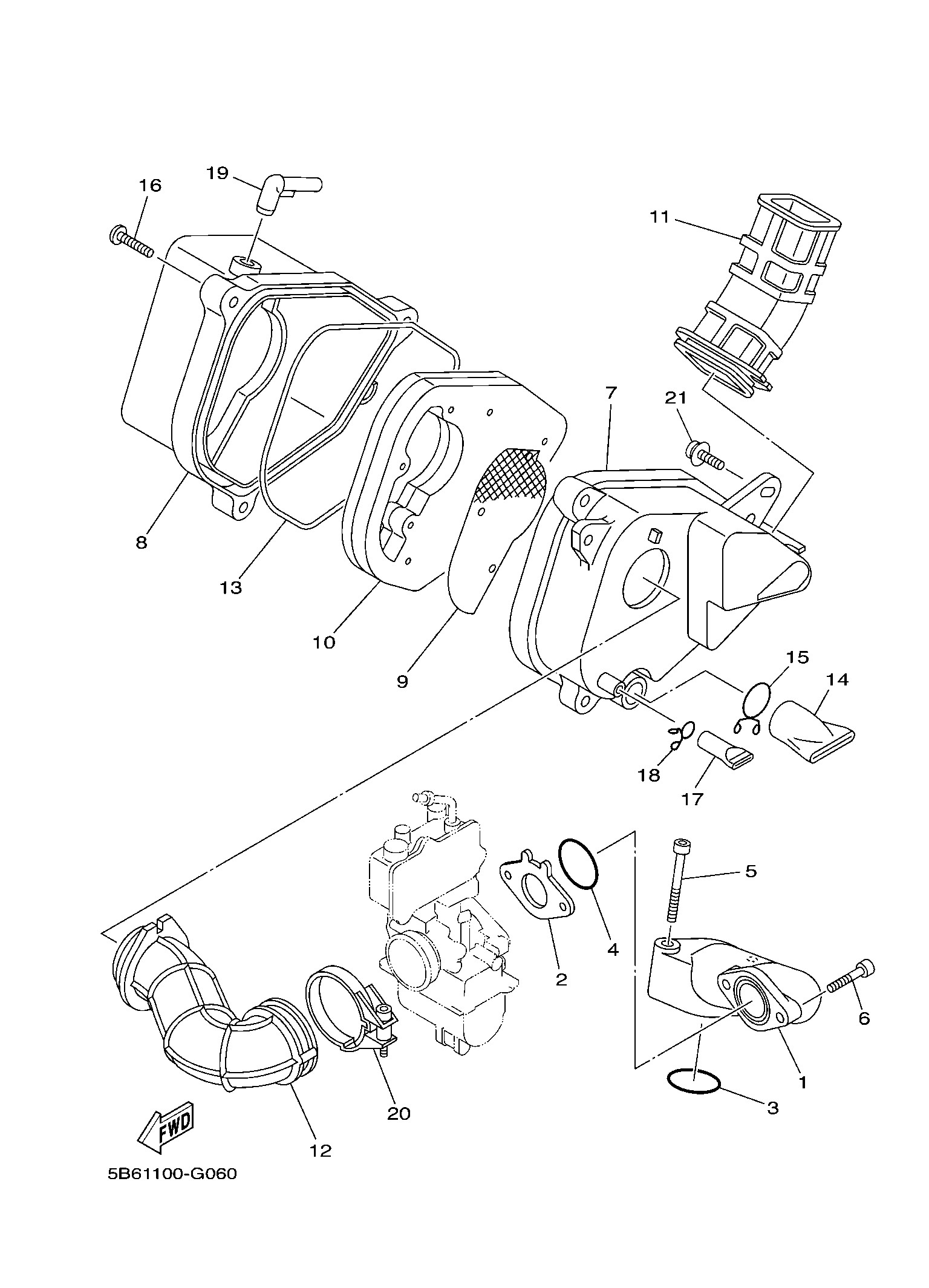

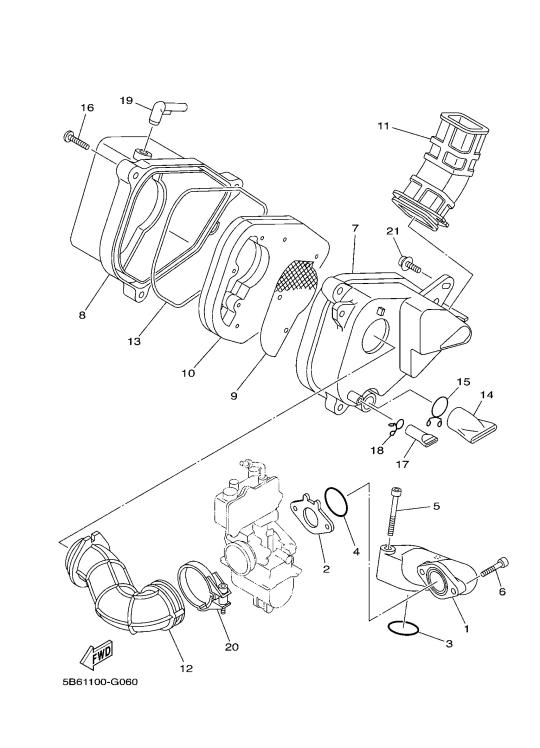

INTAKE

Volver al despiece completo

#	Ref.	unds.	Precio/unidad
1	5B6E35860000 JOINT, CARBURETOR 1	1	56,74 €	+
2	4GL135950100 JOINT	1	21,02 €	+
3	93210258G200 O-RING	1	9,92 €	+
4	932102555200 O-RING	1	7,22 €	+
5	913170604000 BOLT, HEXAGON SOCKET HEAD	1	0,42 €	+
6	913170602500 BOLT, HEXAGON SOCKET HEAD	1	1,24 €	+
7	5B6144110000 CASE, AIR CLEANER 1	1	91,38 €	+
8	5B6144120000 CAP, CLEANER CASE 1	1	27,68 €	+
9	5B6144720000 PLATE, ELEMENT	1	13,52 €	+
10	5B6144510000 ELEMENT, AIR CLEANER	1	9,69 €	+
11	5B6144370000 CONDUCTO	1	35,08 €	+
12	5B6144530000 UNION DEL FILTRO DEL AIRE 1	1	47,42 €	+
13	3LD144620000 SEAL	1	5,16 €	+
14	59V144570000 SEAL	1	4,77 €	+
15	904672208000 CLIP	1	2,84 €	+
16	989070602500 SCREW, BIND	1	1,19 €	+
17	5XT1443E0000 PIPE, DRAIN	1	3,65 €	+
18	904671110600 CLIP	1	1,88 €	+
19	5Y1144190000 PIPE	1	2,30 €	+
20	4TR134740100 BAND	1	13,52 €	+
21	901590605600 SCREW, WITH WASHER	1	1,33 €	+
