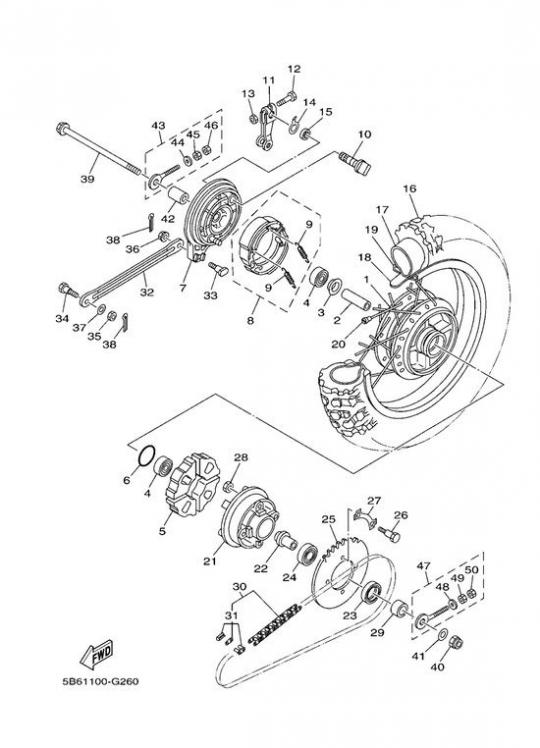

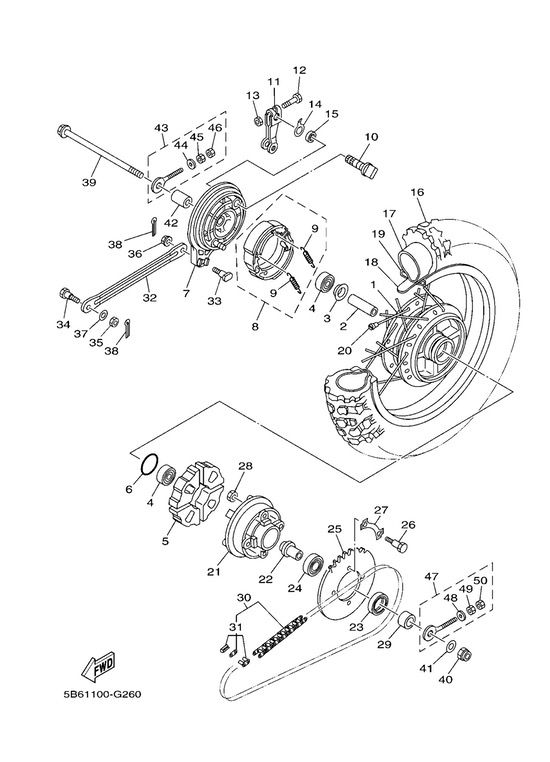

REAR WHEEL

Volver al despiece completo

#	Ref.	unds.	Precio/unidad
1	21W253110035 HUB, REAR	1	108,70 €	+
2	905601214500 SPACER	1	15,45 €	+
3	109253150000 SEPARADOR	1	2,14 €	+
4	933063011100 BEARING	1	30,65 €	+
5	304253640100 AMORTIGUADOR	1	10,24 €	+
6	932104104100 O-RING	1	0,75 €	+
7	5B6253210035 PLATE, BRAKE SHOE	1	96,17 €	+
8	4BEW253E0000 BRAKE SHOE KIT	1	19,50 €	+
9	905061526000 .SPRING, TENSION	1	6,66 €	+
10	4GL253510000 ARBOL DE LEVAS	1	28,70 €	+
11	538253550000 LEVER, CAMSHAFT	1	18,33 €	+
12	901010627800 BOLT	1	0,33 €	+
13	953170660000 TUERCA	1	0,49 €	+
14	5ADF533A0000 PLACA INDICADOR	5	Obsoleta
15	931091402100 OIL SEAL	1	5,52 €	+
16	94130121A700 TIRE (3.00-12 2PR)	1	65,73 €	+
17	942301220800 TUBO	1	32,30 €	+
18	943301210000 BANDA DE ARO	1	7,13 €	+
19	944161200200 RIM (1.60-12)	1	101,75 €	+
20	21W253040000 SPOKE SET, REAR	1	68,75 €	+
21	296253660135 CLUTCH, HUB	1	87,49 €	+
22	21W253870000 AXLE, SPROCKET	1	22,63 €	+
23	931063000400 OIL SEAL	1	6,86 €	+
24	933060044400 COJINETE	1	24,29 €	+
25	5A7254350100 SPROCKET, DRIVEN (35T)	1	28,17 €	+
26	901010867200 BOLT	1	1,33 €	+
27	4AW254120000 WASHER	1	6,07 €	+
28	901790863900 TUERCA	1	1,13 €	+
29	90387207G300 COLLAR	1	13,07 €	+
30	9Y5805208900 CHAIN, DRIVE	1	36,51 €	+
31	946805200100 .JOINT, CHAIN(DID 420M)	1	5,19 €	+
32	4BC253710000 BAR, TENSION	1	16,53 €	+
33	901090881600 PERNO	1	2,14 €	+
34	901090836800 BOLT	1	3,65 €	+
35	953170870000 TUERCA	1	1,19 €	+
36	901790849100 TUERCA	5	2,05 €	+
37	929900860000 ARANDELA PLANA	5	0,49 €	+
38	914902001500 CHAVETA	1	1,78 €	+
39	5HN253810000 AXLE, WHEEL	1	18,72 €	+
40	901851200700 NUT, SELF-LOCKING	1	6,07 €	+
41	902011204500 WASHER, PLATE	1	1,33 €	+
42	903871241200 COLLAR	1	9,78 €	+
43	3AC2538G1000 PULLER, CHAIN	1	8,90 €	+
44	90201061A500 .WASHER, PLATE	1	1,33 €	+
45	901700680900 TUERCA	1	1,41 €	+
46	953170660000 TUERCA	1	0,49 €	+
47	4GL2538G1000 PULLER, CHAIN	1	13,52 €	+
48	90201061A500 .WASHER, PLATE	1	1,33 €	+
49	901700680900 TUERCA	1	1,41 €	+
50	953170660000 TUERCA	1	0,49 €	+
