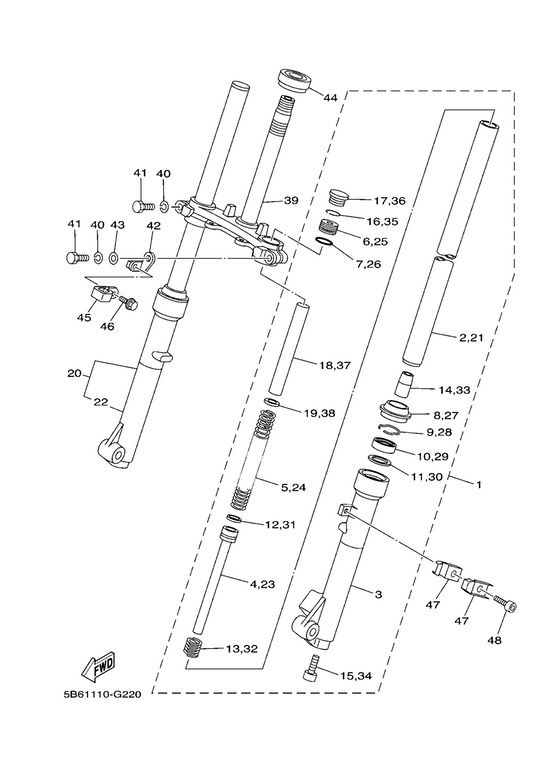

FRONT FORK

Volver al despiece completo

#	Ref.	unds.	Precio/unidad
1	5B6231020000 FRONT FORK ASSY (L.H)	1	278,73 €	+
2	5B6231100000 .INNER TUBE COMP.1	1	133,77 €	+
3	5B6231260000 .TUBE, OUTER	1	220,99 €	+
4	5B6231700000 .CYLINDER COMP., FRONT FORK	1	86,45 €	+
5	5B6231410000 .SPRING, FRONT FORK	1	39,59 €	+
6	5B62319U0000 .CAP	1	6,27 €	+
7	5B6231470000 .O-RING	1	2,30 €	+
8	5B6231440000 .SEAL, DUST	1	11,68 €	+
9	2A6231560000 .RING, SNAP	1	4,52 €	+
10	5B6231450000 .OIL SEAL	1	23,42 €	+
11	5B6231460000 .WASHER, OIL SEAL	1	9,13 €	+
12	5B6231570000 .RING, PISTON	1	3,75 €	+
13	5B6231510000 .SPRING, REBOUND	1	1,80 €	+
14	5B6231730000 .SPINDLE, TAPER	1	5,75 €	+
15	3M7231810000 TORNILLO CABEZAHEXAGONAL	1	3,01 €	+
16	1L9231830000 .RING, STOPPER	1	1,97 €	+
17	3V2231540000 .CAP	1	8,04 €	+
18	5B6231180000 .SPACER	1	9,01 €	+
19	5B6231490000 .WASHER, SPRING UPPER	1	4,77 €	+
20	5B6231030000 FRONT FORK ASSY (R.H)	1	278,73 €	+
21	5B6231100000 .INNER TUBE COMP.1	1	133,77 €	+
22	5B6231360000 .TUBE, OUTER	1	220,99 €	+
23	5B6231700000 .CYLINDER COMP., FRONT FORK	1	86,45 €	+
24	5B6231410000 .SPRING, FRONT FORK	1	39,59 €	+
25	5B62319U0000 .CAP	1	6,27 €	+
26	5B6231470000 .O-RING	1	2,30 €	+
27	5B6231440000 .SEAL, DUST	1	11,68 €	+
28	2A6231560000 .RING, SNAP	1	4,52 €	+
29	5B6231450000 .OIL SEAL	1	23,42 €	+
30	5B6231460000 .WASHER, OIL SEAL	1	9,13 €	+
31	5B6231570000 .RING, PISTON	1	3,75 €	+
32	5B6231510000 .SPRING, REBOUND	1	1,80 €	+
33	5B6231730000 .SPINDLE, TAPER	1	5,75 €	+
34	3M7231810000 TORNILLO CABEZAHEXAGONAL	1	3,01 €	+
35	1L9231830000 .RING, STOPPER	1	1,97 €	+
36	3V2231540000 .CAP	1	8,04 €	+
37	5B6231180000 .SPACER	1	9,01 €	+
38	5B6231490000 .WASHER, SPRING UPPER	1	4,77 €	+
39	5B6233400000 UNDER BRACKET COMP.	1	217,29 €	+
40	929901010000 ARANDELA PLANA	5	1,28 €	+
41	451233460100 BOLT 1	1	5,36 €	+
42	5B62334G0000 BRACKET 1	1	9,65 €	+
43	929901060000 ARANDELA PLANA	5	1,55 €	+
44	933320007900 BEARING	1	68,18 €	+
45	5HN238570000 HOLDER	1	8,46 €	+
46	901050501400 BOLT, FLANGE	1	0,42 €	+
47	904621405500 CLAMP	1	4,72 €	+
48	913170601200 BOLT, HEXAGON SOCKET HEAD	1	0,75 €	+
