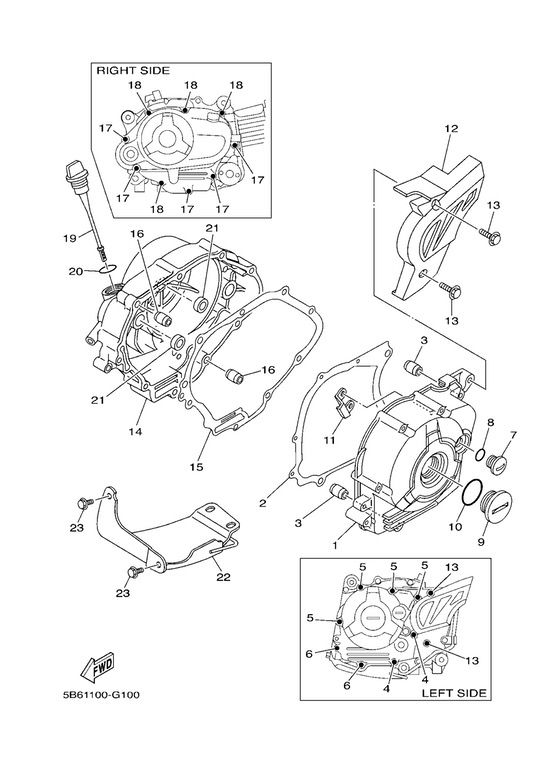

# | Ref. | unds. | Precio/unidad | |
---|---|---|---|---|
1 |
5B6E54110000 COVER, CRANKCASE 1 |
1 | 232,34 € | + |
2 |
3S0E54510000 GASKET, CRANKCASE COVER 1 |
1 | 5,38 € | + |
3 |
918101480900 PIN, DOWEL |
1 | 1,28 € | + |
4 |
950220604000 BOLT, FLANGE |
1 | 1,13 € | + |
5 |
950220605000 BOLT, FLANGE |
1 | 0,75 € | + |
6 |
9502L0608000 BOLT, FLANGE |
1 | 1,13 € | + |
7 |
903401481200 PLUG, STRAIGHT SCREW |
1 | 2,74 € | + |
8 |
93210148F800 O-RING |
1 | 5,80 € | + |
9 |
903403280600 PLUG, STRAIGHT SCREW |
1 | 2,89 € | + |
10 |
93210328G300 O-RING |
1 | 7,95 € | + |
11 |
5TPE51130000 PLATE |
1 | 2,30 € | + |
12 |
5B6154180000 COVER, CHAIN CASE |
1 | 35,08 € | + |
13 |
950220602500 BOLT, FLANGE |
1 | 0,55 € | + |
14 |
5B6E54210000 COVER, CRANKCASE 2 |
1 | 234,20 € | + |
15 |
4STE54611100 GASKET, CRANKCASE COVER 2 |
1 | 7,11 € | + |
16 |
918101480900 PIN, DOWEL |
1 | 1,28 € | + |
17 |
950220604000 BOLT, FLANGE |
1 | 1,13 € | + |
18 |
950220605000 BOLT, FLANGE |
1 | 0,75 € | + |
19 |
5B6E53620000 PLUG, OIL LEVEL |
1 | 16,03 € | + |
20 |
93210198F900 O-RING |
1 | 4,12 € | + |
21 |
931011084300 OIL SEAL |
1 | 4,44 € | + |
22 |
5B6E54360000 COVER, STARTING MOTOR |
1 | 47,25 € | + |
23 |
9010508X1500 TORNILLO CON ARANDELA |
10 | 1,28 € | + |
