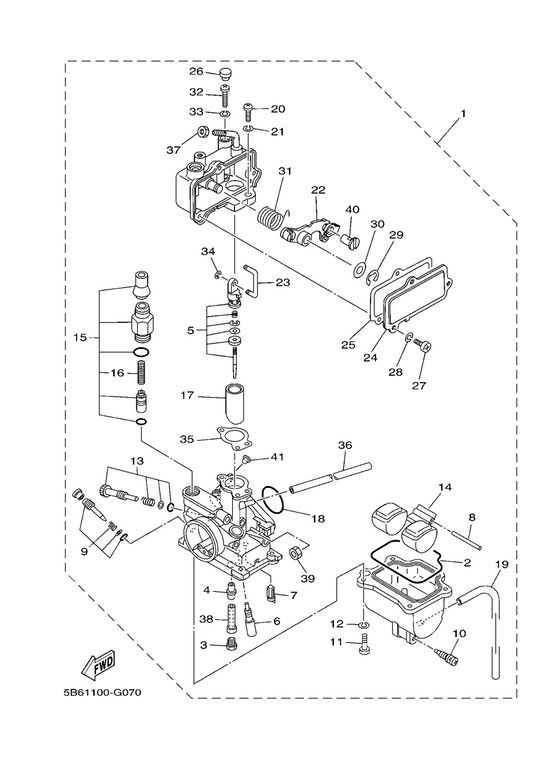

CARBURETOR

Volver al despiece completo

#	Ref.	unds.	Precio/unidad
1	5B6141011000 CARBURETOR ASSY 1	1	498,38 €	+
2	4GL142390000 .SEAL	1	12,12 €	+
3	18A141431900 .JET, MAIN (# 95)	1	12,14 €	+
4	5KA141411300 .NOZZLE, MAIN	1	41,21 €	+
5	5B61490J0000 .NEEDLE SET	1	39,52 €	+
6	2MM141421200 .JET, PILOT(#12.5)	1	17,82 €	+
7	5DW141500000 .NEEDLE ASSY	1	38,61 €	+
8	353141860000 .PIN, FLOAT	1	1,24 €	+
9	5HN141040000 .AIR SCREW SET	1	10,29 €	+
10	12R141910000 .PLUG, DRAIN	1	6,54 €	+
11	985070401400 .SCREW, PAN HEAD	1	0,49 €	+
12	929070410000 .WASHER, SPRING	1	0,22 €	+
13	5DV141030000 .THROTTLE SCREW SET	1	22,21 €	+
14	5HN149850000 .FLOAT	1	60,54 €	+
15	5HN1410A0000 .STARTER SET	1	49,07 €	+
16	5HN141350000 ..COIL, SPRING	1	1,13 €	+
17	5B6141122500 .VALVE, THROTTLE 1	1	67,03 €	+
18	241141470000 .O-RING	1	5,52 €	+
19	4GL143480000 .PIPE 1	1	8,32 €	+
20	985170401200 .SCREW, PAN HEAD	1	0,49 €	+
21	929070410000 .WASHER, SPRING	1	0,22 €	+
22	4GL142921000 .BRACKET 2	1	67,75 €	+
23	4GL145771000 .ROD	1	13,29 €	+
24	4GL142930000 .COVER 1	1	12,51 €	+
25	4GL145361000 .GASKET	1	7,95 €	+
26	3F7149910000 .PLUG, SCREW	1	5,43 €	+
27	985070401000 SCREW, PAN HEAD	1	0,49 €	+
28	929070410000 .WASHER, SPRING	1	0,22 €	+
29	812141370000 .CLIP	1	3,53 €	+
30	1A8149530000 .WASHER	1	2,89 €	+
31	4GL142750100 .SPRING	1	10,51 €	+
32	985170401600 SCREW, PAN HEAD	1	0,42 €	+
33	929070410000 .WASHER, SPRING	1	0,22 €	+
34	256149190000 .CLIP	1	4,12 €	+
35	1V3141260000 .GASKET	1	6,49 €	+
36	5YT141930000 .PIPE	1	17,49 €	+
37	522141610000 .NUT, CABLE ADJUSTING	1	4,57 €	+
38	5HN141480000 .PIPE	1	35,55 €	+
39	5DV145941000 .NUT	1	4,12 €	+
40	4GL141551000 .GUIDE, CABLE	1	13,94 €	+
41	5LW149940000 .NET, FILTER	1	1,24 €	+
