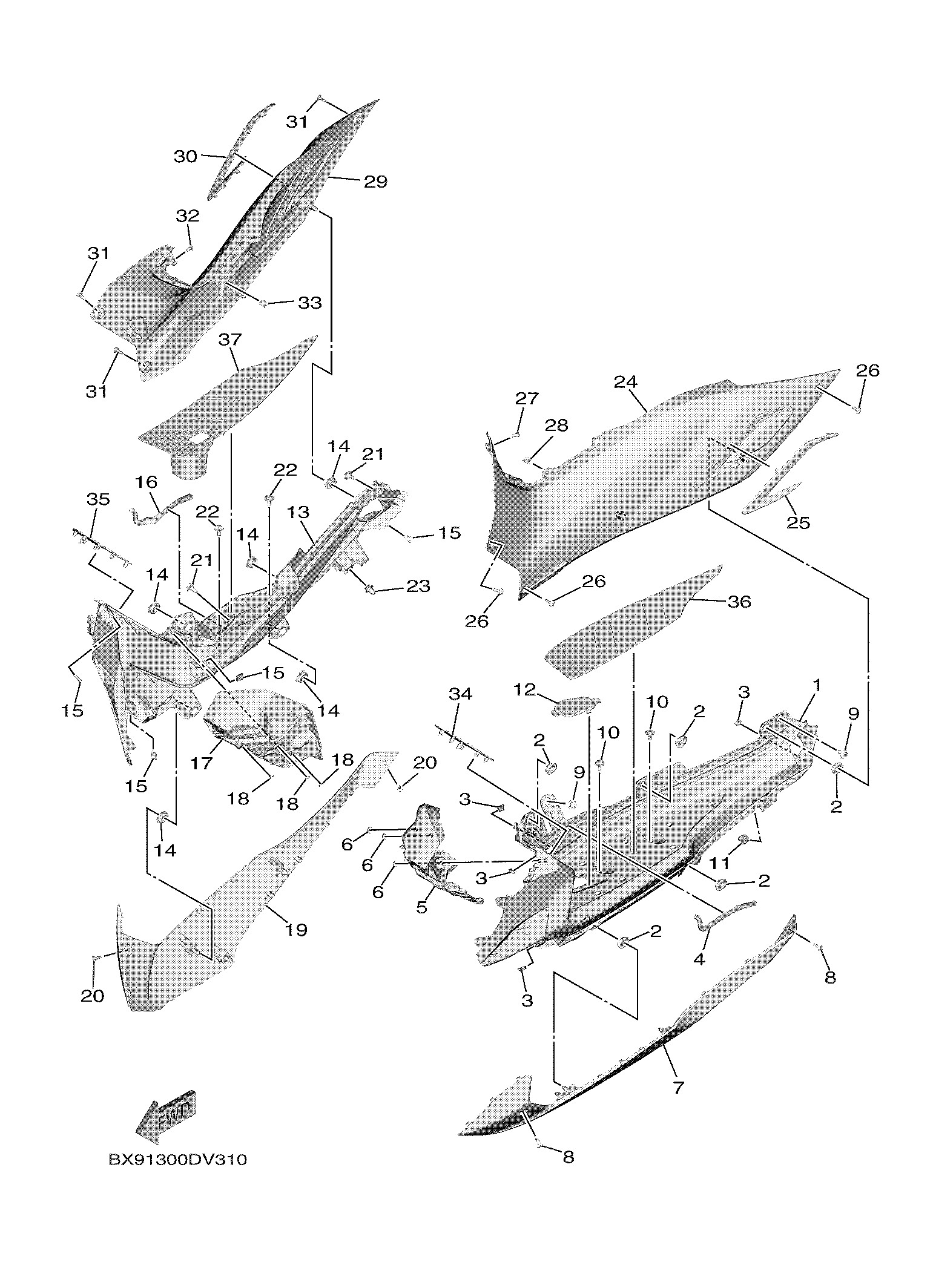

Inicio > Modelos Yamaha > MAXI SCOOTERS > TRICITY 300 > 2024 > Stand & footrest 2
Volver al despiece completo

# Ref. unds. Precio/unidad
1 BX9F74810000
BOARD, FOOTREST 		1 54,04 € +
2 904800186800
GROMMET 		1 2,69 € +
3 901830580700
NUT, SPRING 		1 0,49 € +
4 905201082500
DAMPER, PLATE 		1 0,37 € +
5 BX9F74130000
COVER, FOOTREST 		1 23,62 € +
6 901830681500
NUT, SPRING 		1 0,42 € +
7 BX9F171L00P2
MOLE, SIDE COVER 1 		1 81,72 € +
7 BX9F171L00P4
MOLE, SIDE COVER 1 		1 Obsoleta
8 901670580100
SCREW, TAPPING 		1 1,28 € +
9 90109068B500
BOLT 		1 1,19 € +
10 901190605100
BOLT, WITH WASHER 		1 1,01 € +
11 902690900500
RIVET 		1 0,42 € +
12 BF6F172W0200
COVER 		1 Obsoleta
13 BX9F74880000
BOARD, FOOTREST 2 		1 54,04 € +
14 904800186800
GROMMET 		1 2,69 € +
15 901830580700
NUT, SPRING 		1 0,49 € +
16 905201082500
DAMPER, PLATE 		1 0,37 € +
17 BX9F74230000
COVER, FOOTREST 		1 23,62 € +
18 901830681500
NUT, SPRING 		1 0,42 € +
19 BX9F171M00P4
MOLE, SIDE COVER 2 		1 Obsoleta
19 BX9F171M00P2
MOLE, SIDE COVER 2 		1 81,72 € +
20 901670580100
SCREW, TAPPING 		1 1,28 € +
21 90109068B500
BOLT 		1 1,19 € +
22 901190605100
BOLT, WITH WASHER 		1 1,01 € +
23 902690900500
RIVET 		1 0,42 € +
24 BX9F17110000
COVER, SIDE 1 		1 118,67 € +
25 BX9F84971000
PLATE 3 		1 28,97 € +
26 901670580100
SCREW, TAPPING 		1 1,28 € +
27 977025001200
SCREW, TAPPING 		1 0,49 € +
28 901830580700
NUT, SPRING 		1 0,49 € +
29 BX9F17210000
COVER, SIDE 2 		1 118,67 € +
30 BX9F846H1000
PLATE,4 		1 28,97 € +
31 901670580100
SCREW, TAPPING 		1 1,28 € +
32 977025001200
SCREW, TAPPING 		1 0,49 € +
33 901830580700
NUT, SPRING 		1 0,49 € +
34 BX9F74830000
MAT 1 		1 16,41 € +
35 BX9F74840000
MAT 2 		1 16,41 € +
36 BX9F74930000
MAT 3 		1 22,30 € +
37 BX9F74940000
MAT 4 		1 30,15 € +
