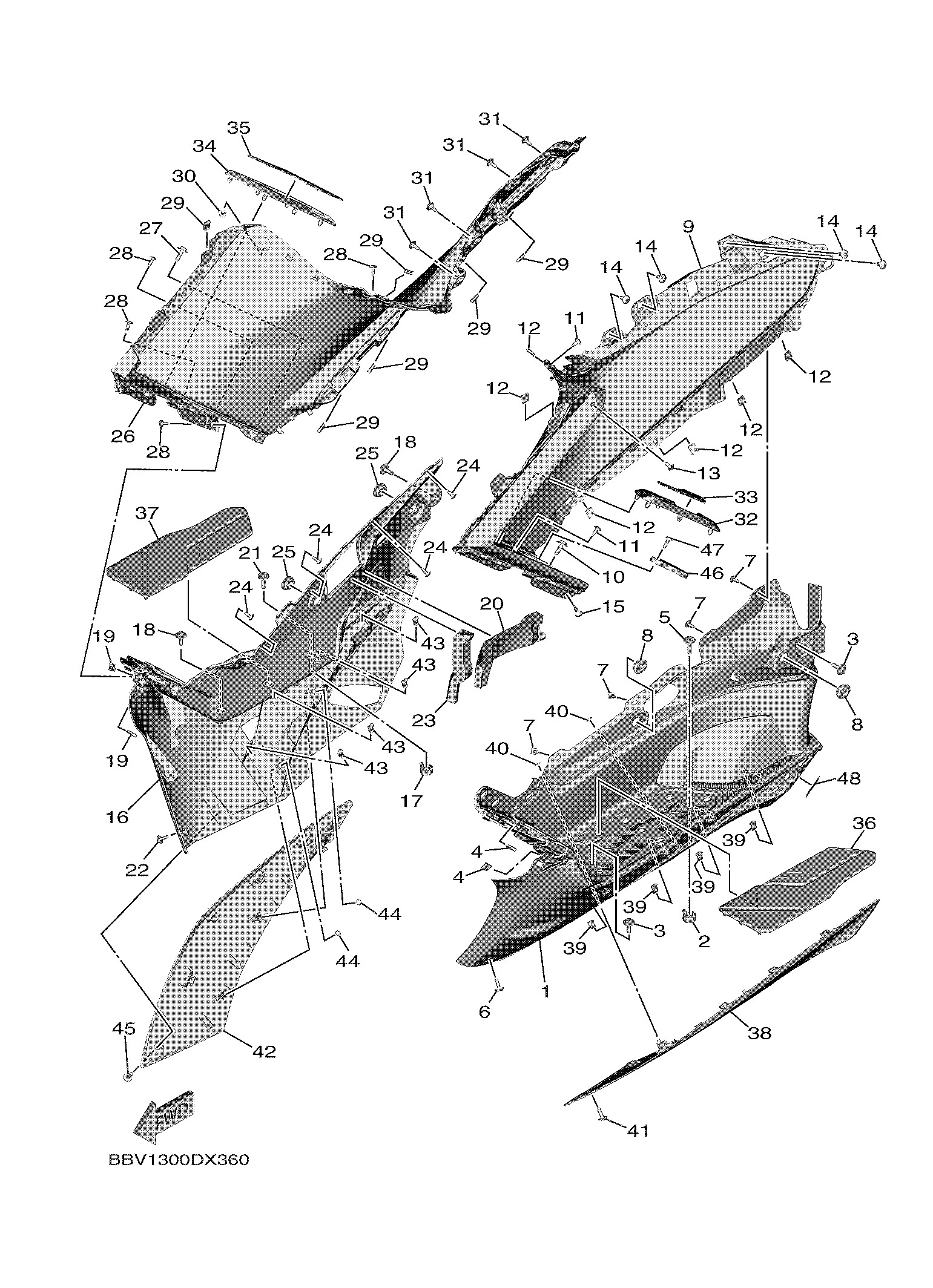

# | Ref. | unds. | Precio/unidad | |
---|---|---|---|---|
1 |
BBW274810000 BOARD, FOOTREST |
1 | 150,78 € | + |
2 |
BBW278230000 SPACER |
1 | 3,70 € | + |
3 |
901190631800 BOLT, WITH WASHER |
1 | 2,05 € | + |
4 |
901830504200 NUT, SPRING |
1 | 0,49 € | + |
5 |
901190631900 BOLT, WITH WASHER |
1 | 2,47 € | + |
6 |
901110502100 BOLT, HEXAGON SOCKET BUTTON |
1 | 1,33 € | + |
7 |
977025001200 SCREW, TAPPING |
1 | 0,49 € | + |
8 |
904800155900 GROMMET |
1 | 1,28 € | + |
9 |
BBW2837L0000 PANEL, CONSOLE 1 |
1 | 82,27 € | + |
10 |
901190631800 BOLT, WITH WASHER |
1 | 2,05 € | + |
11 |
977025001200 SCREW, TAPPING |
1 | 0,49 € | + |
12 |
901830504200 NUT, SPRING |
1 | 0,49 € | + |
13 |
901670507900 SCREW, TAPPING |
1 | 2,79 € | + |
14 |
901090502200 BOLT |
1 | 1,88 € | + |
15 |
977025001600 SCREW, TAPPING |
1 | 0,49 € | + |
16 |
BBW274880000 BOARD, FOOTREST 2 |
1 | 150,78 € | + |
17 |
BBW278230000 SPACER |
1 | 3,70 € | + |
18 |
901190631800 BOLT, WITH WASHER |
1 | 2,05 € | + |
19 |
901830504200 NUT, SPRING |
1 | 0,49 € | + |
20 |
905202001800 DAMPER, PLATE |
1 | 5,52 € | + |
21 |
901190631900 BOLT, WITH WASHER |
1 | 2,47 € | + |
22 |
901110502100 BOLT, HEXAGON SOCKET BUTTON |
1 | 1,33 € | + |
23 |
905202001900 DAMPER, PLATE |
1 | 2,47 € | + |
24 |
977025001200 SCREW, TAPPING |
1 | 0,49 € | + |
25 |
904800155900 GROMMET |
1 | 1,28 € | + |
26 |
BBW2837M0000 PANEL, CONSOLE 2 |
1 | 82,27 € | + |
27 |
901190631800 BOLT, WITH WASHER |
1 | 2,05 € | + |
28 |
977025001200 SCREW, TAPPING |
1 | 0,49 € | + |
29 |
901830504200 NUT, SPRING |
1 | 0,49 € | + |
30 |
901670507900 SCREW, TAPPING |
1 | 2,79 € | + |
31 |
901090502200 BOLT |
1 | 1,88 € | + |
32 |
BBW274830000 MAT 1 |
1 | 27,83 € | + |
33 |
BBW274130000 COVER, FOOTREST |
1 | 23,54 € | + |
34 |
BBW274840000 MAT 2 |
1 | 27,83 € | + |
35 |
BBW274230000 COVER, FOOTREST |
1 | 23,54 € | + |
36 |
BBW274930000 MAT 3 |
1 | 25,90 € | + |
37 |
BBW274940000 MAT 4 |
1 | 25,90 € | + |
38 |
BBW2171L00P3 MOLE, SIDE COVER 1 |
1 | 86,44 € | + |
38 |
BBW2171L00P4 MOLE, SIDE COVER 1 |
1 | 86,44 € | + |
39 |
904640400500 CLAMP |
1 | 2,96 € | + |
40 |
9018305M0200 NUT, SPRING |
1 | 0,49 € | + |
41 |
901110502100 BOLT, HEXAGON SOCKET BUTTON |
1 | 1,33 € | + |
42 |
BBW2171M00P4 MOLE, SIDE COVER 2 |
1 | 86,44 € | + |
42 |
BBW2171M00P3 MOLE, SIDE COVER 2 |
1 | 86,44 € | + |
43 |
904640400500 CLAMP |
1 | 2,96 € | + |
44 |
9018305M0200 NUT, SPRING |
1 | 0,49 € | + |
45 |
901110502100 BOLT, HEXAGON SOCKET BUTTON |
1 | 1,33 € | + |
46 |
59C274630100 COVER 2 |
1 | 5,10 € | + |
47 |
977025001600 SCREW, TAPPING |
1 | 0,49 € | + |
48 |
B5Y1548B0000 OIL, LABEL |
1 | 2,56 € | + |
