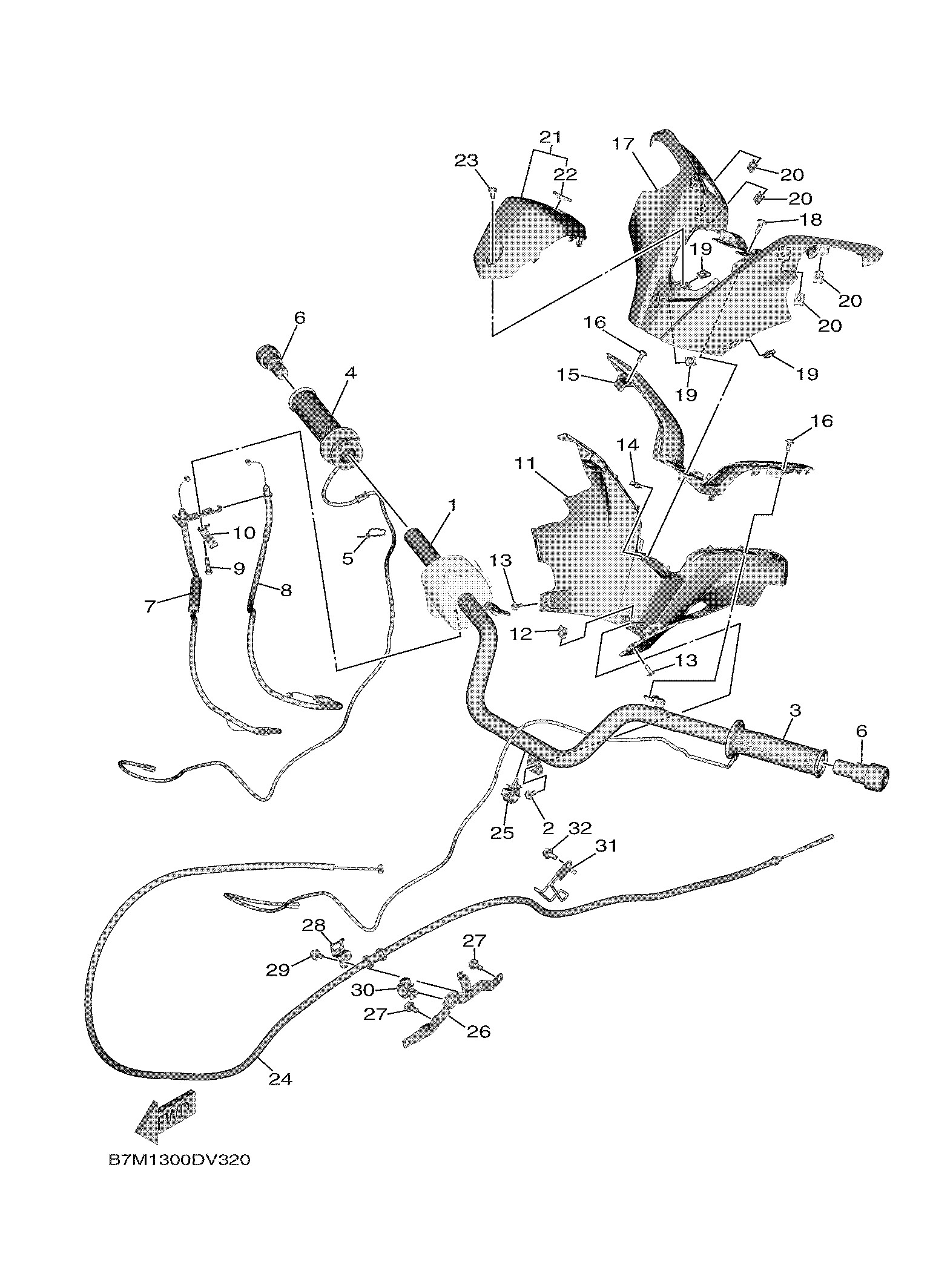

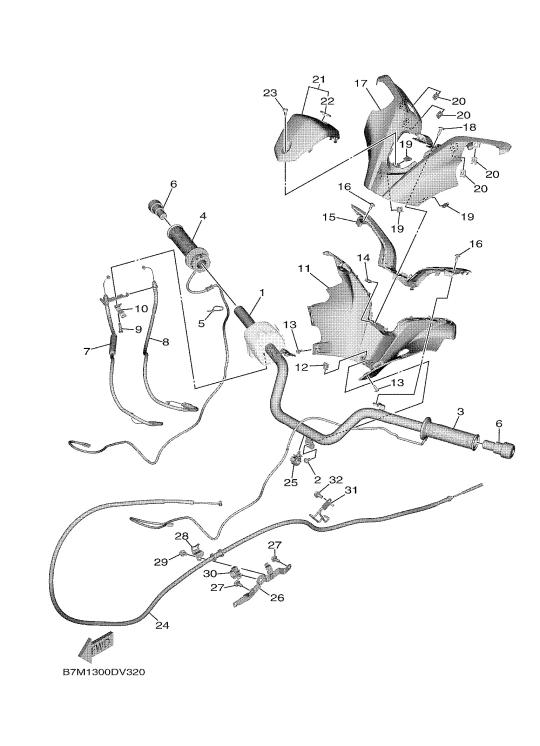

Inicio > Modelos Yamaha > MAXI SCOOTERS > TMAX 560 TECH > 2020 > Steering handle & cable
Volver al despiece completo

# Ref. unds. Precio/unidad
1 B7M261100000
HANDLE COMP. 		1 176,54 € +
2 901590503200
SCREW, WITH WASHER 		1 0,33 € +
3 BC3829630000
GRIP, WARMER (LEFT) 		1 109,77 € +
4 B7M829600000
GRIP, WARMER 		1 221,98 € +
5 904651009800
CLAMP 		1 0,69 € +
6 BC3262460000
END, GRIP 		1 13,51 € +
7 BC3263110000
CABLE, THROTTLE 1 		1 34,05 € +
8 BC3263120000
CABLE, THROTTLE 2 		1 34,05 € +
9 985170502000
SCREW, PAN HEAD 		1 0,49 € +
10 BC3823610000
CLAMP, CORD 		1 11,79 € +
11 BC3261450000
COVER, HANDLE UPPER 2 		1 57,78 € +
12 901830507600
NUT, SPRING 		1 1,88 € +
13 901670507900
SCREW, TAPPING 		1 2,79 € +
14 901830504200
NUT, SPRING 		1 0,49 € +
15 BC326216A000
CAP, HANDLEBAR COVER 		1 54,38 € +
16 901090501200
BOLT 		1 2,89 € +
17 BC3261430000
COVER, HANDLE UPPER 1 		1 57,78 € +
18 901670507600
SCREW, TAPPING 		1 2,69 € +
19 901830504200
NUT, SPRING 		1 0,49 € +
20 901830507600
NUT, SPRING 		1 1,88 € +
21 BC3262170000
CAP, COVER HANDLE 2 		1 40,88 € +
22 8GC2836B0200
.TUNING FORK MARK 		1 32,17 € +
23 901670507900
SCREW, TAPPING 		1 2,79 € +
24 B7M2835X0000
WIRE 		1 51,22 € +
25 904641600600
CLAMP 		1 1,73 € +
26 BC3262790000
GUIDE, CABLE 		1 17,09 € +
27 95D320601200
BOLT, FLANGE DEEP RECESS 		1 1,28 € +
28 4B5261310000
GUIDE, CABLE 1 		1 9,23 € +
29 95D320601000
BOLT, FLANGE DEEP RECESS 		1 0,37 € +
30 904641600600
CLAMP 		1 1,73 € +
31 BC3279820000
BRACKET, WIRE 		1 10,09 € +
32 95D320601200
BOLT, FLANGE DEEP RECESS 		1 1,28 € +
