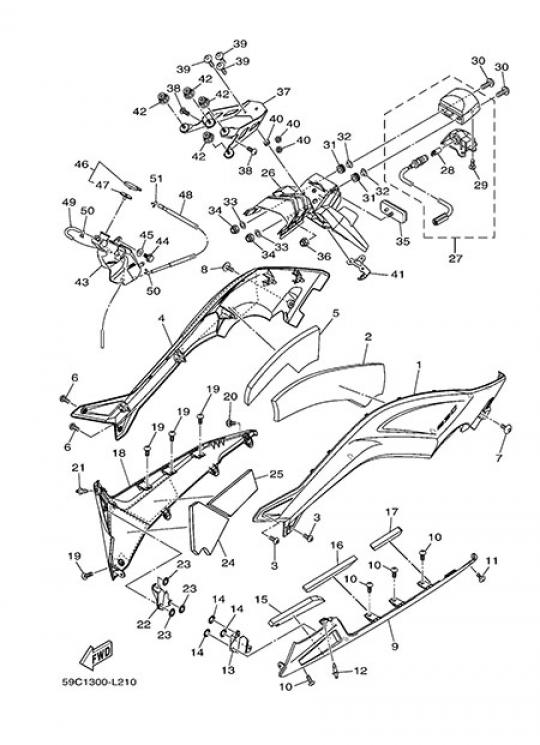

# | Ref. | unds. | Precio/unidad | |
---|---|---|---|---|
1 |
59C2173100P0 CUBIERTA LATERAL |
1 | 154,59 € | + |
1 |
59C2173100P1 CUBIERTA LATERAL |
1 | 154,59 € | + |
2 |
59C217780000 AMORTIGUADOR DE MONTAJE |
1 | 11,42 € | + |
3 |
920140601400 PERNO |
1 | 0,75 € | + |
4 |
59C2174100P0 CUBIERTA LATERAL 4 |
1 | 154,59 € | + |
4 |
59C2174100P1 CUBIERTA LATERAL 4 |
1 | 154,59 € | + |
5 |
59C217781000 AMORTIGUADOR DE MONTAJE |
1 | 11,42 € | + |
6 |
920140601400 PERNO |
1 | 0,75 € | + |
7 |
901100620000 BOLT, HEXAGON SOCKET HEAD |
1 | 2,79 € | + |
8 |
901100620000 BOLT, HEXAGON SOCKET HEAD |
1 | 2,79 € | + |
9 |
59C2171L00P6 MUELLE , CUBIERTA LATERAL 1 |
1 | 103,39 € | + |
9 |
59C2171L00P1 MUELLE , CUBIERTA LATERAL 1 |
1 | 103,39 € | + |
9 |
59C2171L00P2 MUELLE , CUBIERTA LATERAL 1 |
1 | 103,39 € | + |
10 |
901670507600 SCREW, TAPPING |
1 | 2,69 € | + |
11 |
901110504500 BOLT,HEX. SOCKET BUTTON |
1 | 1,88 € | + |
12 |
902690600800 RIVET |
1 | 1,01 € | + |
13 |
59C2178L0000 GUIA 1 |
1 | 3,60 € | + |
14 |
9018305M0200 NUT, SPRING |
1 | 0,49 € | + |
15 |
59C217460000 AMORTIGUADOR |
1 | 5,48 € | + |
16 |
59C2177M0000 AMORTIGUADOR, DE UBICACION 3 |
1 | 5,36 € | + |
17 |
59C218520000 AMORTIGUADOR |
1 | 3,38 € | + |
18 |
59C2171M00P2 MUELLE, CUBIERTA LATERAL 2 |
1 | 103,39 € | + |
18 |
59C2171M00P1 MUELLE, CUBIERTA LATERAL 2 |
1 | 103,39 € | + |
18 |
59C2171M00P6 MUELLE, CUBIERTA LATERAL 2 |
1 | 103,39 € | + |
19 |
901670507600 SCREW, TAPPING |
1 | 2,69 € | + |
20 |
901110504500 BOLT,HEX. SOCKET BUTTON |
1 | 1,88 € | + |
21 |
902690600800 RIVET |
1 | 1,01 € | + |
22 |
59C2178M0000 recambio |
1 | 3,53 € | + |
23 |
9018305M0200 NUT, SPRING |
1 | 0,49 € | + |
24 |
59C217461000 AMORTIGUADOR |
1 | 5,48 € | + |
25 |
59C2177M1000 AMORTIGUADOR, DE UBICACION 3 |
1 | 5,36 € | + |
26 |
59C216290000 GUARDABARRO INFERIOR |
1 | 66,52 € | + |
27 |
59C847450000 UNIDAD DE LUZ DE LICENCIA COMP |
1 | 47,05 € | + |
28 |
4HC847440000 BOMBILLA |
1 | 1,24 € | + |
29 |
977074061200 TRAVESANO |
1 | 0,55 € | + |
30 |
989020502000 TORNILLO DE AJUSTE |
1 | 0,37 € | + |
31 |
904801100900 GROMMET |
1 | 3,48 € | + |
32 |
903870500300 COLLAR |
1 | 3,38 € | + |
33 |
929070520000 ARANDELA |
1 | 0,33 € | + |
34 |
956020510000 NUT, U |
1 | 3,33 € | + |
35 |
3Y6851300200 REAR REFLECTOR ASSY |
1 | 18,08 € | + |
36 |
956070520000 NUT, S/L FLANGE |
1 | 1,97 € | + |
37 |
59C216400000 SOPORTE TRASERO COMPLETO |
1 | 127,60 € | + |
38 |
901670507600 SCREW, TAPPING |
1 | 2,69 € | + |
39 |
901110606100 TORNILLO |
1 | 1,13 € | + |
40 |
90387061Y100 ARANDELA PLANA |
1 | 3,48 € | + |
41 |
59C2161G0000 recambio |
1 | 13,20 € | + |
42 |
956020620000 NUT, SELF-LOCKING |
1 | 1,24 € | + |
43 |
59C218710000 TANQUE DE RECUPERACION |
1 | 58,40 € | + |
44 |
958220601400 BOLT, FLANGE |
1 | 0,75 € | + |
45 |
903870617000 CASQUILLO CON VALONA |
1 | 2,69 € | + |
46 |
1AA218150000 CAP |
1 | 11,92 € | + |
47 |
1AA218740000 .GASKET |
1 | 2,05 € | + |
48 |
59C218160000 TUBO 1 |
1 | 48,16 € | + |
49 |
904450903900 TUBO |
1 | 5,48 € | + |
50 |
90467090A200 CLIP |
1 | 0,59 € | + |
51 |
90467100A100 CLIP |
1 | 0,49 € | + |
