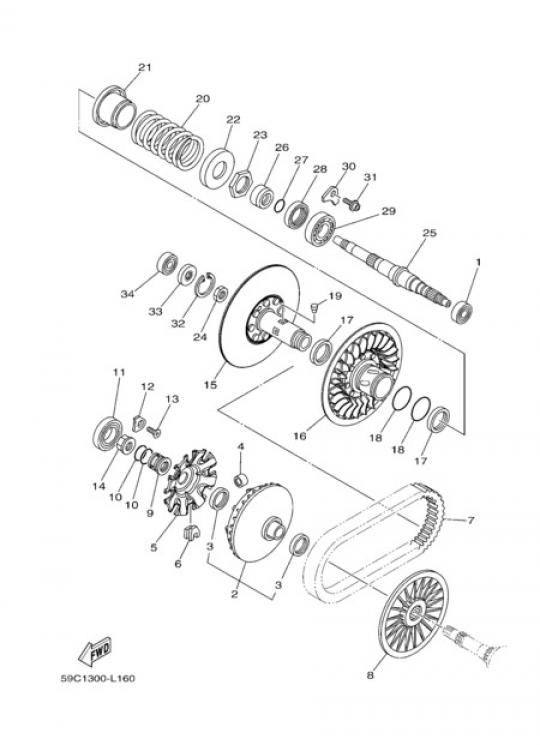

Inicio > Modelos Yamaha > MAXI SCOOTERS > T-Max 530 > 2012 > Embrague 2
Volver al despiece completo

# Ref. unds. Precio/unidad
1 933063010200
BEARING 		1 12,13 € +
2 59CW17600000
recambio 		1 284,21 € +
3 931013500100
.OIL SEAL 		1 10,93 € +
4 5RU176322000
WEIGHT 		1 5,85 € +
5 59C176230000
LEVA 		1 60,34 € +
6 59C176530000
SLIDER 		1 6,89 € +
7 59C176410000
CORREA EN V 		1 159,60 € +
8 59C176110000
SHEAVE, PRIMARY FIXED 		1 99,82 € +
9 59C176490000
ESPACIADOR 		1 47,79 € +
10 932103061100
O-RING 		1 8,74 € +
11 933060071300
BEARING 		1 51,31 € +
12 4XM153830000
PLATE, BEARING COVER 		1 12,43 € +
13 901510602400
SCREW, COUNTERSUNK 		1 0,37 € +
14 901792001300
NUT 		1 18,41 € +
15 59C176600000
SECONDARY FIXED SHEAVE COMP. 		1 408,13 € +
16 59C176700000
SECONDARY SLIDING SHEAVE 		1 272,20 € +
17 931044111900
OIL SEAL 		1 9,82 € +
18 932104454500
O-RING 		1 11,06 € +
19 4CW176640000
PIN, GUIDE 		1 1,88 € +
20 90501620A000
SPRING, COMPRESSION 		1 37,97 € +
21 5GJ176900000
SPRING SEAT COMP. 		1 45,64 € +
22 4WV176440000
SEAT,SPRING 		1 20,23 € +
23 901703627900
NUT 		1 7,72 € +
24 901701822100
NUT 		1 5,80 € +
25 5VU176810000
SHAFT, SECONDARY 		1 212,39 € +
26 903872600100
COLLAR 		1 33,53 € +
27 932102600100
O-RING 		1 7,13 € +
28 931024200400
OIL SEAL 		1 11,52 € +
29 933062065100
BEARING 		1 53,80 € +
30 5GJ153830000
PLATE, BEARING COVER 		1 9,38 € +
31 901100603600
BOLT, HEXAGON SOCKET HEAD 		1 1,06 € +
32 990094250000
CIRCLIP 		1 5,75 € +
33 931021500400
OIL SEAL 		1 5,80 € +
34 933063021700
BEARING 		1 21,01 € +
