Inicio > Modelos Yamaha > MAXI SCOOTERS > T-Max 530 > 2016 > Embrague 2

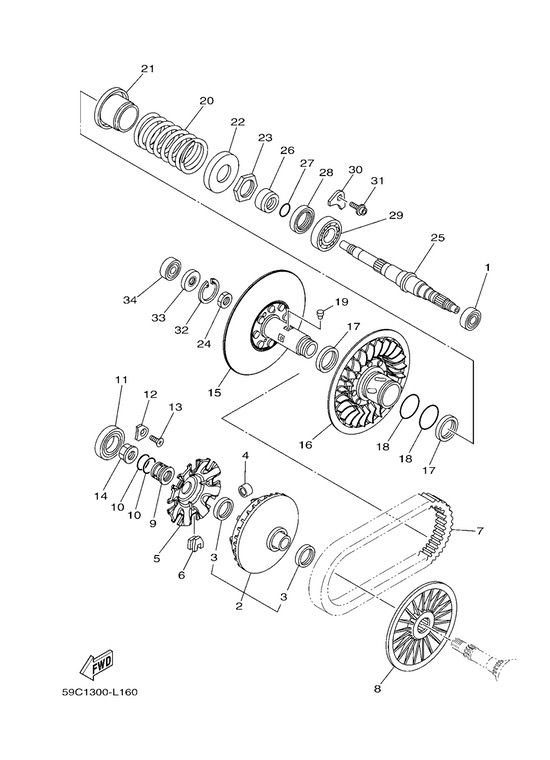

Volver al despiece completo

# Ref. unds. Precio/unidad
1 933063010200
BEARING 		1 12,13 € +
2 59CW17600000
recambio 		1 288,56 € +
3 931013500100
.OIL SEAL 		1 10,94 € +
4 5RU176322000
WEIGHT 		1 5,85 € +
5 59C176230000
LEVA 		1 61,26 € +
6 59C176530000
SLIDER 		1 6,99 € +
7 59C176410000
CORREA EN V 		1 156,56 € +
8 59C176110000
SHEAVE, PRIMARY FIXED 		1 101,35 € +
9 59C176490000
ESPACIADOR 		1 48,51 € +
10 932103061100
O-RING 		1 8,75 € +
11 933060071300
BEARING 		1 51,35 € +
12 4XM153830000
PLATE, BEARING COVER 		1 12,62 € +
13 901510602300
SCREW, COUNTERSUNK 		1 0,37 € +
14 901792001300
NUT 		1 18,68 € +
15 59C176600000
SECONDARY FIXED SHEAVE COMP. 		1 414,36 € +
16 59C176700000
SECONDARY SLIDING SHEAVE 		1 276,36 € +
17 931044111900
OIL SEAL 		1 9,83 € +
18 932104454500
O-RING 		1 11,06 € +
19 4CW176640000
PIN, GUIDE 		1 1,91 € +
20 90501620A000
SPRING, COMPRESSION 		1 38,55 € +
21 5GJ176900000
SPRING SEAT COMP. 		1 46,34 € +
22 4WV176440000
SEAT,SPRING 		1 20,54 € +
23 901703627900
NUT 		1 12,09 € +
24 901701822100
NUT 		1 5,88 € +
25 5VU176810000
SHAFT, SECONDARY 		1 215,64 € +
26 903872600100
COLLAR 		1 34,04 € +
27 932102600100
O-RING 		1 7,24 € +
28 931024200400
OIL SEAL 		1 11,53 € +
29 933062065100
BEARING 		1 53,83 € +
30 5GJ153830000
PLATE, BEARING COVER 		1 9,52 € +
31 901100603700
TORNILLO ALLEN 		1 1,08 € +
32 990094250000
CIRCLIP 		1 5,84 € +
33 931021500400
OIL SEAL 		1 5,88 € +
34 933063021700
BEARING 		1 21,33 € +
