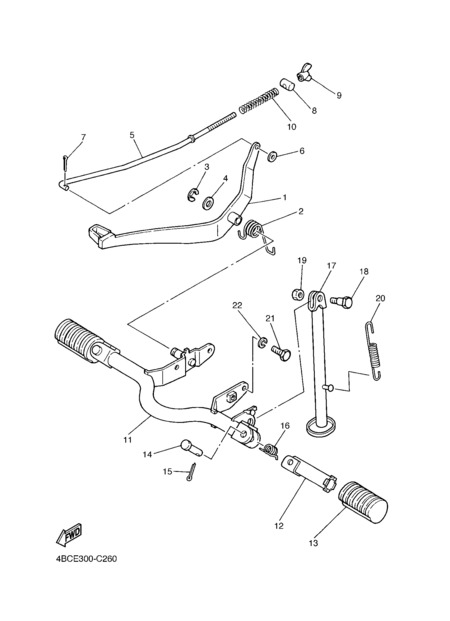

STAND & FOOTREST

Volver al despiece completo

#	Ref.	unds.	Precio/unidad
1	21W272110000 PEDAL DE FRENO	1	33,22 €	+
2	905082957800 RESORTE DE TORSION	1	5,10 €	+
3	990010960000 CIRCLIP	1	1,97 €	+
4	929071260000 WASHER, PLATE	1	0,49 €	+
5	21W272310000 VARILLA DE FRENO	1	10,73 €	+
6	929070660000 WASHER, PLATE	1	0,49 €	+
7	914012001200 PIN, COTTER	1	1,78 €	+
8	902491200800 PIN	1	3,43 €	+
9	901750601300 NUT, WING	1	1,24 €	+
10	905011024500 SPRING, COMPRESSION	1	2,47 €	+
11	21W274110133 APOYAPIE 1	1	27,54 €	+
12	214274210000 FOOTREST 2	1	18,54 €	+
13	214274130000 CUBIERTA DE APOYAPIE	1	20,93 €	+
14	902400808400 PIN, CLEVIS	1	4,77 €	+
15	914012501500 PIN, COTTER	1	1,19 €	+
16	905082002300 SPRING, TORSION	1	3,33 €	+
18	901090866600 PERNO	1	1,73 €	+
19	953070870000 NUT	1	1,19 €	+
20	905062810000 RESORTE DE TENSION	1	8,96 €	+
21	970270802000 TORNILLO	1	1,24 €	+
22	929070810000 WASHER, SPRING	1	0,42 €	+
